Daikin ZH5LMGU [48/58] Jig 3 temporary bearing holder mounting plate jig for zh7_ material ss400
![Daikin ZH5LMGU [48/58] Jig 3 temporary bearing holder mounting plate jig for zh7_ material ss400](/views2/1663037/page48/bg30.png)
Si50-402 Required Tools
Semi-Hermetic Single Screw Compressor Version IV 47

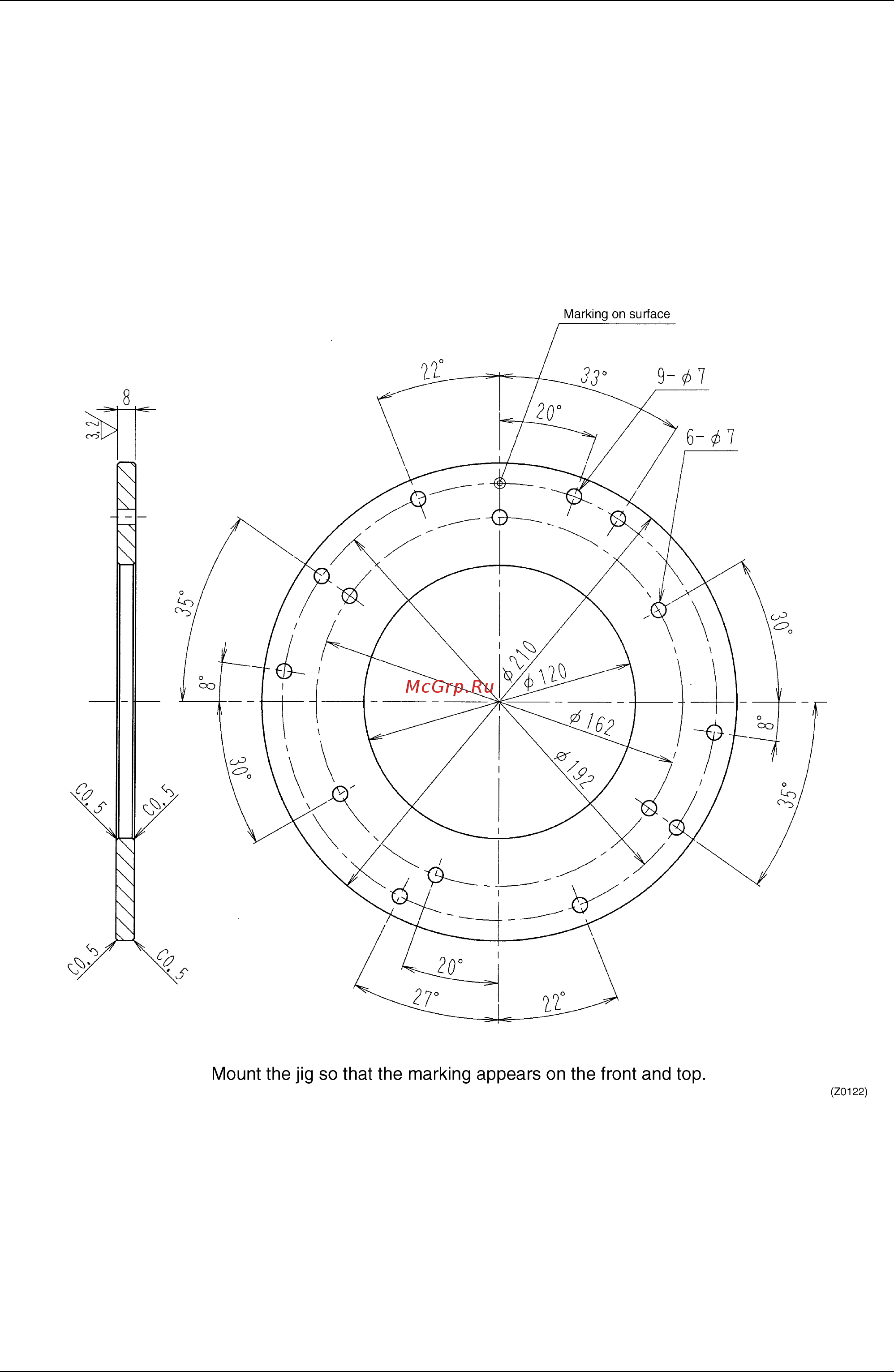

Jig (3) Temporary Bearing Holder Mounting Plate [jig]
[For ZH7_] Material: SS400
