Daikin ZH5LMGU [53/58] Jig 5 oil filter removing jig for zh3_f
![Daikin ZH5LMGU [53/58] Jig 5 oil filter removing jig for zh3_f](/views2/1663037/page53/bg35.png)
Required Tools Si50-402
52 Semi-Hermetic Single Screw Compressor Version IV

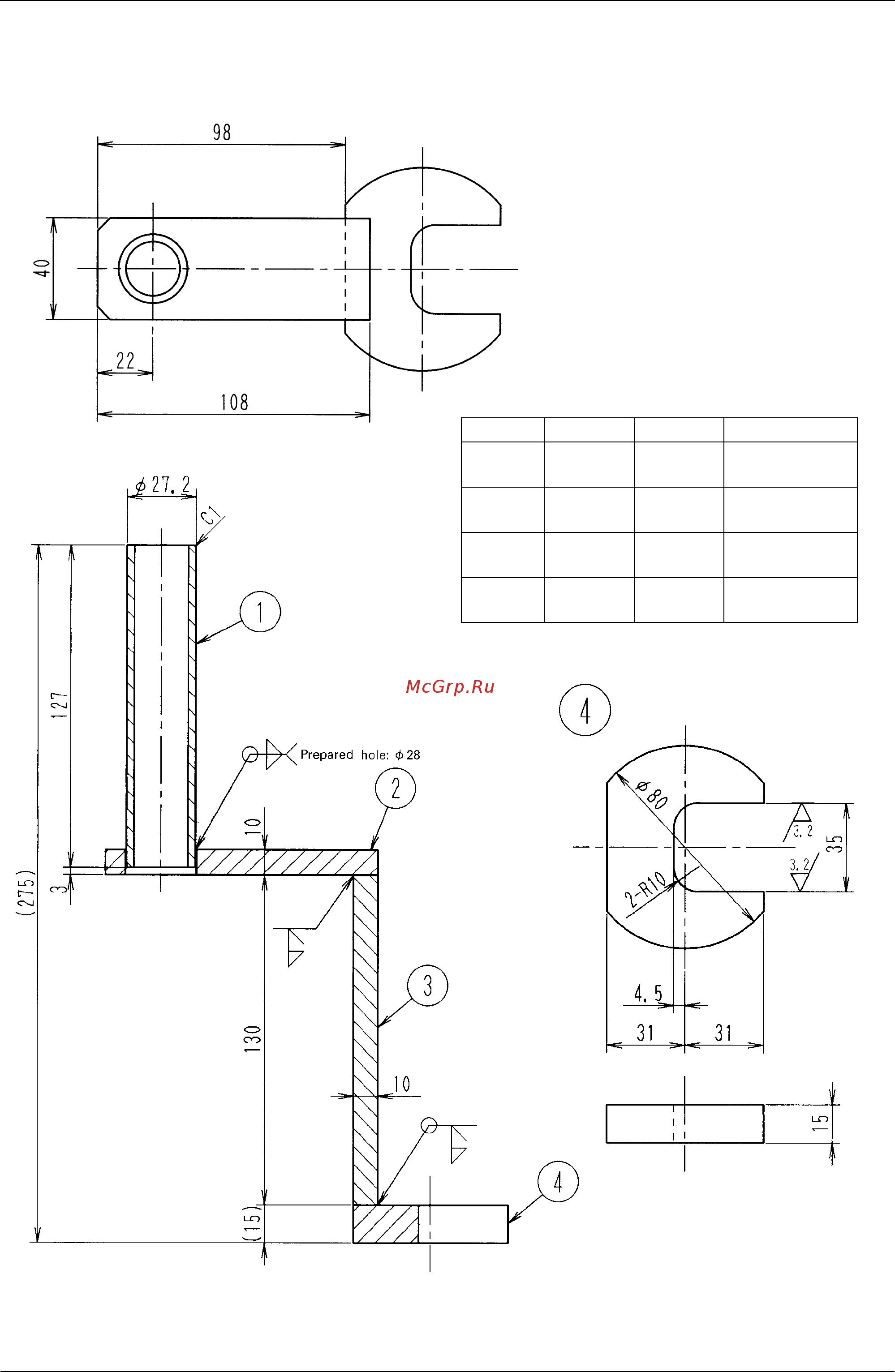

Jig (5) [Oil Filter Removing Jig]
[For ZH3_F]
Parts No.
Name
Handle
Stay (1)
Stay (2)
Spanner
Material
STPG370E
SS400 or
SM400A
SS400 or
SM400A
SS400 or
SM400A
Remarks
20A, sch40
(t2. 9)
(Z0127)
