Si50-402 Required Tools
Semi-Hermetic Single Screw Compressor Version IV 49

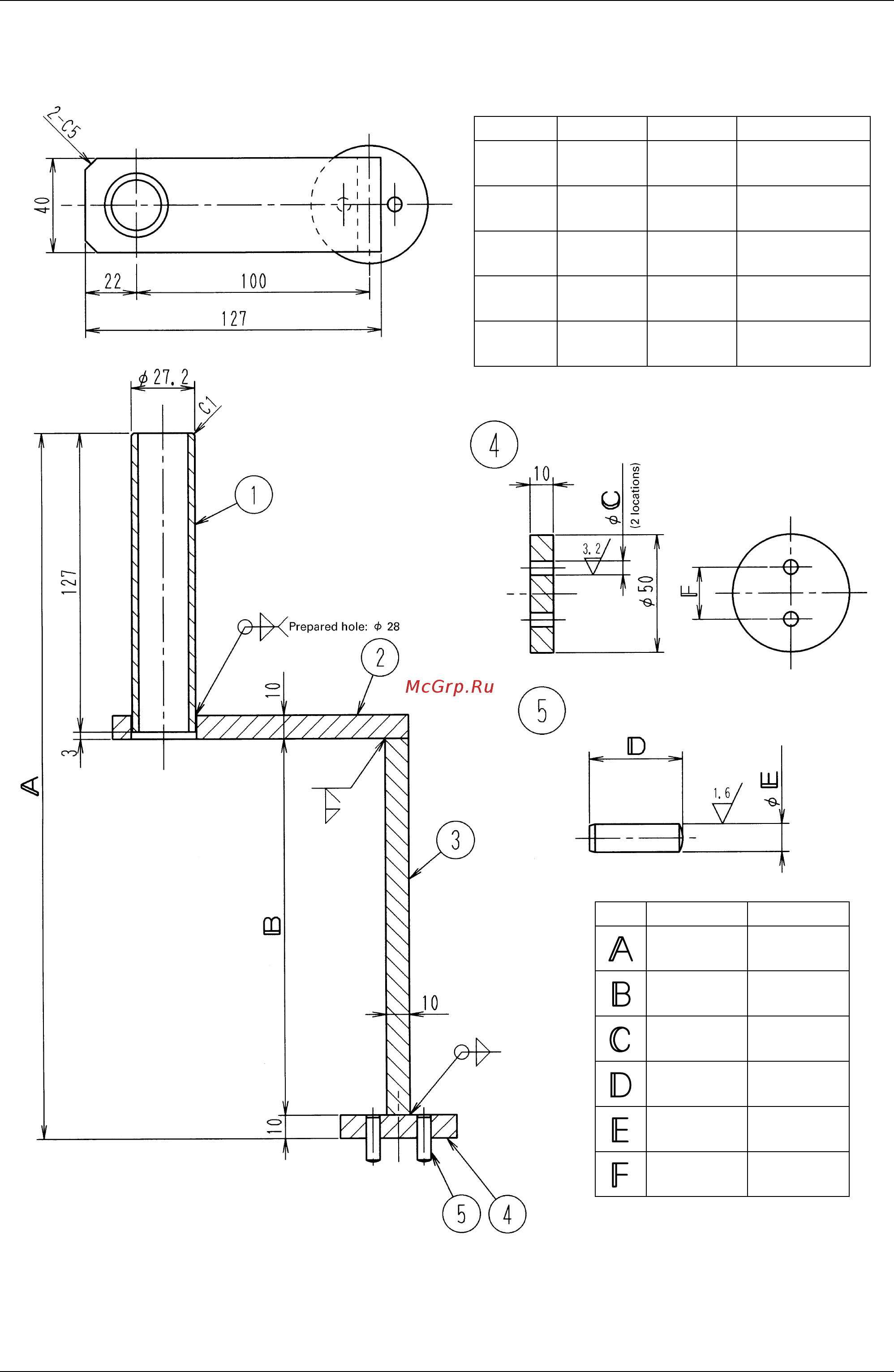

Jig (4)-1 [Handle Jig Set]
Parts No.
Name
Handle
Stay (1)
Stay (2)
Disc
Straight pin
Material
STPG370E
SS400 or
SM400A
SS400 or
SM400A
SS400 or
SM400A
S45C
Remarks
20A, sch40
(t2. 9)
JIS B1354
Class A or equivalent
ZH3_F
300
160
6
20
6
22
ZH5_F
325
185
8
24
8
28
+0.012
0
+0.012
+0.004
+0.015
0
+0.015
+0.006
(Z0124)
