Overhaul Instructions Si50-402
28 Semi-Hermetic Single Screw Compressor Version IV
4.5 Final Assembly
Caution
!
Clean the casing and all other parts, and dry them thoroughly.
!
Use new packings and O-rings.
1. Assembling The Screw Shaft and Main Bearing Holder
Install screw adjusting shims (2) and the main bearing holder on the screw shaft, and install
the screw bearing retainer plate. Tighten the two bearing retainer plate mounting bolts
evenly.
Adjust clearance
δ
between 0.03 and 0.05 mm(except ZH9), 0.04~0.06mm(ZH9 only), as
shown below. (Minimum clearance on periphery)

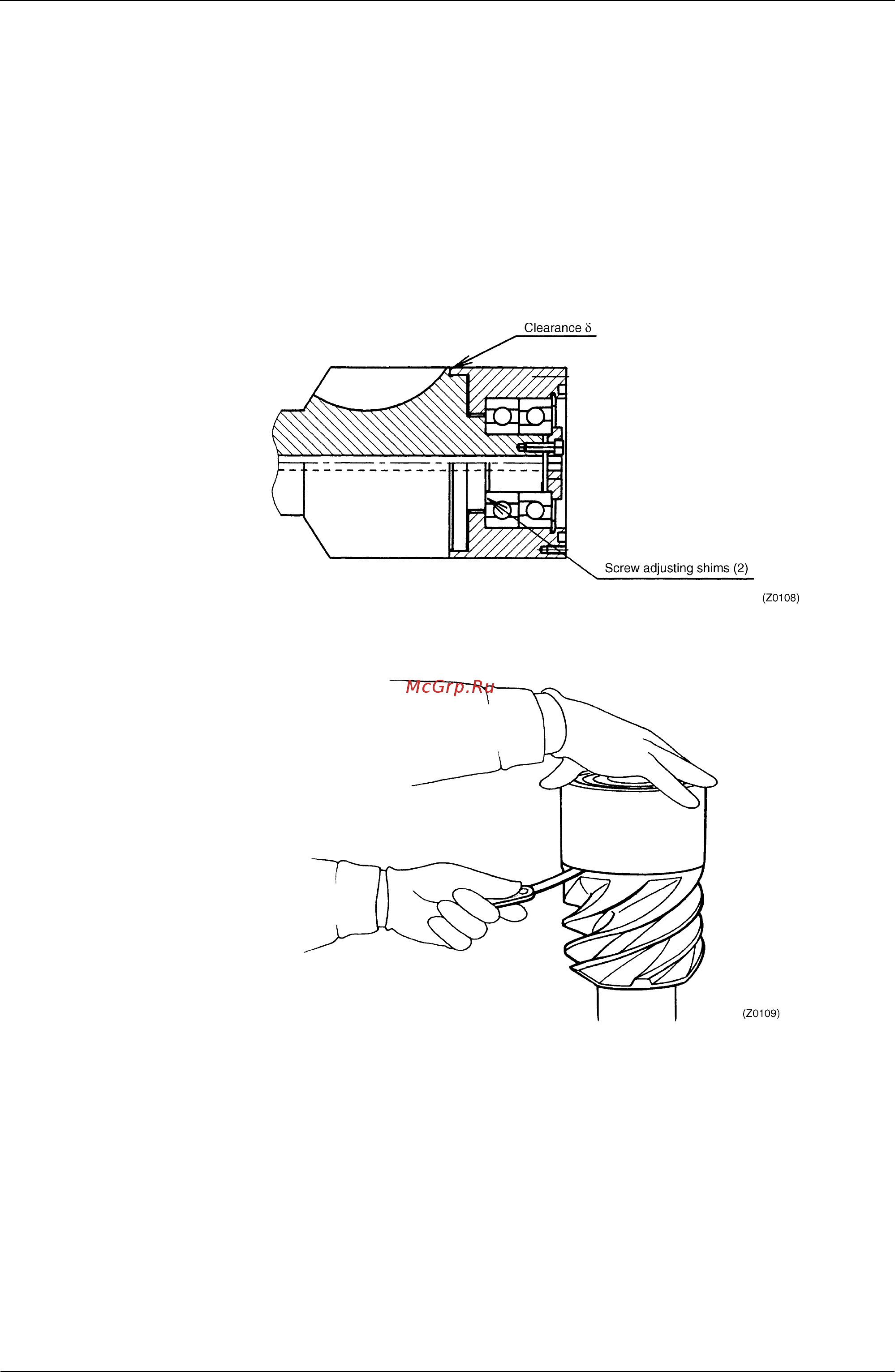

Fig. 4-32 Adjusting clearance between screw rotor and main bearing holder
