Overhaul Instructions Si50-402

24 Semi-Hermetic Single Screw Compressor Version IV

 Removing the bearing

From the opposite side of the end with the C-type retainer ring, remove the outer ring of

the bearing by placing a bronze rod and hammering it. Since the outer ring is not

pressed in deeply, it can be removed easily.

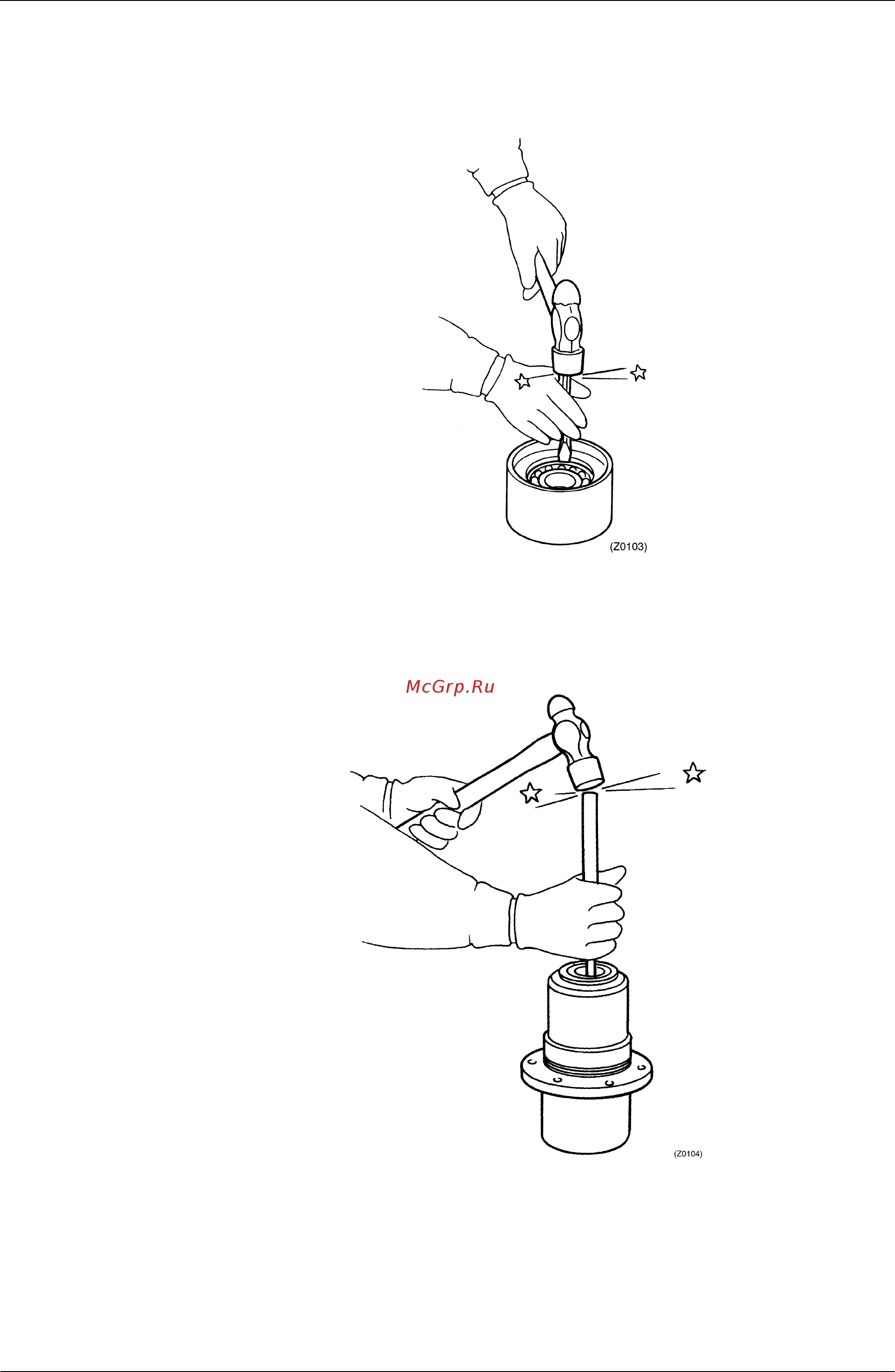

Fig. 4-24 Removing main bearing holder bearing

2. Gate Rotor Bearings (Angular-Contact Ball Bearing, Deep Groove Ball Bearing)

Remove the angular-contact ball bearing and deep groove ball bearing from the lower

bearing holder by using a bronze rod and hammer.

Fig. 4-25 Removing lower bearing holder bearing
