Overhaul Instructions Si50-402
30 Semi-Hermetic Single Screw Compressor Version IV
5. Installing The Suction End Cover
(1) Install the suction end cover. In this step, use the two positioning pins to position the suction
end cover. (Use guide bolts.)
(2) Insert the screw shaft into the bearing of the suction end cover.
The holding section of the cylindrical roller bearing is made of plastic. Since the retainer can
easily break if a shock is given to it, be careful to insert it.

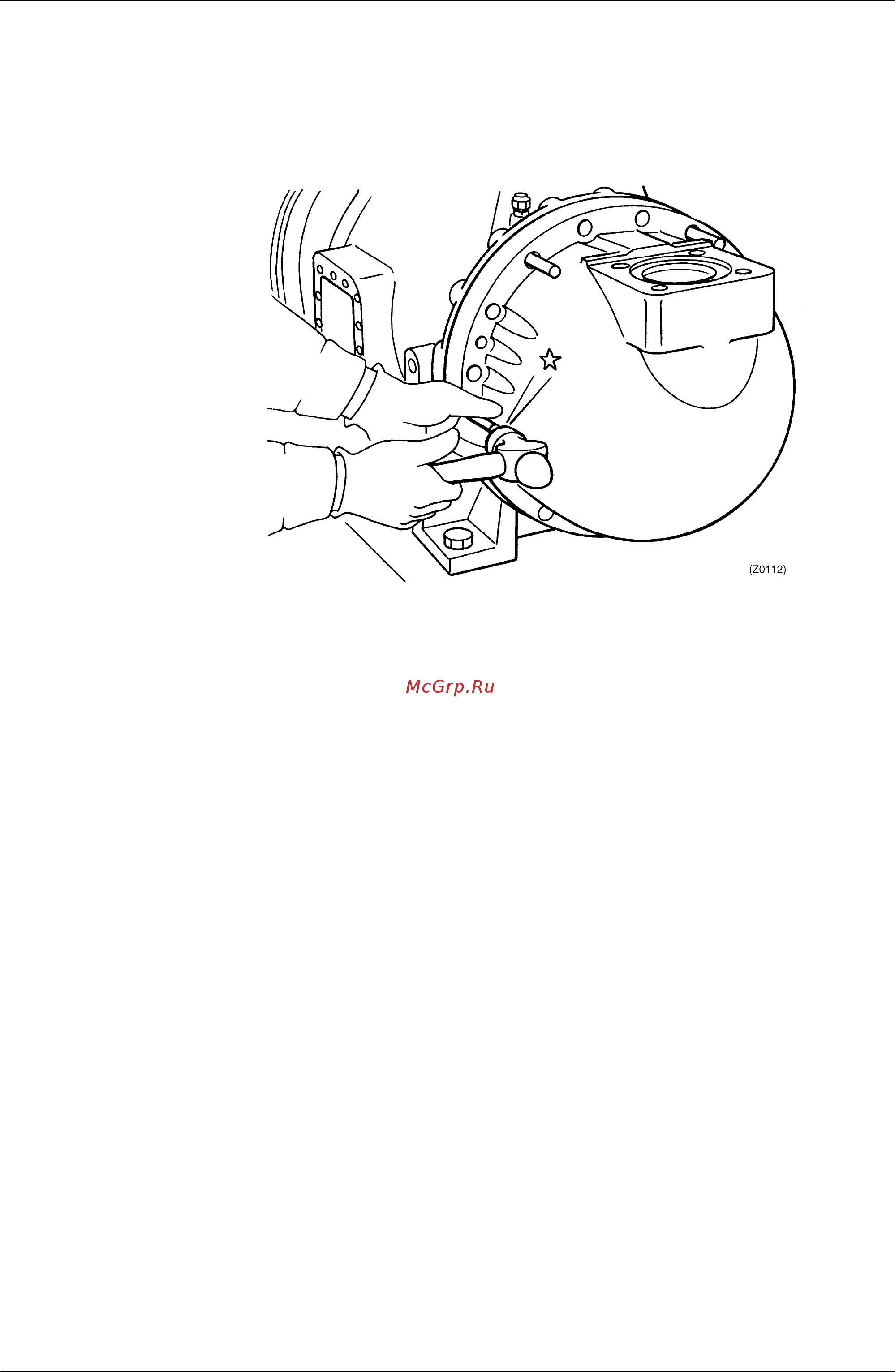

Fig. 4-35 Installing suction end cover
(3) Rotate the screw rotor to make sure it moves smoothly.
