Si50-402 Overhaul Instructions

Semi-Hermetic Single Screw Compressor Version IV 33

(1) Before installing the discharge end cover, check to be sure the joint (arm) of the drive shaft

and the pilot valve is located above the drive shaft.

(2) Install the lever (dedicated jig (6)) to the end face of the drive shaft (outside of the discharge

end cover) with a M8 hexagon head bolt, in the same direction as that of the arm. (See Fig.

4-39.)

(3) Insert the first demister in the fixing plate of the main bearing holder, and then, while

inserting the pilot valve in the piston, install the discharge end cover. (If the arm is located

below the drive shaft, the pilot valve will be damaged when conducting the next step 9).

Therefore, pay attention to this point.)

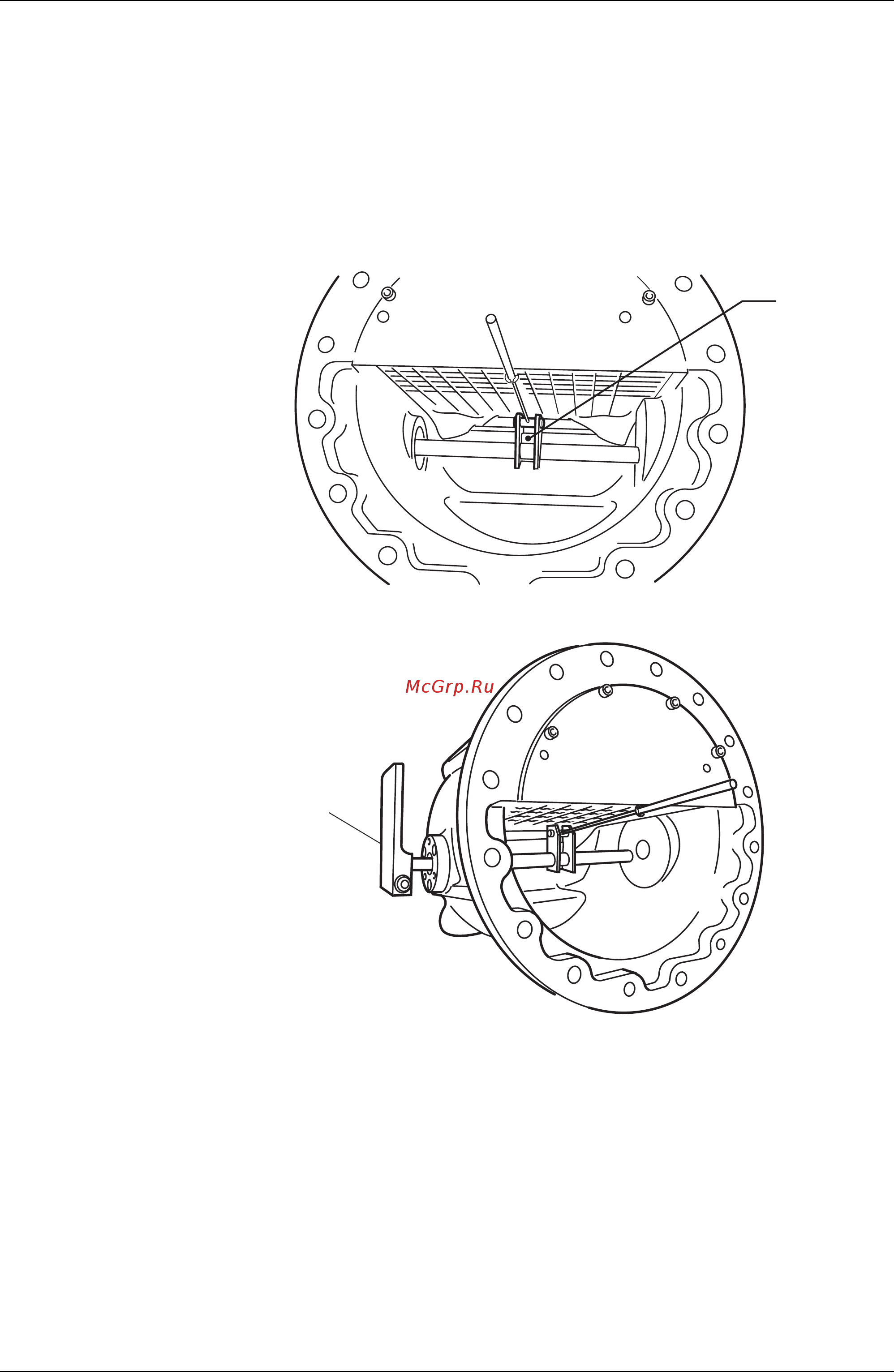

Fig. 4-38 Arm position

Fig. 4-39 Installing lever

Arm

Lever
