- 21 -
Hardware Installation

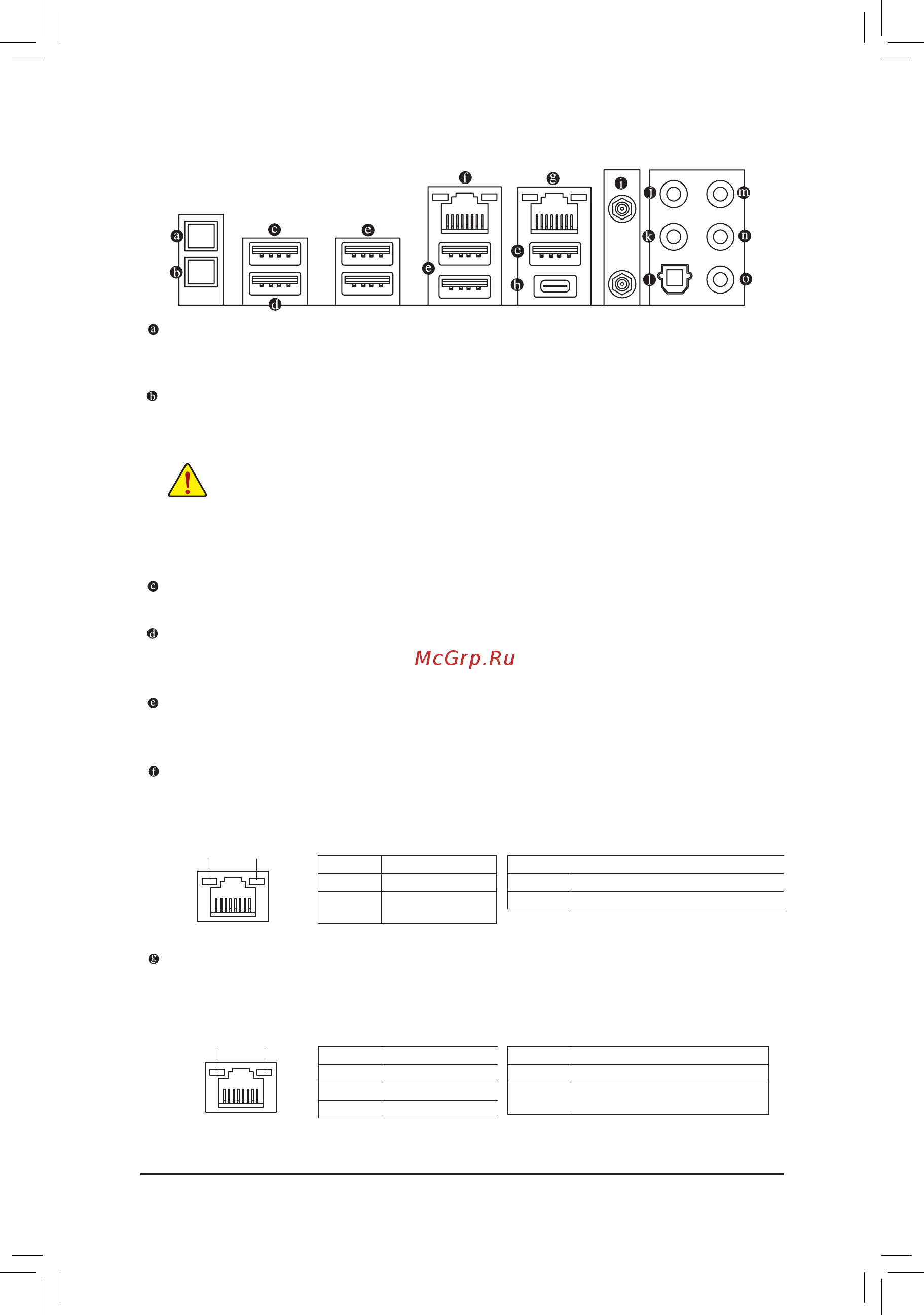

1-7 Back Panel Connectors
Q-Flash Plus Button
(Note)
This button allows you to update the BIOS when the power connector is connected but the system is not
powered on.
Clear CMOS Button
UsethisbuttontocleartheCMOSvalues(e.g.BIOSconguration)andresettheCMOSvaluestofactory
defaults when needed.
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.
USB 2.0/1.1 Port (Q-Flash Plus Port)
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.Usethisportfor
USB devices. Before using Q-Flash Plus
(Note)
,makesuretoinserttheUSBashdriveintothisportrst.
USB 3.2 Gen 2 Type-A Port (Red)
TheUSB3.2Gen2Type-AportsupportstheUSB3.2Gen2specicationandiscompatibletotheUSB
3.2Gen1andUSB2.0specication.UsethisportforUSBdevices.
RJ-45 LAN Port (5GLAN)
The Gigabit Ethernet LAN port provides Internet connection at up to 5 Gbps data rate. The following
describes the states of the LAN port LEDs.
RJ-45 LAN Port (LAN)
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
• Always turn off your computer and unplug the power cord from the power outlet before using
the clear CMOS button.
• Do not use the clear CMOS button when the system is on, or the system may shutdown and
data loss or damage may occur.
• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or
manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).
Speed LED
Connection/
Activity LED
LAN Port
Speed LED:
State Description
Green 5 Gbps data rate
Orange 2.5 Gbps/ 1 Gbps/
100 Mbps data rate
Connection/Activity LED:
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is
occurring
(Note) To enable Q-Flash Plus function, refer to Chapter 5, "Unique Features," for more information.
