BIOS Setup

- 42 -

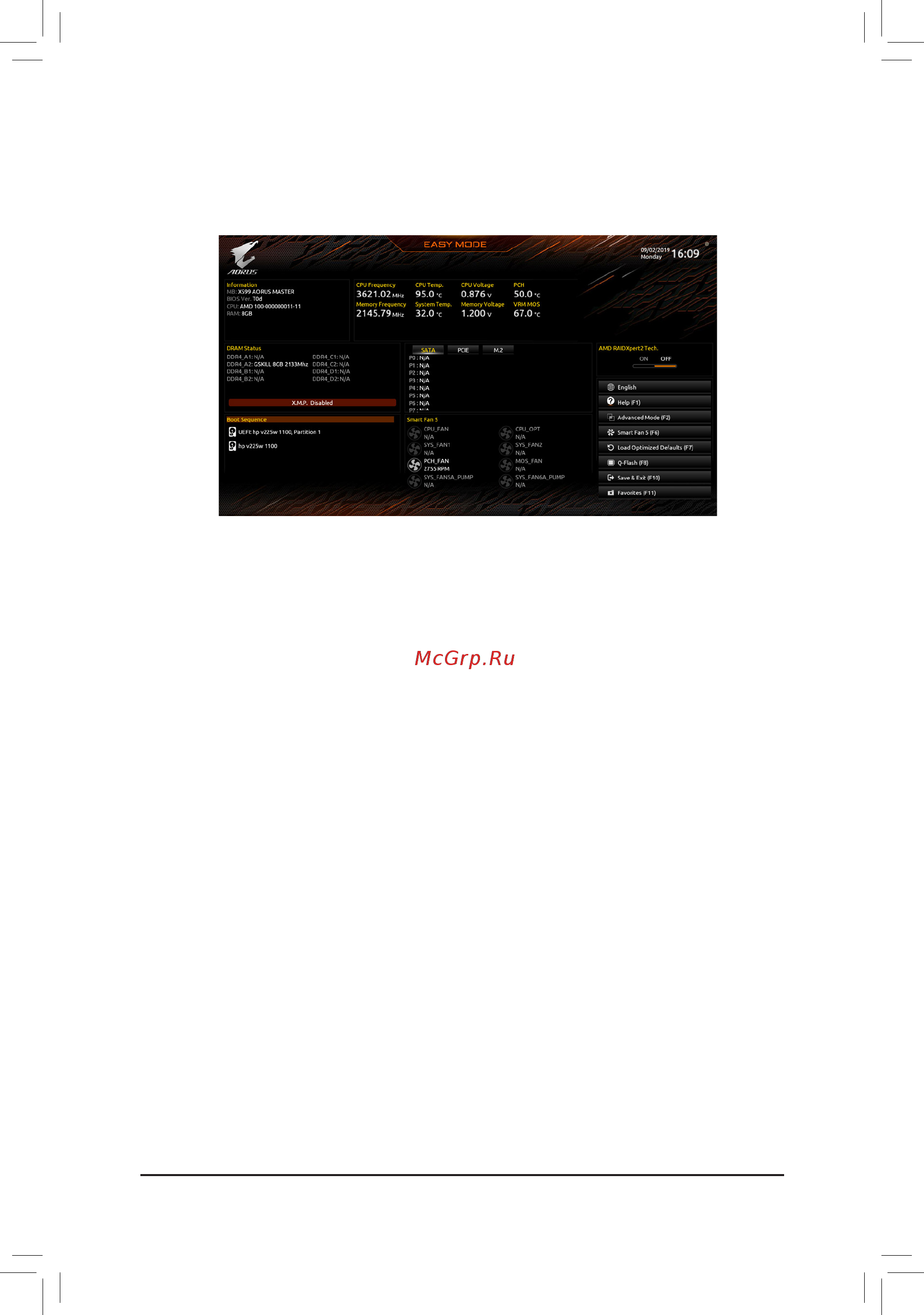

B. Easy Mode

Easy Mode allows users to quickly view their current system information or to make adjustments for optimum

performance.InEasyMode,youcanuseyourmousetomovethroughcongurationitemsorpress<F2>to

switch to the Advanced Mode screen.
