Conguring a RAID Set

The BIOS Setup menus described in this section may differ from the exact settings for your motherboard.

The actual BIOS Setup menu options you will see shall depend on the motherboard you have and

the BIOS version.

B.ConguringSATAcontrollermodeinBIOSSetup

MakesuretoconguretheSATAcontrollermodecorrectlyinsystemBIOSSetup.

Step:

Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). Under

Settings\IO Ports, set SATAConguration\SATAMode to RAID (Figure 1). Then save the settings and restart

yourcomputer.(IfyouwanttouseNVMePCIeSSDstocongureRAID,makesuretosetNVMe RAID mode to

Enabled. Then set how the bandwidth of the PCIe slot you use is divided. Save the changes and exit BIOS Setup. )

C.UEFIRAIDConguration

Step 1:

In BIOS Setup, go to Boot and set CSM Support to Disabled (Figure 2). Save the changes and exit BIOS Setup.

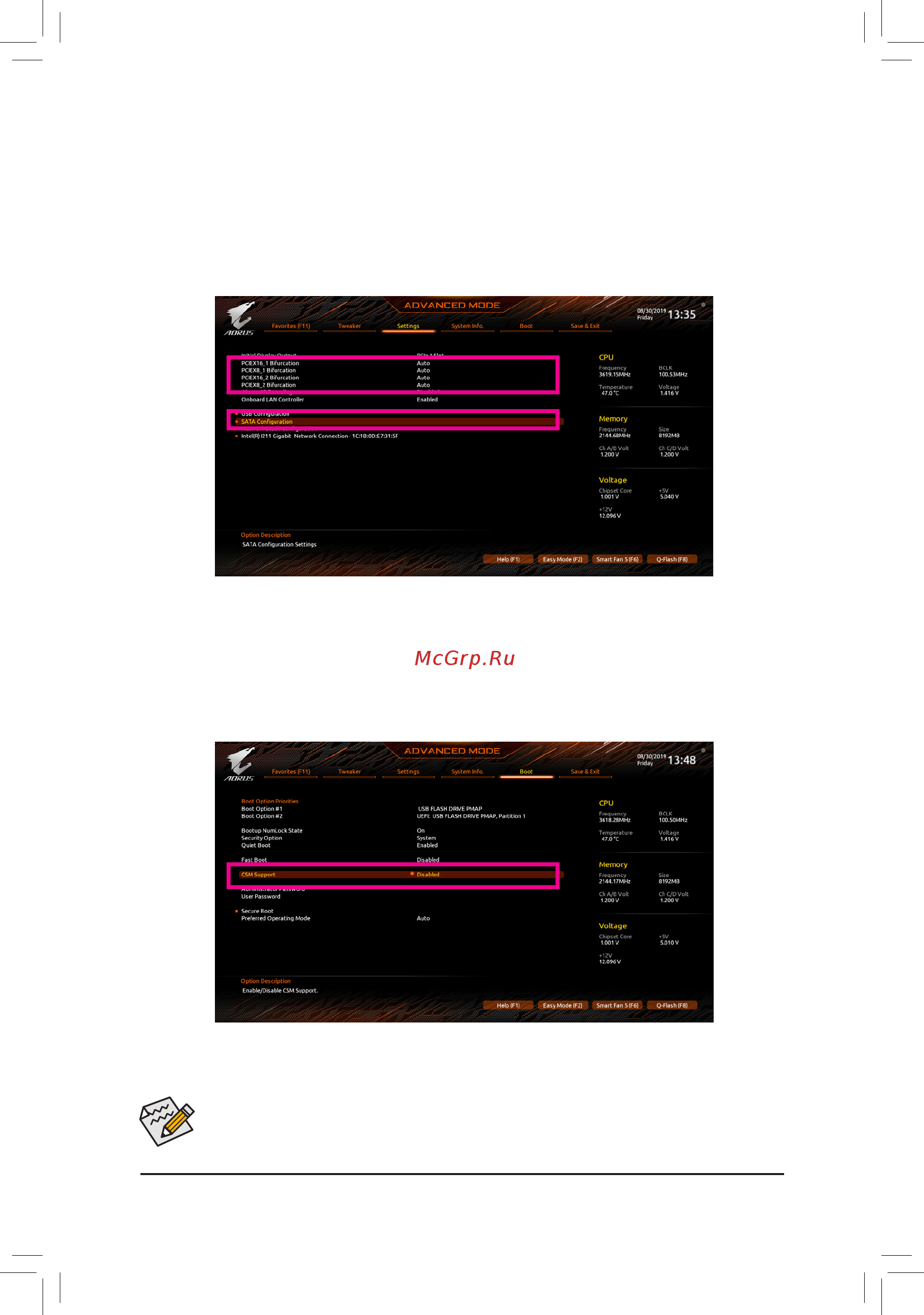

Figure 1

Figure 2
