Unique Features
- 86 -
5-2-8 USB TurboCharger
GIGABYTE USB TurboCharger supports the quick charging technologies
(Note 1)
of Apple's and Android
™
QC 3.0's smart phones/tablet devices. It allows you to quick-charge your device(s) connected to the front
USB 3.2 Gen 1 type A port(s) with the required mode.

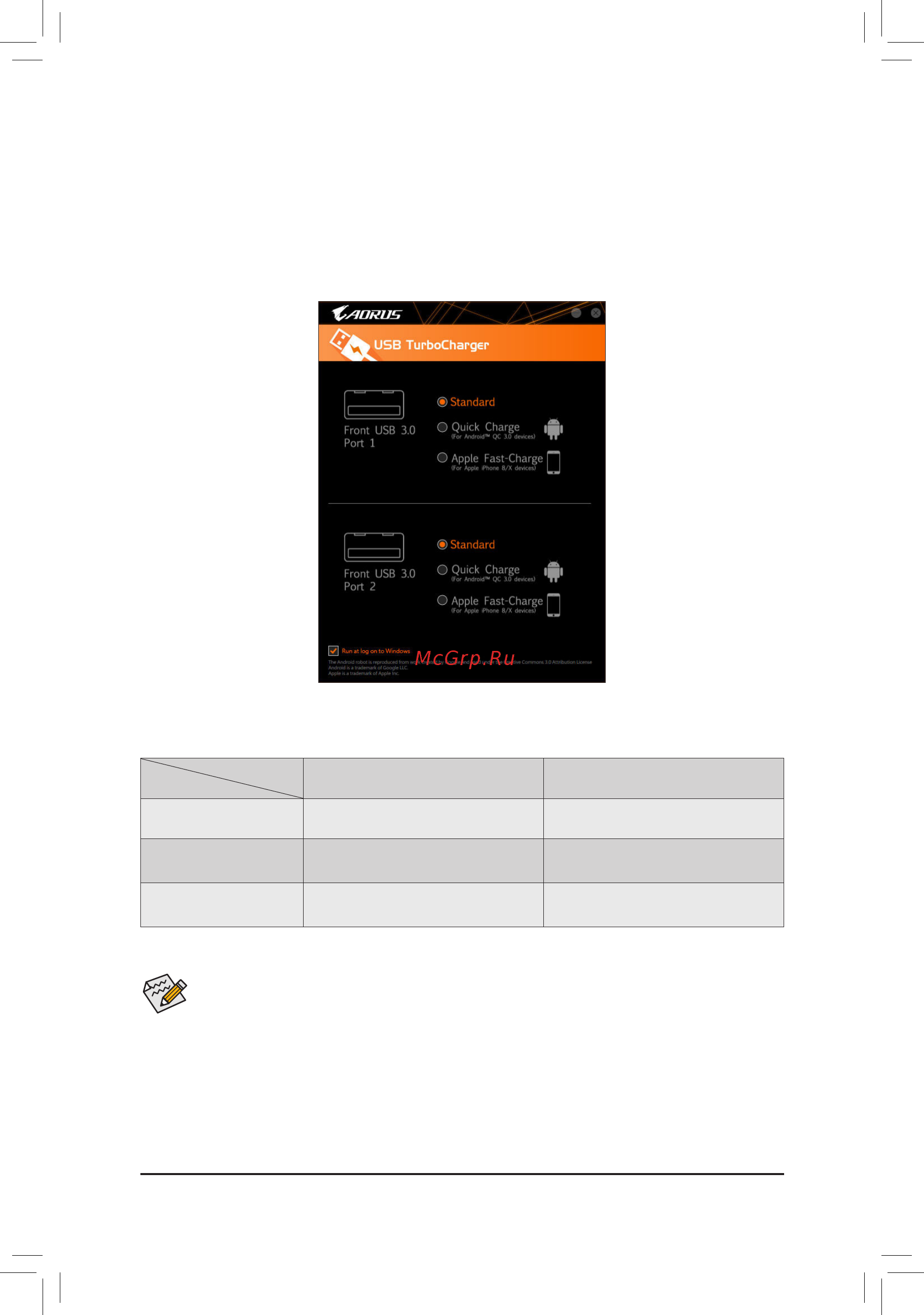

The USB TurboCharger Interface
Using USB TurboCharger
The quick-charging performance of each connector may vary by the device used. Refer to the table below to
select a proper way to charge:
Apple Android
™
QC 3.0
Standard Used as a normal USB 3.2 Gen 1 port Used as a normal USB 3.2 Gen 1 port
Quick Charge
(Note 2)
a
* Provides maximum output power of 10 W
a
* Provides maximum output power of 18 W
Apple Fast Charge
(Note 3)
a
* Provides maximum output power of 15 W
r
a: Supports quick-charge, r: Not support quick-charge.
While the system is in S3/S4, the Quick Charge and Apple Fast-Charge modes can only deliver 5V
standby power, and the two front USB ports together can provide a total power of up to 10 W and do
not support PME Event Wake Up function.
(Note 1) Quick-charging protocols supported: Apple and Samsung
®
dividerchargingproleat5V@2.4Aand
5V@2A, Qualcomm
®
Quick Charge 3.0
™
at 3.6V~12V (QC3.0), backward compatible Quick Charge
2.0
™
at5V/9V/12V(QC2.0),BatteryChargingSpecicationv1.2DCP5V@1.5A.
(Note2) Theletransferfunctionisnotsupportedinthismode.
(Note 3) This is the recommended mode when Apple iPhone 8 / iPhone 8 plus / iPhone X is connected.
