- 66 -
Conguring a RAID Set
3-2 Installing the SATA RAID/AHCI Driver and Operating System
With the correct BIOS settings, you are ready to install the operating system.
A. Installing Windows
As some operating systems already include SATA RAID/AHCI driver, you do not need to install separate RAID/
AHCI driver during the Windows installation process. After the operating system is installed, we recommend
that you install all required drivers from the motherboard driver disc using "Xpress Install" to ensure system
performance and compatibility. If the operating system to be installed requires that you provide additional SATA
RAID/AHCI driver during the OS installation process, please refer to the steps below:
Step 1:
Copy the Hw10 folder under the \BootDrv folder in the driver disc to your USB thumb drive.
Step 2:
Boot from the Windows setup disc and perform standard OS installation steps. When the screen requesting you
to load the driver appears, select Browse.
Step 3:
Insert the USB thumb drive and then browse to the location of the driver. The location of the driver is as follows:
Windows 64-bit: \Hw10\RAID\x64
Step 4:

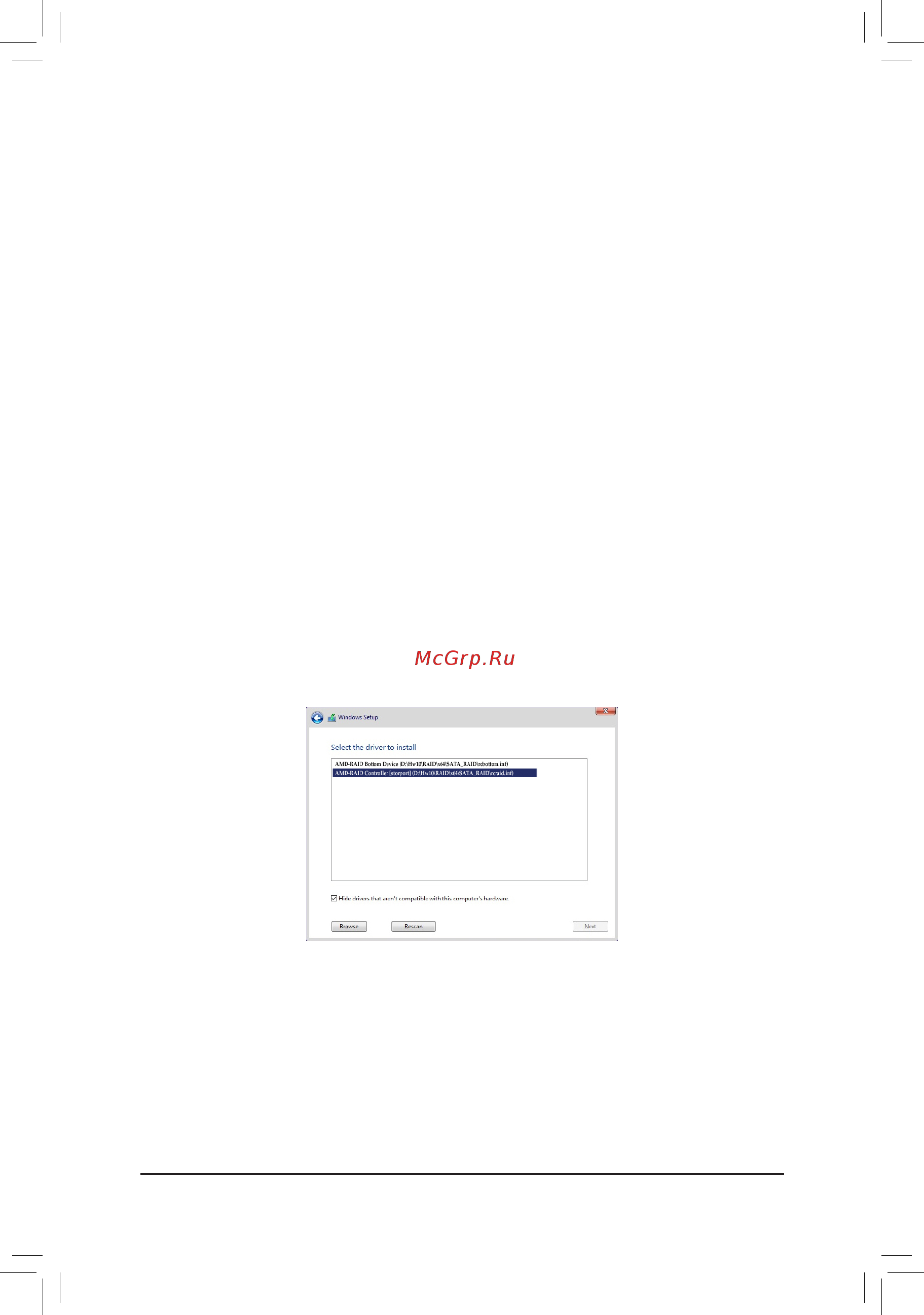

When a screen as shown in Figure 1 appears, select AMD-RAID Bottom DevicerstandclickNext to load the
driver. Then select AMD-RAID Controller and click Next to load the driver. Finally, continue the OS installation.
Figure 1
