BIOS Setup
- 54 -

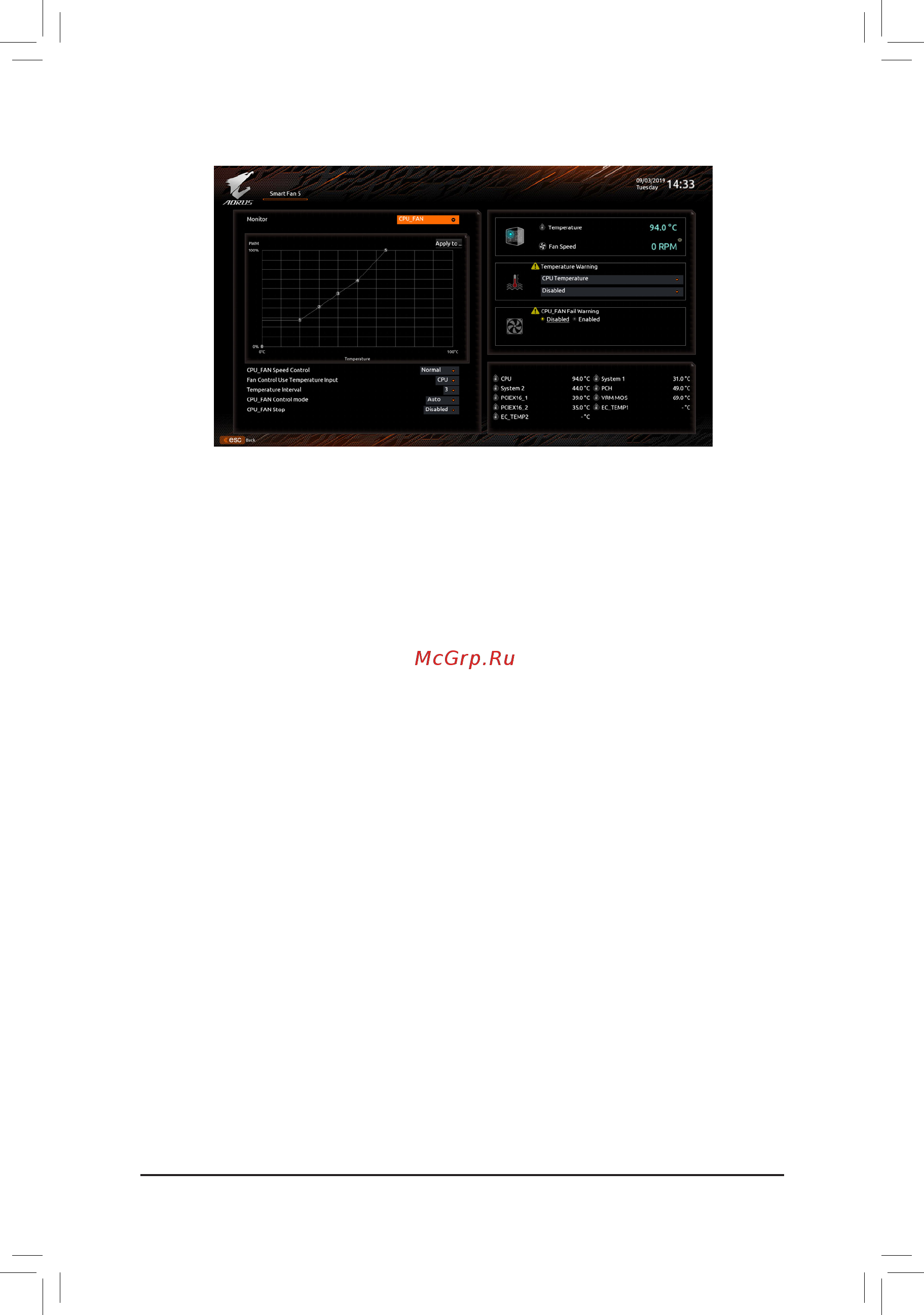

Smart Fan 5
& Monitor
Allows you to select a target to monitor and to make further adjustment. (Default: CPU FAN)
& Fan Speed Control
Allows you to determine whether to enable the fan speed control function and adjust the fan speed.
Normal Allows the fan to run at different speeds according to the temperature. You can adjust
the fan speed with System Information Viewer based on your system requirements.
(Default)
Silent Allows the fan to run at slow speeds.
Manual Allows you to control the fan speed in the curve graph.
Full Speed Allows the fan to run at full speeds.
& Fan Control Use Temperature Input
Allows you to select the reference temperature for fan speed control.
& Temperature Interval
Allows you to select the temperature interval for fan speed change.
& Fan/Pump Control Mode
Auto Lets the BIOS automatically detect the type of fan installed and sets the optimal control
mode. (Default)
Voltage Voltage mode is recommended for a 3-pin fan/pump.
PWM PWM mode is recommended for a 4-pin fan/pump.
& Fan/Pump Stop
Enables or disables the fan/pump stop function. You can set the temperature limit using the temperature
curve. The fan or pump stops operation when the temperature is lower than the limit. (Default: Disabled)
& Temperature
Displays the current temperature of the selected target area.
& Fan Speed
Displays current fan/pump speeds.
& Flow Rate
Displaystheowrateofyourwatercoolingsystem.
(Note) The SYS_FAN5A_PUMP option can control the SYS_FAN5A_PUMP and SYS_FAN5B_PUMP
connectors at the same time. The SYS_FAN6A_PUMP option can control the SYS_FAN6A_PUMP
and SYS_FAN6B_PUMP connectors at the same time.
