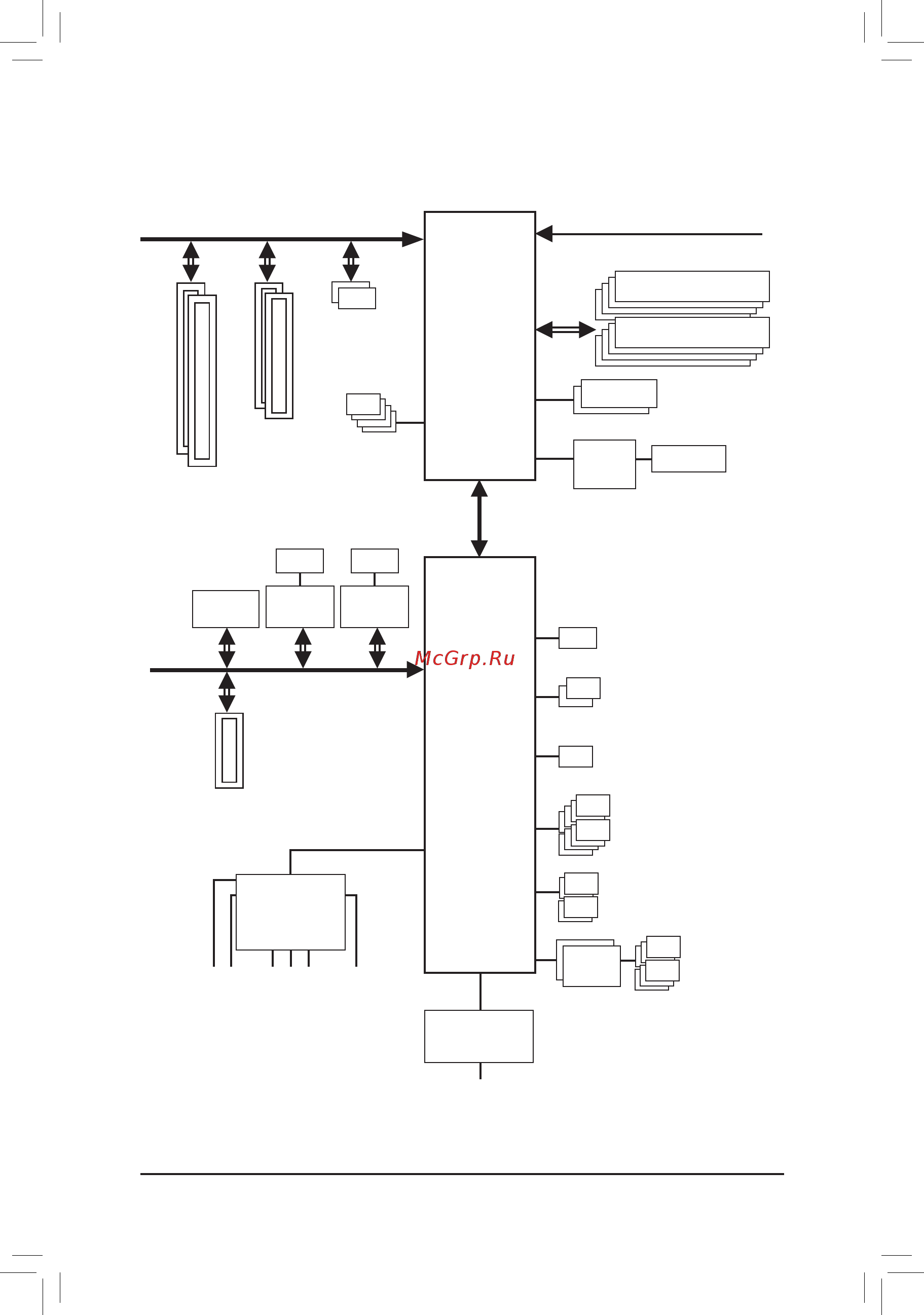

TRX40 AORUS MASTER Motherboard Block Diagram

CPU CLK+/- (100~300 MHz)

6 USB 2.0/1.1

2 USB Type-C

™

, with

USB 3.2 Gen 2 support

DDR4 3200/2933/2667/2400/2133 MHz

PCI Express 4.0 Bus

PCIe 4.0

LAN

x16

RJ45

Intel

GbE

LAN

LPC

Bus

8 SATA 6Gb/s

2 PCI Express x16

PCI Express 4.0 Bus

TPM

RJ45

Aquantia

5GbE LAN

1 USB 3.2

Gen 2 Type A

5GLAN

Center/Subwoofer

Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Rear Speaker Out

Realtek

ALC4050H

Realtek

ALC1220-VB

4 USB 3.2 Gen 1

M.2 WiFi

Module

2 PCI Express x8

4 USB 3.2

Gen 2 Type A

Dual BIOS

SPI

Bus

iTE

Super I/O

PCI Express x1

Front Audio

Realtek

ALC4050H

ESS SABRE9218

AMD Socket sTRX4

CPU

1 M.2 Socket 3

(M2P)

AMD TRX40

2 M.2 Socket 3

(M2M/M2Q)

2 USB 2.0

Hub

Содержание

Rev 1001 12me tr4amst 1001r 1
Trx40 aorus master 1
User s manual 1
Motherboard 2
Oct 3 2019 2
Trx40 aorus master 2
Wireless module country approvals 2
Copyright 3
Disclaimer 3
Documentation classifications 3
Identifying your motherboard revision 3
Box contents optional items trx40 aorus master motherboard layout trx40 aorus master motherboard block diagram 4
Chapter 1 hardware installation 4
Chapter 2 bios setup 9 4
Chapter 4 drivers installation 9 4
Chapter3configuringaraidset 1 4
Table of contents 4
1 bios update utilities 71 5
1 configuringaudioinputandoutput 87 5
2 app center 76 5
2 troubleshooting 2 5
3 debug led codes 5 5
Chapter 5 unique features 1 5
Chapter 6 appendix 7 5
Regulatory statements 9 contact us 103 5
Box contents 6
Optional items 6
Note for debug code information please refer to chapter 6 7
Trx40 aorus master 7
Trx40 aorus master motherboard layout 7
Amd trx40 8
Center subwoofer 8
Cpu clk 100 300 mhz 8
Ddr4 3200 2933 2667 2400 2133 mhz 8
Front audio 8
Line in 8
Line out 8
M wifi module 8
Pci express 4 bus 8
Rear speaker out 8
S pdif out 8
Sata 6gb s 8
Speaker out 8
Trx40 aorus master motherboard block diagram 8
Usb 2 1 8
Usb 3 gen 1 8
Usb 3 gen 2 type a 8
1 installation precautions 9
Chapter 1 hardware installation 9
2 product specifications 10
2 productspecifications 10
3 1 installing the cpu 13
3 installing the cpu and cpu cooler 13
3 2 installing the cpu cooler 16
4 1 quad channel memory configuration 17
4 1 quadchannelmemoryconfiguration 17
4 installing the memory 17
4 2 installing a memory 18
5 installing an expansion card 19
6 setting up amd crossfir 20
6 setting up amd crossfire nvidia sli configuration 20
A system requirements 20
B connecting the graphics cards 20
C configuringthegraphicscarddriver 20
Configuration 20
21 hardware installation 21
7 back panel connectors 21
After system restart go to bios setup to load factory defaults select load optimized defaults or 21
Always turn off your computer and unplug the power cord from the power outlet before using 21
Clear cmos button 21
Data loss or damage may occur 21
Do not use the clear cmos button when the system is on or the system may shutdown and 21
Makesuretoinserttheusbflashdriveintothisportfirst 21
Manuallyconfigurethebiossettings refertochapter2 biossetup forbiosconfigurations 21
Note to enable q flash plus function refer to chapter 5 unique features for more information 21
Q flash plus button 21
Rj 45 lan port 5glan 21
Rj 45 lan port lan 21
The clear cmos button 21
The gigabit ethernet lan port provides internet connection at up to 1 gbps data rate the following describes the states of the lan port leds 21
The gigabit ethernet lan port provides internet connection at up to 5 gbps data rate the following describes the states of the lan port leds 21
Theusb3 gen2type aportsupportstheusb3 gen2specificationandiscompatibletotheusb 3 gen1andusb2 specification usethisportforusbdevices 21
Theusbportsupportstheusb2 1 specification usethisportforusbdevices 21
Theusbportsupportstheusb2 1 specification usethisportforusbdevices usethisportfor usb devices before using q flash plus 21
This button allows you to update the bios when the power connector is connected but the system is not powered on 21
Usb 2 1 port 21
Usb 2 1 port q flash plus port 21
Usb 3 gen 2 type a port red 21
Usethisbuttontoclearthecmosvalues e g biosconfiguration andresetthecmosvaluestofactory defaults when needed 21
22 hardware installation 22
Audiojackconfigurations 22
Center subwoofer speaker out 22
If you want to install a side speaker you need to retask the line in jack to be side speaker out through the audio driver 22
Line in side speaker out 22
Line out front speaker out 22
Mic in 22
Optical s pdif out connector 22
Rear speaker out 22
Sma antenna connectors 2t2r 22
The line in jack use this audio jack for line in devices such as an optical drive walkman etc 22
The line out jack 22
The mic in jack 22
Thereversibleusbportsupportstheusb3 gen2specificationandiscompatibletotheusb3 gen1 andusb2 specification usethisportforusbdevices 22
This connector provides digital audio out to an external audio system that supports digital optical audio before using this feature ensure that your audio system provides an optical digital audio in connector 22
Tighten the antenna cables to the antenna connectors and then move the antenna to a place where the signal is good 22
To prevent an electrical short inside the cable connector 22
Usb type 22
Use this audio jack to connect center subwoofer speakers 22
Use this audio jack to connect rear speakers 22
Use this connector to connect an antenna 22
When removing the cable pull it straight out from the connector do not rock it side to side 22
Whenremovingthecableconnectedtoabackpanelconnector firstremovethecablefrom 22
Your device and then remove it from the motherboard 22
23 hardware installation 23
8 onboard buttons switches and leds 23
Backup bios boot from the backup bios 23
Bbios_led the backup bios is active 23
Before setting the sb switch be sure to turn off your computer and power supply 23
Bios led indicators 23
Bios switches and bios led indicators 23
Bios_sw 23
Cpu cpu status led dram memory status led vga graphics card status led boot operating system status led 23
Dual bios 23
Main bios boot from the main bios 23
Mbios_led the main bios is active 23
Single bios 23
Status leds 23
The bios switch bios_sw allows users to easily select a different bios for boot up or overclocking helping to reduce bios failure during overclocking the sb switch allows enabling or disabling of the dual bios function the led indicator mbios_led bbios_led shows which bios is active 23
The status leds show whether the cpu memory graphics card and operating system are working properly after system power on if the cpu dram vga led is on that means the corresponding device is not working normally if the boot led is on that means you haven t entered the operating system yet 23
24 hardware installation 24
Pin 1 pin 1 24
Pin 1 pin 1 pin 1 pin 1 24
Pin no definition 24
Pw_sw power button rst_sw reset button 24
Quick buttons 24
Steps connect the red lead of the multimeter to the pin 1 power of a voltage measurement point and the black lead to the pin 2 ground 24
This motherboard has 2 quick buttons power button and reset button the power button and reset button al low users to quickly turn on off or reset the computer in an open case environment when they want to change hardware components or conduct hardware testing 24
Use a multimeter to measure the following motherboard voltages you can employ following way to measure component voltages 24
Vcore_soc 24
Vdimm_ab 24
Vdimm_cd pch_cldo 24
Voltage measurement points 24
9 internal connectors 25
2 atx_12v1 atx_12v2 atx 2x4 12v power connectors and 2x12 main power connector 26
26 hardware installation 26
The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 26
To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 26
With the use of the power connector the power supply can supply enough stable power to all the components onthemotherboard beforeconnectingthepowerconnector firstmakesurethepowersupplyisturned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation 26
27 hardware installation 27
4 cpu_fan sys_fan1 sys_fan2 fan headers 27
All fan headers on this motherboard are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the motherboard supports cpu fan speed control which requires the use of a cpu fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis 27
Be sure to connect fan cables to the fan headers to prevent your cpu and system from overheat 27
Ing overheating may result in damage to the cpu or the system may hang 27
Sys_fan5a b_pump sys_fan6a b_pump system fan water cooling pump headers 27
The fan pump headers are 4 pin and possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis the headers also provide speed control for a water cooling pump refer to chapter 2 bios setup settings smart fan 5 for more information 27
Thesefanheadersarenotconfigurationjumperblocks donotplaceajumpercapontheheaders 27
28 hardware installation 28
Be sure to connect fan cables to the fan headers to prevent your cpu and system from overheat 28
Connect the thermistor cables to the headers for temperature detection 28
Cpu_opt water cooling cpu fan header 28
Ec_temp1 ec_temp2 temperature sensor headers 28
Ing overheating may result in damage to the cpu or the system may hang 28
The fan header is 4 pin and possesses a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design 28
Thesefanheadersarenotconfigurationjumperblocks donotplaceajumpercapontheheaders 28
Led_c1 led_c2 rgb led strip headers 29
30 hardware installation 30
Before installing the devices be sure to turn off the devices and your computer unplug the power cord from the power outlet to prevent damage to the devices 30
Connect one end of the included ad dressable led strip adapter cable to this header and the other end to your addressable led strip the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 of the addressable led strip header incorrect connection may lead to the damage of the led strip 30
D_led1 d_led2 addressable led strip headers 30
For how to turn on off the lights of the led strip refer to the instructions on in chapter 5 unique features app center rgb fusion 30
No pin 30
Pin no definition 30
Sata3 0 1 2 3 4 5 6 7 sata 6gb s connectors 30
The headers can be used to connect a standard 5050 addressable led strip with maximum power rating of 5a 5v and maximum number of 1000 leds 30
The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device the amd chipset supports raid 0 raid 1 andraid10 refertochapter3 configuringaraidset forinstructionsonconfiguringaraidarray 30
To enable hot plugging for the sata ports refer to chapter 2 bios setup settings io ports sataconfiguration formoreinformation 30
31 hardware installation 31
Follow the steps below to correctly install an m ssd in the m connector 31
Heatsink 31
M2m m2q m2p m socket 3 connectors 31
Select the proper hole for the m ssd to be installed and refasten the screw and standoff makesuretoremovetheprotectivefilmfromthebottomoftheheatsinkbeforereplacingthe 31
Step 1 get a screw and a standoff from the included m screw and standoff packs if you want to install the m ssd in the m2m connector use a screwdriver to unfasten two screws from the heatsink and remove the heatsink 31
Step 2 if you want to install the m ssd in the m2p or m2q connector use a screwdriver to unfasten the two screws from the heatsink as indicated in the picture above and then remove the heatsink 31
Step 3 locate the proper mounting hole for the m ssd to be installed andthentightenthestandofffirst insertthem ssdintothe m connector at an angle press the m ssd down and then secure it with the screw replace the heatsink and secure it to the original hole 31
Them connectorssupportm satassdsorm pciessdsandsupportraidconfiguration please note that an m pcie ssd cannot be used to create a raid set either with an m sata ssd or a sata harddrive refertochapter3 configuringaraidset forinstructionsonconfiguringaraidarray 31
F_panel front panel header 32
33 hardware installation 33
B s_ b 33
B_ f_usb3 f_usb30 3 33
Cc1 18 d 33
F_audio front panel audio header 33
F_u32c usb type 33
F_usb3 f 33
F_usb30 f_ u 33
Faudio_jd 33
Gnd 14 gnd 33
Header with usb 3 gen 2 support 33
Line2_l 33
Line2_r 33
Mic2_l 33
Mic2_r 33
Nc 19 d 33
Nc 20 cc2 33
No pin 33
Pin no definition 33
Pin no definition pin no definition 33
Rx1 15 rx2 33
Rx1 16 rx2 33
S 3 b s s s 33
S b_ b 33
Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer 33
Thefrontpanelaudioheadersupportshighdefinitionaudio hd youmayconnectyourchassisfront panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 33
Theheaderconformstousb3 gen2specificationandcanprovideoneusbport 33
Tx1 12 tx2 33
Tx1 13 tx2 33
Usb 0_ b 33
Vbus 11 vbus 33
Vbus 17 gnd 33
_ s f_ 33
_ s s_ _ b 33
_ u _ b 33
34 hardware installation 34
D1 18 ssrx2 34
D1 19 vbus 34
Do not plug the ieee 1394 bracket 2x5 pin cable into the usb 2 1 header prior to installing the usb bracket be sure to turn off your computer and unplug the power cord 34
F_u32_1 f_u32_2 usb 3 gen 1 headers 34
F_usb1 f_usb2 usb 2 1 headers 34
From the power outlet to prevent damage to the usb bracket 34
Function requires software support the maximum power output of this connector may vary de pending on the power management mechanism for the usb cable and charging device used for more information on usb turbocharger refer to the instructions in chapter 5 unique features 34
Gnd 14 sstx2 34
Gnd 17 ssrx2 34
Nc 20 no pin 34
No pin 34
Only the usb ports routed to the f_u32_1 connector support usb turbocharger enabling this 34
Pin no definition 34
Pin no definition pin no definition 34
Power 5v 34
Ssrx1 12 d2 34
Ssrx1 13 gnd 34
Sstx1 15 sstx2 34
Sstx1 16 gnd 34
Theheadersconformtousb2 1 specification eachusbheadercanprovidetwousbportsviaan optional usb bracket for purchasing the optional usb bracket please contact the local dealer 34
Theheadersconformtousb3 gen1andusb2 specificationandeachheadercanprovidetwousb ports for purchasing the optional 3 front panel that provides two usb 3 gen 1 ports please contact the local dealer 34
Usb dx 34
Usb dy 34
Vbus 11 d2 34
35 hardware installation 35
Always turn off your computer and unplug the power cord before replacing the battery replace the battery with an equivalent one damage to your devices may occur if the battery is 35
Bat battery 35
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself 35
Lframe 35
Lreset 35
No pin 35
Of the battery the positive side should face up 35
Or uncertain about the battery model 35
Or use a metal object like a screwdriver to touch the positive and nega tive terminals of the battery holder making them short for 5 seconds 35
Pin no definition 35
Replace the battery 4 plug in the power cord and restart your computer 35
Replaced with an incorrect model 35
Serirq 35
Thebatteryprovidespowertokeepthevalues suchasbiosconfigurations date andtimeinformation in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost 35
Tpm trusted platform module header 35
Used batteries must be handled in accordance with local environmental regulations 35
When installing the battery note the orientation of the positive side and the negative side 35
You may clear the cmos values by removing the battery 1 turn off your computer and unplug the power cord 2 gently remove the battery from the battery holder and wait for one minute 35
You may connect a tpm trusted platform module to this header 35
36 hardware installation 36
Before connecting the cable to the header make sure to remove the jumper cap re place the jumper cap if the header is not in use 36
For more information on the noise detection function refer to the instructions in chapter 5 unique features app center system information viewer 36
Noise detection 36
Noise_sensor noise detection header 36
Pin no definition 36
Thb_c gigabyte add in card connector 36
This connector is for a gigabyte add in card 36
This header can be used to connect a noise detection cable to detect the noise inside the case 36
Clr_cmos clear cmos jumper 37
Chapter 2 bios setup 39
1 startup screen 40
2 the main menu 41
Advanced mode 41
Advanced mode function keys 41
Sample bios version t0d 41
B easy mode 42
3 favorites f11 43
4 tweaker 44
Advanced cpu settings 44
Core performance boost 44
Cpu clock control 44
Cpu clock ratio 44
Spread spectrum control 44
Ccd control 45
Downcore control 45
Extremememoryprofile x m p 45
Global c state control 45
Letsthebiosautomaticallyconfigurethissetting 45
Package c6 state 45
Power supply idle control 45
Smt mode 45
Svm mode 45
System memory multiplier 45
Advanced memory settings 46
Cpu vcore dynamic vcore dvid vcore soc dynamic vcore soc dvid cpu 46
D d standard timing control advanced timing control cad bus setup timing cad bus 46
Drivestrength databusconfiguration 46
Memory subtimings 46
Spd info 46
Vdd18 cpu vddp pch_cldo pm_1vsoc pm_1v8 dram voltage ch a b ddrvpp voltage ch a b dram termination ch a b dram voltage ch c d ddrvpp voltage ch c d dram termination ch c d 46
Cpu vrm settings 47
5 settings 48
Ac back 48
Platform power 48
Power loading 48
Soft off by pwr bttn 48
Above 4g decoding 49
Initial display output 49
Io ports 49
Pciex16_1 bifurcation 49
Pciex16_2 bifurcation 49
Pciex8_1 bifurcation 49
Pciex8_2 bifurcation 49
Resume by alarm 49
Wake on lan 49
Chipset sata port 0 1 2 3 4 5 6 7 50
Chipset sata port enable 50
Chipset sata port hot plug 50
Gbe lan chip lan 50
Legacy usb support 50
Mass storage devices 50
Network stack 50
Networkstackconfiguration 50
Nvme raid mode 50
Onboard lan1 controller inte 50
Onboard lan2 controller aquantia 5gbe lan chip 5glan 50
Port 60 64 emulation 50
Sata mode 50
Sataconfiguration 50
Usb mass storage driver support 50
Usbconfiguration 50
Xhci hand off 50
Intel r i211 gigabit network connection 51
Ipseccertificate 51
Ipv4 http support 51
Ipv4 pxe support 51
Ipv6 http support 51
Ipv6 pxe support 51
Media detect count 51
Pxe boot wait time 51
3dmark01 enhancement 52
Amd cpu ftpm 52
Leds in sleep hibernation and soft off states 52
Leds in system power on state 52
Miscellaneous 52
Onboard button light 52
Onboard debug port led 52
Pcieslotconfiguration 52
Trusted computing 52
Amd cbs 53
C d voltage ddrvpp channel a b voltage ddrvpp channel c d voltage 3 v 5v chipset core 12v 53
Case open 53
Cpu vcore cpu vcore soc cpu vdd18 dram channel a b voltage dram channel 53
Pc health 53
Reset case open status 53
Fan control use temperature input 54
Fan pump control mode 54
Fan pump stop 54
Fan speed 54
Fan speed control 54
Flow rate 54
Monitor 54
Smart fan 5 54
Temperature 54
Temperature interval 54
Fan pump fail warning 55
Temperature warning control 55
6 system info 56
Access level 56
Plug in devices info 56
Q flash 56
System date 56
System language 56
System time 56
7 boot 57
Boot option priorities 57
Bootup numlock state 57
Fast boot 57
Full screen logo show 57
Nvme support 57
Sata support 57
Security option 57
Administrator password 58
Csm support 58
Lan pxe boot option rom 58
Network stack driver support 58
Other pci device rom priority 58
Storage boot option control 58
Usb support 58
Vga support 58
Preferred operating mode 59
Secure boot 59
User password 59
8 save exit 60
Boot override 60
Exit without saving 60
Load optimized defaults 60
Loadprofiles 60
Save exit setup 60
Saveprofiles 60
1 configuring sata controllers 61
1 configuringsatacontrollers 61
A installing sata hard drive s in your computer 61
Before you begin 61
Chapter 3 configuring a raid set 61
Chapter3 configuringaraidset 61
Raid levels 61
Toconfiguresataharddrive s followthestepsbelow 61
B configuringsatacontrollermodeinbiossetup 62
C uefiraidconfiguration 62
2 installing the sata raid ahci driver and operating system 66
A installing windows 66
B rebuilding an array 67
1 drivers software 69
Chapter 4 drivers installation 69
2 application software 70
3 information 70
1 1 updating the bios with the q flash utility 71
1 bios update utilities 71
A before you begin 71
Chapter 5 unique features 71
B updating the bios 72
1 2 updating the bios with the bios utility 74
A before you begin 74
B using bios 74
C after updating the bios 74
1 3 using q flash plus 75
A before you use q flash plus follow the steps below in sequence 75
B using q flash plus 75
2 app center 76
Running the app center 76
2 1 autogreen 77
The autogreen interface 77
2 2 easytune 78
Tabs information 78
The easytune interface 78
2 3 fast boot 79
The fast boot interface 79
Using fast boot 79
2 4 game boost 80
The game boost interface 80
Using game boost 80
2 5 rgb fusion 81
The rgb fusion interface 81
Using rgb fusion 81
2 6 smart backup 83
Creating a backup 83
Recoveringafile 83
Saving the backup to a network location 83
Recovering your system with smart backup 84
2 7 system information viewer 85
Tabs information 85
The system information viewer interface 85
2 8 usb turbocharger 86
The usb turbocharger interface 86
Using usb turbocharger 86
1 1 configuring 2 4 5 7 channel audio 87
1 1 configuring2 4 5 7 channelaudio 87
1 configuring audio input and output 87
1 configuringaudioinputandoutput 87
A configuring speakers 87
Chapter 6 appendix 87
B configuring the headphone 88
1 2 configuring s pdif out 89
1 2 configurings pdifout 89
1 3 using the voice recorder 89
A recording audio 89
B playing the recorded sound 89
1 4 dts 90
1 4 dts x ultra 90
A using dts x ultra 90
B using dts sound unbound installing dts sound unbound 91
2 1 frequently asked questions 92
2 troubleshooting 92
Appendix 92 92
To read more faqs for your motherboard please go to the support faq page on gigabyte s website 92
2 2 troubleshooting procedure 93
93 appendix 93
If you encounter any troubles during system startup follow the troubleshooting procedure below to solve the problem 93
Appendix 94 94
If the procedure above is unable to solve your problem contact the place of purchase or local dealer for help or go to the support technical support page to submit your question our customer service staff will reply you as soon as possible 94
3 debug led codes 95
Regular boot 95
Recovery 97
S3 resume 97
99 appendix 99
Battery information 99
Our commitment to preserving the environment 99
Regulatory notices 99
Regulatory statements 99
Restriction of hazardous substances rohs directive statement 99
Waste electrical electronic equipment weee directive statement 99
Weee symbol statement 99
Caution 100
Fcc notice u s a only 100
Canada industry canada ic 101
European community radio equipment directive red compliance statement 102
Japan wireless statement 102
Korea kcc ncc wireless statement 102
Taiwan ncc wireless statements 無線設備警告聲明 102
103 appendix 103
Contact us 103
Appendix 104 104
Gigabyte esupport 104
To submit a technical or non technical sales marketing question please link to https esupport gigabyte com 104

Gigabyte TRX40 AORUS MASTER (rev. 1.1) [8/104] Amd trx40

Содержание

Похожие устройства
