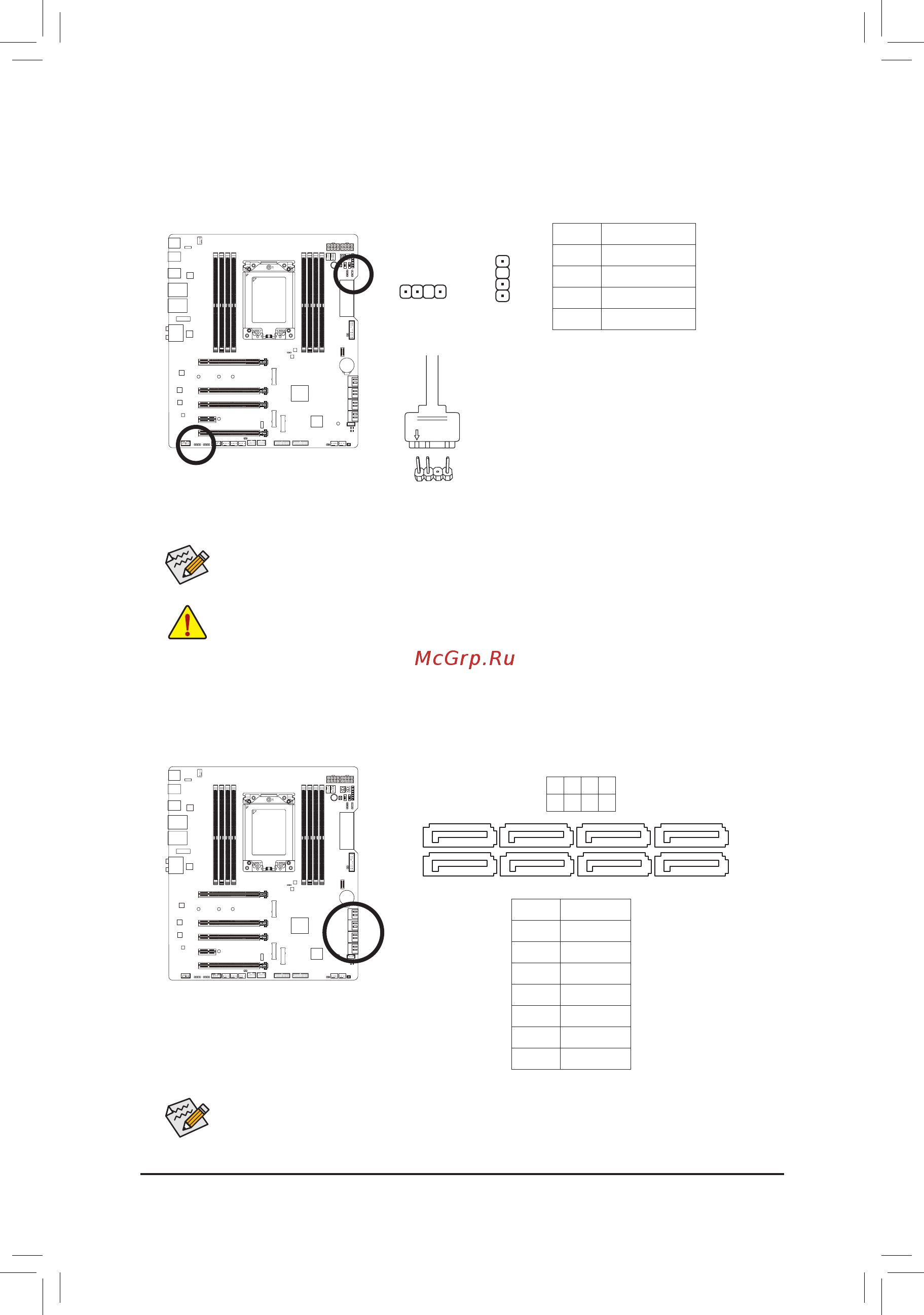

Hardware Installation
9) D_LED1/D_LED2 (Addressable LED Strip Headers)
The headers can be used to connect a standard 5050 addressable LED strip, with maximum power rating
of 5A (5V) and maximum number of 1000 LEDs.
Pin No. Denition
1 V
2 D
3 No Pin
4 G
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
For how to turn on/off the lights of the LED strip, refer to the instructions on in Chapter 5, "Unique
Features," "APP Center\RGB Fusion."
Connect one end of the included ad-
dressable LED strip adapter cable to
this header and the other end to your
addressable LED strip. The power pin
(marked with a triangle on the plug) of
the LED strip must be connected to Pin
1 of the addressable LED strip header.
Incorrect connection may lead to the
damage of the LED strip.
Addressable
LED Strip
Adapter Cable
1
10) SATA3 0/1/2/3/4/5/6/7 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The AMD Chipset supports RAID 0, RAID 1,
andRAID10.RefertoChapter3,"ConguringaRAIDSet,"forinstructionsonconguringaRAIDarray.
To enable hot-plugging for the SATA ports, refer to Chapter 2, "BIOS Setup," "Settings\IO Ports\
SATAConguration,"formoreinformation.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
1
