- 63 -

Conguring a RAID Set

Step 2:

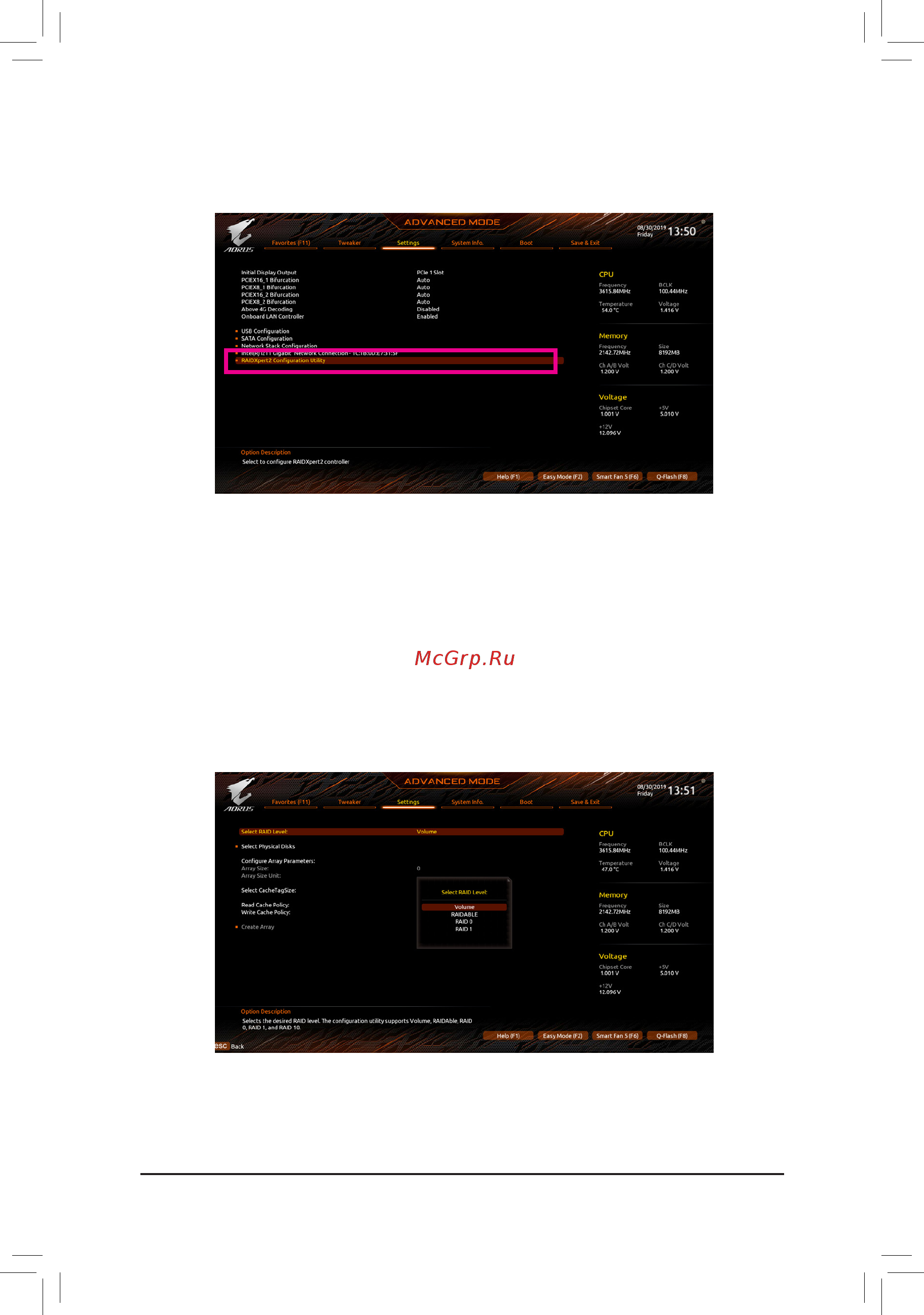

After the system reboot, enter BIOS Setup again. Then enter the Settings\IOPorts\RAIDXpert2Conguration

Utility sub-menu (Figure 3).

Step 3:

OntheRAIDXpert2CongurationUtilityscreen,press<Enter>onArray Management to enter the Create

Array screen. Then, select a RAID level (Figure 4). RAID levels supported include RAID 0, RAID 1, and RAID

10 (the selections available depend on the number of the hard drives being installed). Next, press <Enter> on

Select Physical Disks to enter the Select Physical Disks screen.

Figure 3

Figure 4
