Gigabyte H370 HD3 (rev. 1.0) [10/48] Ps 2keyboard mouseport

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

ChannelA:DDR4_2,DDR4_4

ChannelB:DDR4_1,DDR4_3

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used.

1-5 InstallinganExpansionCard

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

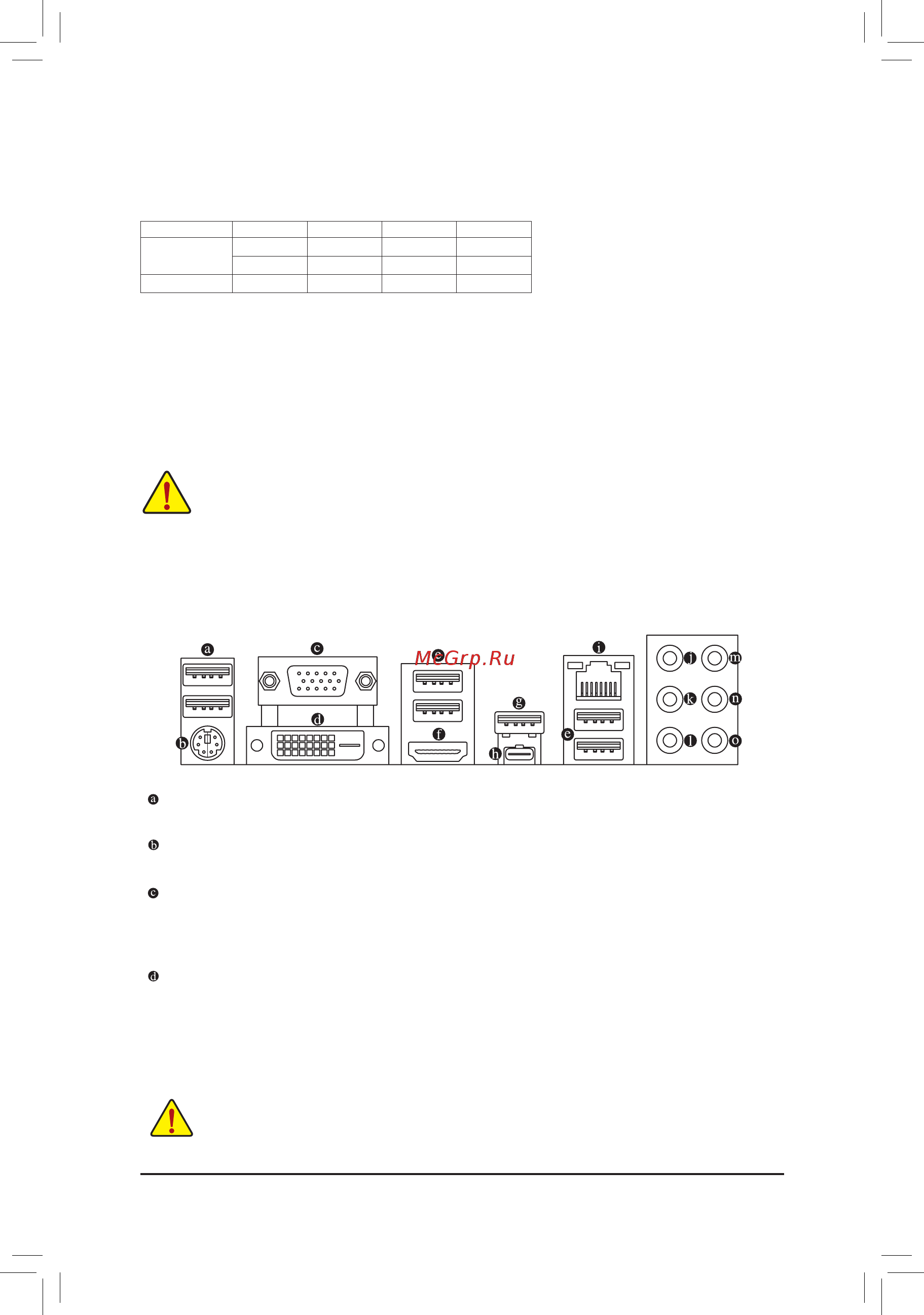

PS/2Keyboard/MousePort

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

TheD-Subportsupportsa15-pinD-Subconnectorandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

DVI-D Port

(Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz

DDR4_4 DDR4_2 DDR4_3 DDR4_1
