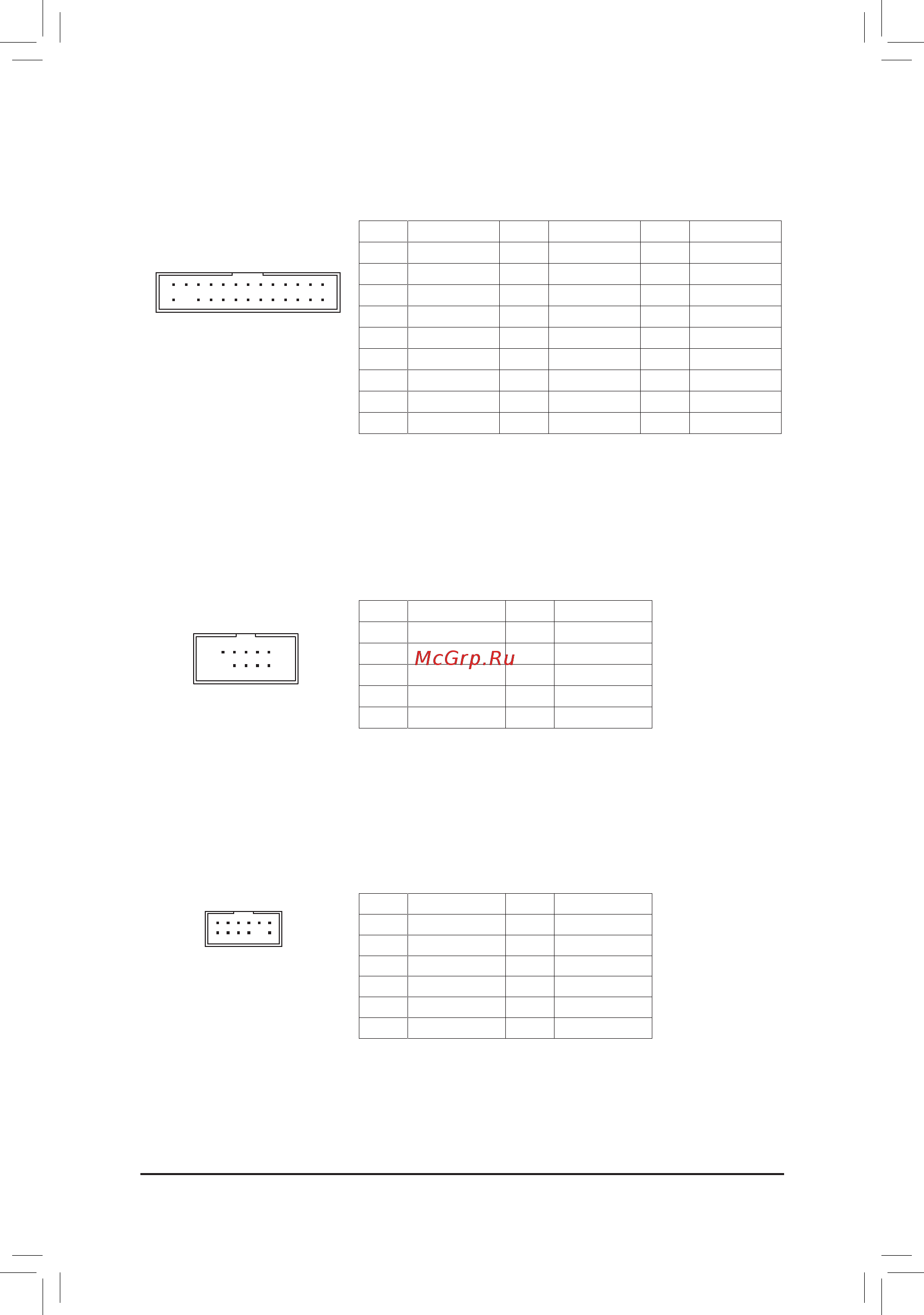

13) LPT (Parallel Port Header)
The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional
LPT port cable, please contact the local dealer.
Pin No. Denition Pin No. Denition Pin No. Denition
1
STB-
10
GND
19
ACK-
2
AFD-
11
PD4
20
GND
3
PD0
12
GND
21
BUSY
4
ERR-
13
PD5
22
GND
5
PD1
14
GND
23
PE
6
INIT-
15
PD6
24
No Pin
7
PD2
16
GND
25
SLCT
8
SLIN-
17
PD7
26
GND
9
PD3
18
GND
DEBUG
PORT
G.QBOFM
1
226
25
14) COM(SerialPortHeader)
The COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
Pin No. Denition Pin No. Denition
1 NDCD- 6 NDSR-
2 NSIN 7 NRTS-
3 NSOUT 8 NCTS-
4 NDTR- 9 NRI-
5 GND 10 No Pin
15) TPM (Trusted Platform Module Header)
You may connect a TPM (Trusted Platform Module) to this header.
Pin No. Denition Pin No. Denition
1
LAD0
7
LAD3
2
VCC3
8
GND
3
LAD1
9
LFRAME
4
No Pin
10
NC
5
LAD2
11
SERIRQ
6
LCLK
12
LRESET
F_USB30
F_U
B_
F_ F_
_
B
BS_
B
SB_
B
_S
S_
_
B
_U
_
B
S
123
123
123
123
1
1
1
1
BSS
S
_S
SSU
1 2 3 4 5
S3
BSSS
U
__ 3
F_USB3F
S _
S _
S _
SF
B_
B_
F
_0
S
S
_0F
_F
_
_
__B
U
S _S
_
SF_
USB0_B
B_
F_USB3
F_USB303
_
_3U
- 19 -
