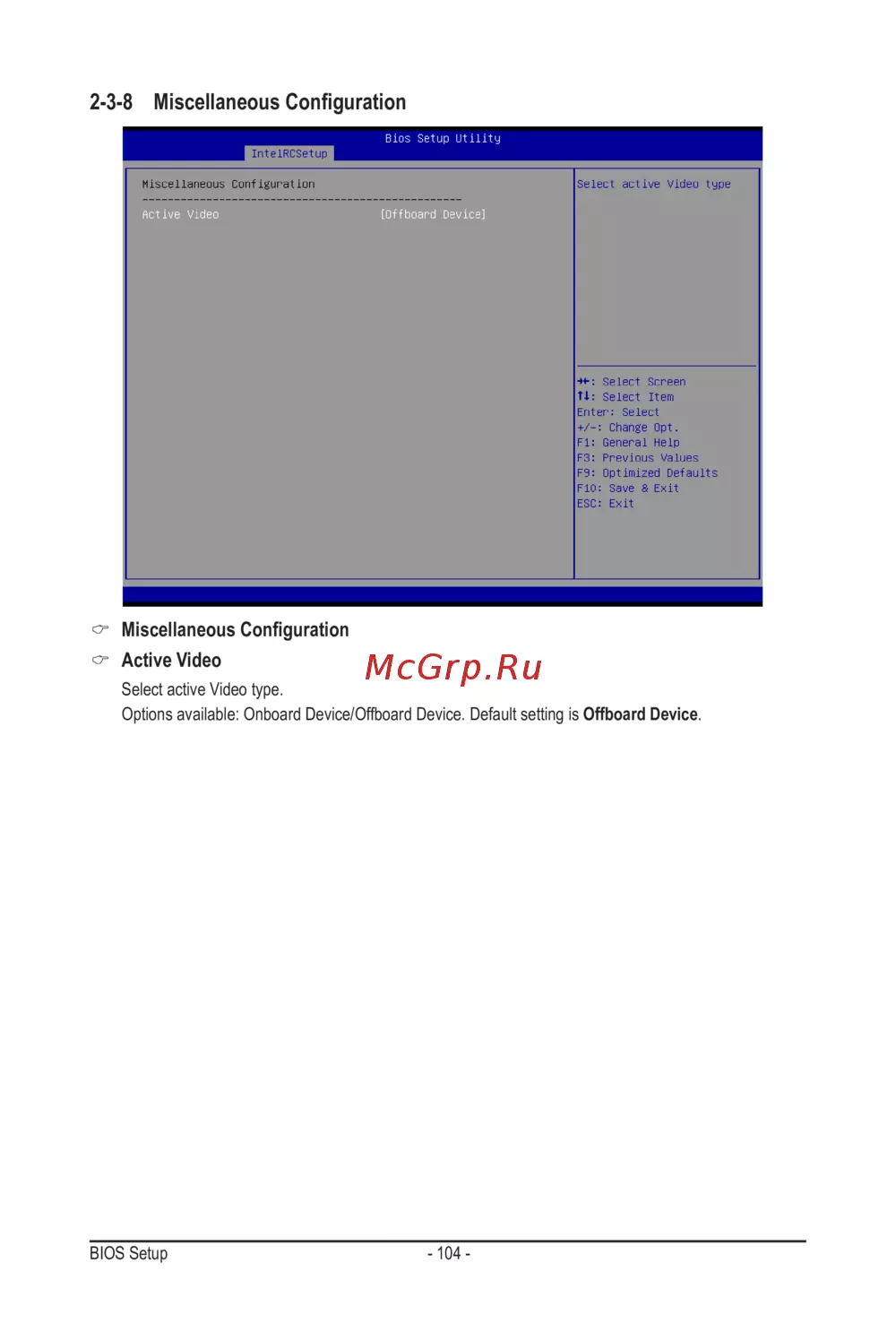

Gigabyte MW50-SV0 (rev. 1.0) [104/132] Miscellaneousconfiguration active video

BIOS Setup - 104 -

2-3-8 MiscellaneousConguration

 MiscellaneousConguration

Active Video

Select active Video type.

Options available: Onboard Device/Offboard Device. Default setting is Offboard Device.
