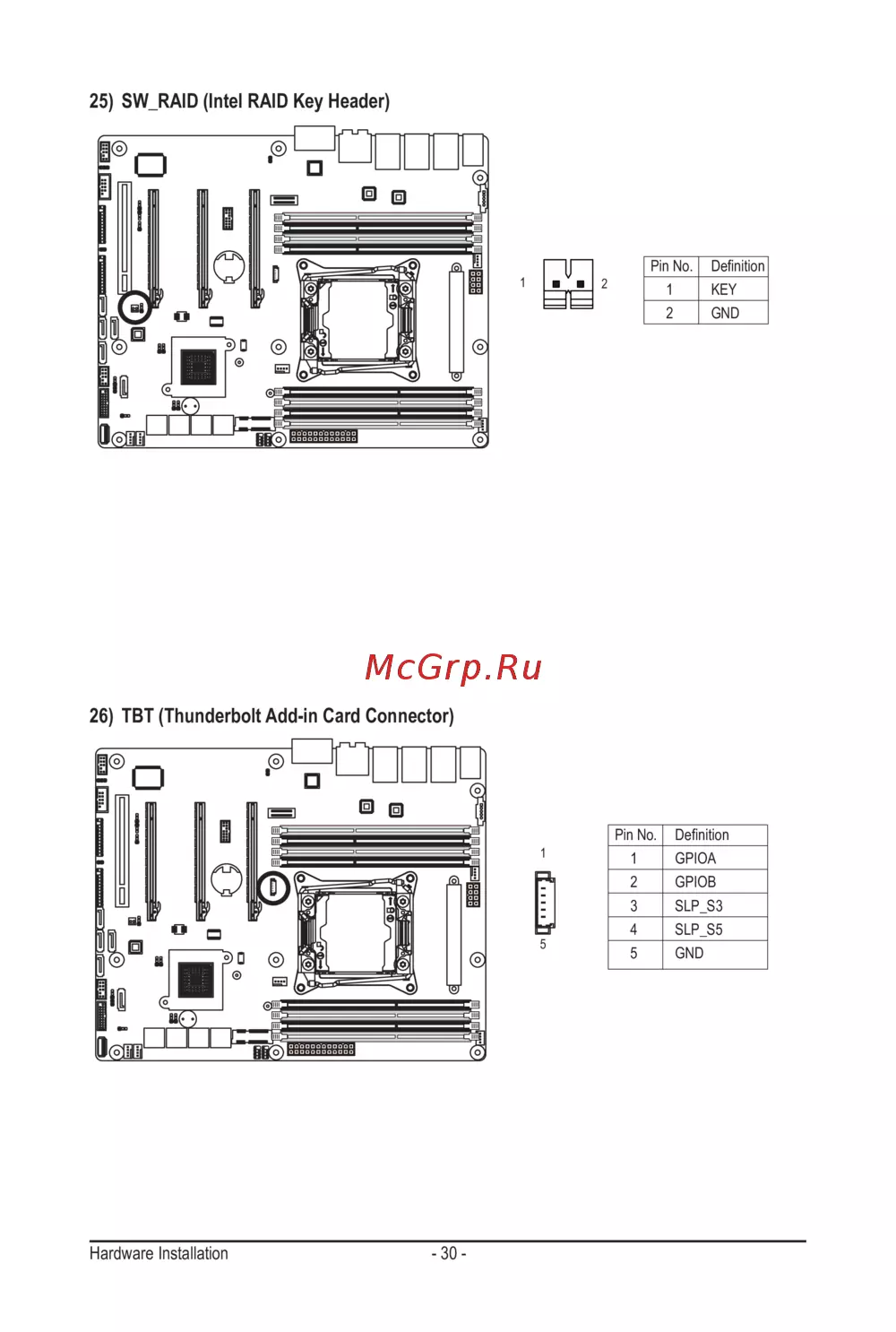

Gigabyte MW50-SV0 (rev. 1.0) [30/132] Tbt thunderbolt add in card connector

Hardware Installation - 30 -

25) SW_RAID (Intel RAID Key Header)

26) TBT (Thunderbolt Add-in Card Connector)

PinNo. Denition

1 KEY

2 GND

PinNo. Denition

1 GPIOA

2 GPIOB

3 SLP_S3

4 SLP_S5

5 GND
