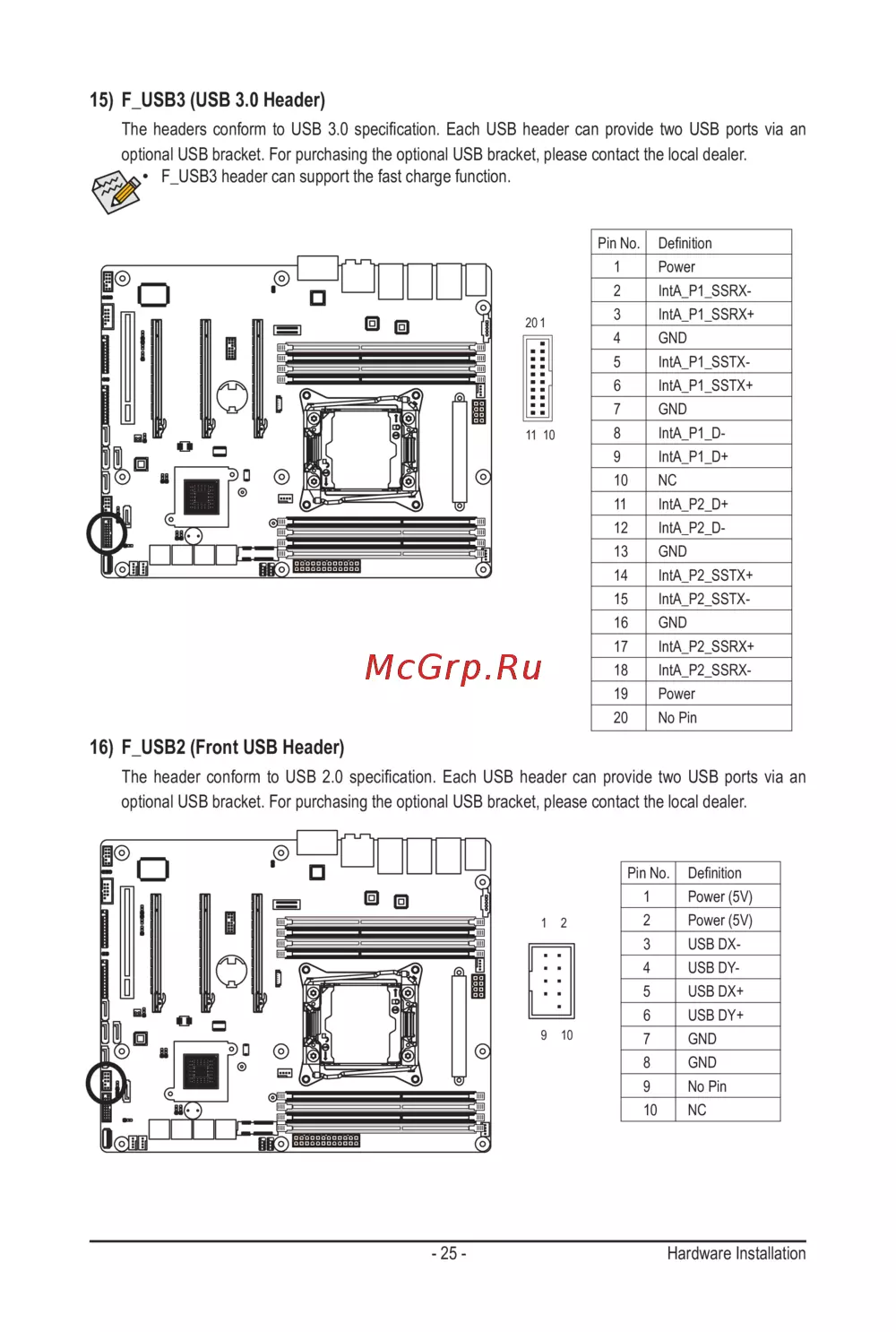

- 25 - Hardware Installation
15) F_USB3 (USB 3.0 Header)
TheheadersconformtoUSB3.0specication.EachUSBheadercanprovidetwoUSBportsvia an
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
PinNo. Denition
1 Power
2 IntA_P1_SSRX-
3 IntA_P1_SSRX+
4 GND
5 IntA_P1_SSTX-
6 IntA_P1_SSTX+
7 GND
8 IntA_P1_D-
9 IntA_P1_D+
10 NC
11 IntA_P2_D+
12 IntA_P2_D-
13 GND
14 IntA_P2_SSTX+
15 IntA_P2_SSTX-
16 GND
17 IntA_P2_SSRX+
18 IntA_P2_SSRX-
19 Power
20 No Pin
1
20
1011
PinNo. Denition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB DY-
5 USB DX+
6 USB DY+
7 GND
8 GND
9 No Pin
10 NC
16) F_USB2 (Front USB Header)
Theheaderconformto USB2.0 specication.EachUSB headercan providetwoUSB portsvia an
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
DEBUG
PORT
G.QBOFM
1 2
9 10
•
F_USB3 header can support the fast charge function.
