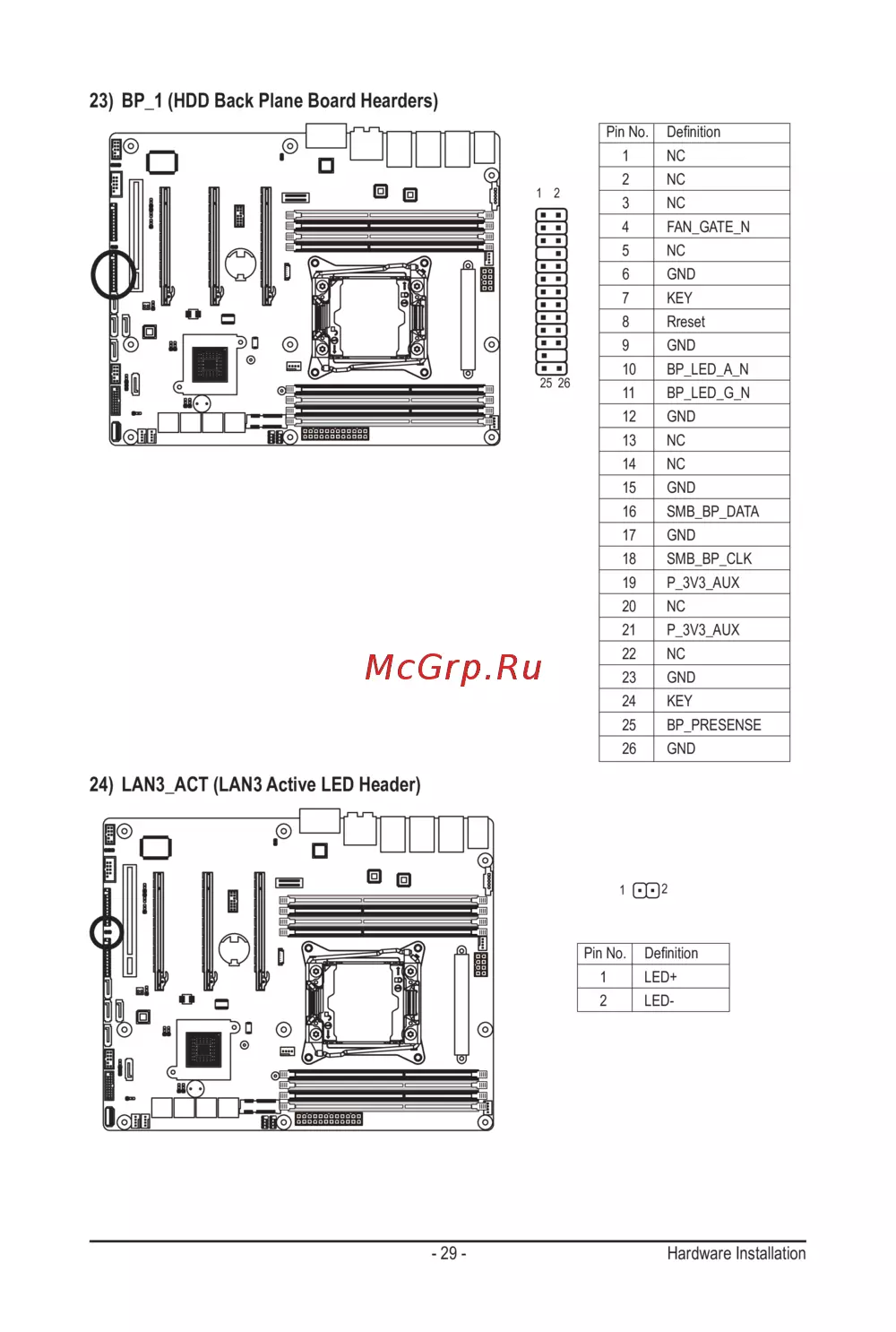

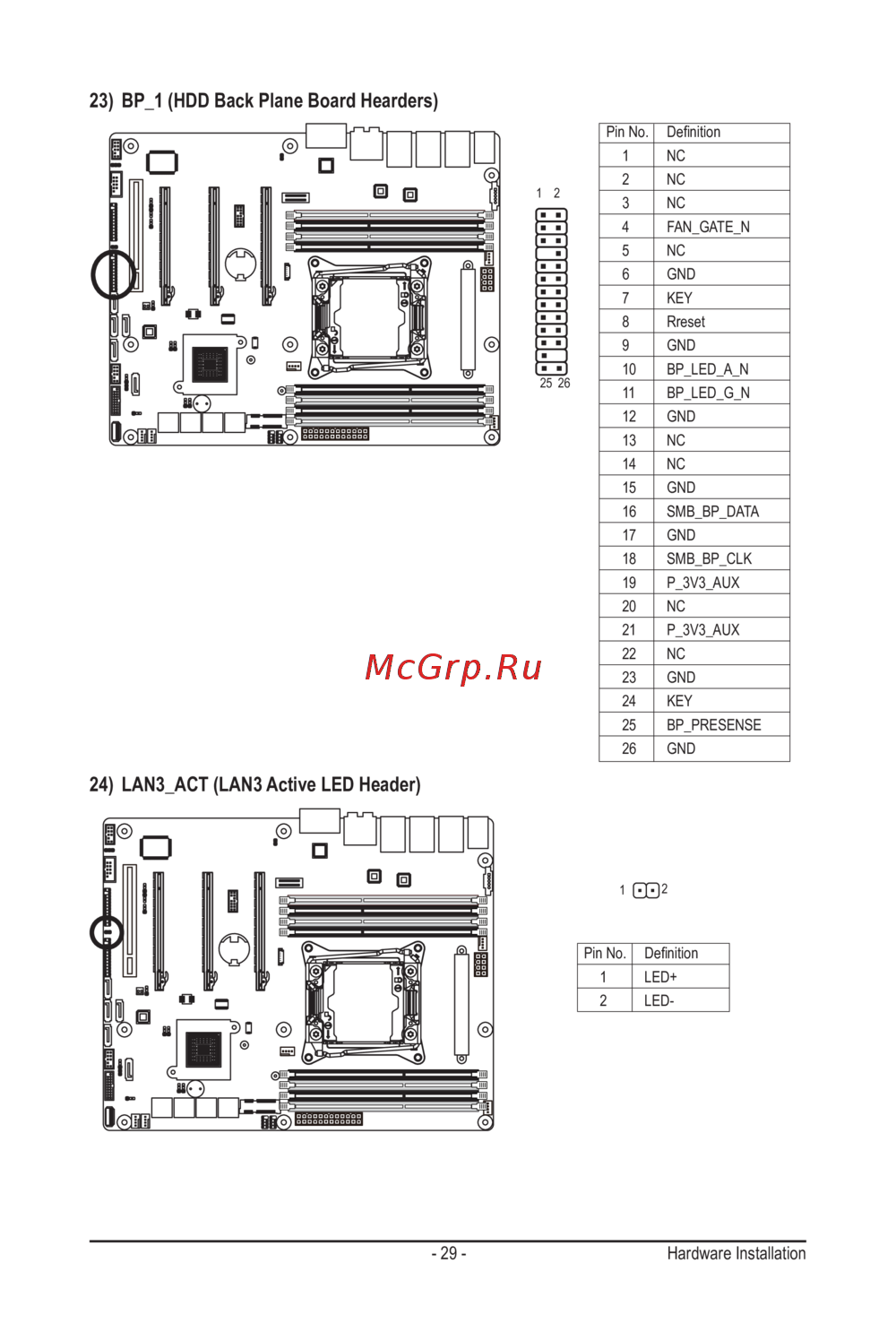

Gigabyte MW50-SV0 (rev. 1.0) [29/132] Lan3_act lan3 active led header

- 29 - Hardware Installation

23) BP_1 (HDD Back Plane Board Hearders)

2625

PinNo. Denition

1 NC

2 NC

3 NC

4 FAN_GATE_N

5 NC

6 GND

7 KEY

8 Rreset

9 GND

10 BP_LED_A_N

11 BP_LED_G_N

12 GND

13 NC

14 NC

15 GND

16 SMB_BP_DATA

17 GND

18 SMB_BP_CLK

19 P_3V3_AUX

20 NC

21 P_3V3_AUX

22 NC

23 GND

24 KEY

25 BP_PRESENSE

26 GND

24) LAN3_ACT (LAN3 Active LED Header)

PinNo. Denition

1 LED+

2 LED-
