INSTALLATIONS NOTES

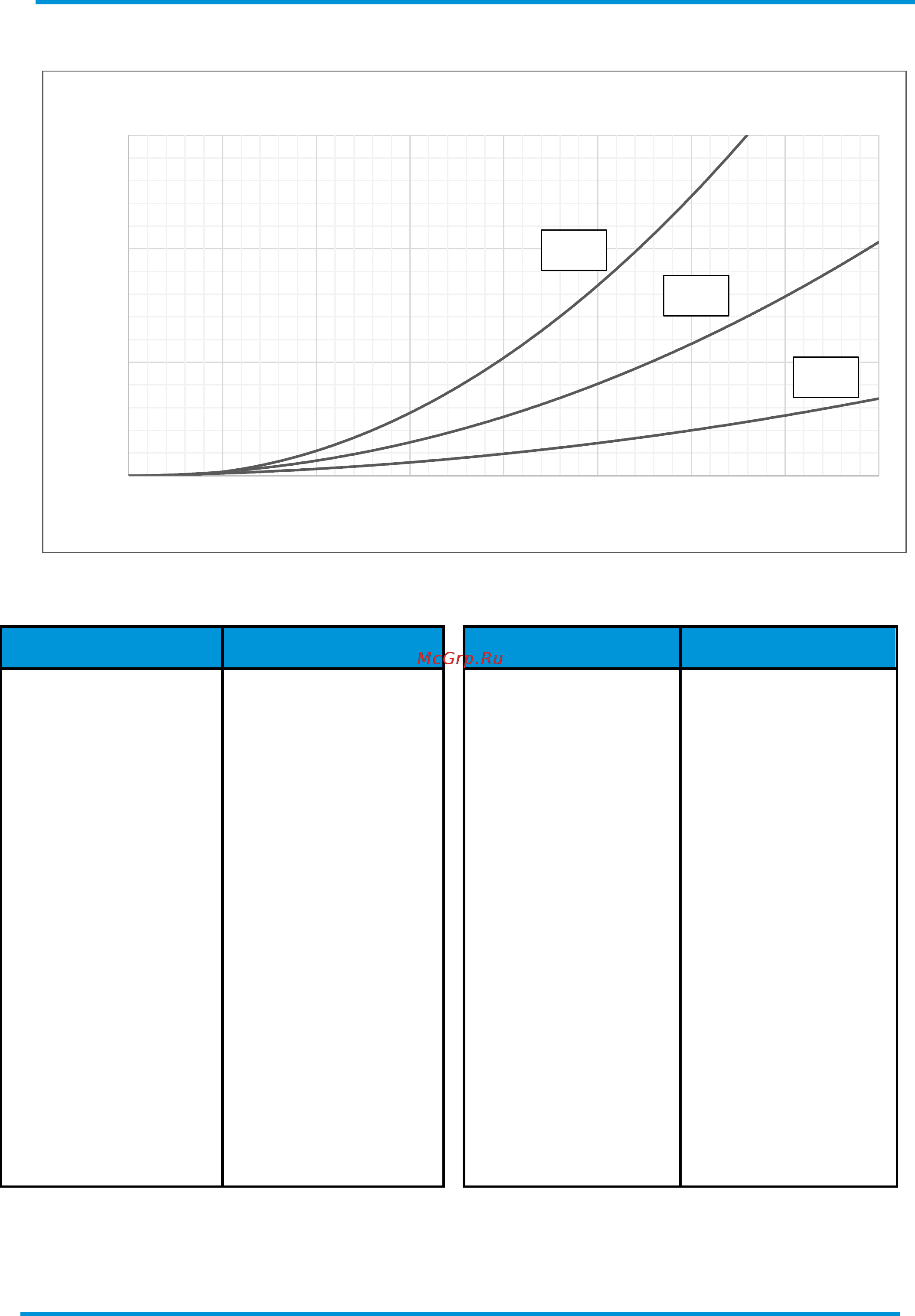

Water filter pressure drops
Starting current with soft starter
Tank volume (Hydronic kit with tank)
MODEL
LRA
[A]
MODEL
LRA
[A]
MODEL
Vol
[l]
MODEL
Vol
[l]
EWAT085B-SS(L)(R)A1
156
EWAT085B-XS(L)(R)A1
158
EWAT085B-SS(L)(R)A1
70
EWAT085B-XS(L)(R)A1
145
EWAT115B-SS(L)(R)A1
196
EWAT115B-XS(L)(R)A1
198
EWAT115B-SS(L)(R)A1
145
EWAT115B-XS(L)(R)A1
190
EWAT135B-SS(L)(R)A1
207
EWAT145B-XS(L)(R)A1
211
EWAT135B-SS(L)(R)A1
145
EWAT145B-XS(L)(R)A1
190
EWAT155B-SS(L)(R)A2
226
EWAT180B-XS(L)(R)A2
232
EWAT155B-SS(L)(R)A2
190
EWAT180B-XS(L)(R)A2
300
EWAT175B-SS(L)(R)A1
328
EWAT185B-XS(L)(R)A1
330
EWAT175B-SS(L)(R)A1
190
EWAT185B-XS(L)(R)A1
250
EWAT195B-SS(L)(R)A2
266
EWAT200B-XS(L)(R)A2
272
EWAT195B-SS(L)(R)A2
250
EWAT200B-XS(L)(R)A2
300
EWAT205B-SS(L)(R)A2
277
EWAT220B-XS(L)(R)A2
283
EWAT205B-SS(L)(R)A2
250
EWAT220B-XS(L)(R)A2
300
EWAT215B-SS(L)(R)A1
364
EWAT230B-XS(L)(R)A1
368
EWAT215B-SS(L)(R)A1
250
EWAT230B-XS(L)(R)A1
400
EWAT240B-SS(L)(R)A2
295
EWAT250B-XS(L)(R)A2
299
EWAT240B-SS(L)(R)A2
300
EWAT250B-XS(L)(R)A2
400
EWAT260B-SS(L)(R)A2
306
EWAT280B-XS(L)(R)A2
406
EWAT260B-SS(L)(R)A2
300
EWAT280B-XS(L)(R)A2
400
EWAT290B-SS(L)(R)A1
409
EWAT300B-XS(L)(R)A1
417
EWAT290B-SS(L)(R)A1
300
EWAT300B-XS(L)(R)A1
400
EWAT310B-SS(L)(R)A2
434
EWAT310B-XS(L)(R)A2
417
EWAT310B-SS(L)(R)A2
400
EWAT310B-XS(L)(R)A2
400
EWAT330B-SS(L)(R)A2
446
EWAT320B-XS(L)(R)A2
429
EWAT330B-SS(L)(R)A2
400
EWAT320B-XS(L)(R)A2
400
EWAT340B-SS(L)(R)A1
449
EWAT360B-XS(L)(R)A1
453
EWAT340B-SS(L)(R)A1
400
EWAT360B-XS(L)(R)A1
600
EWAT350B-SS(L)(R)A2
457
EWAT370B-XS(L)(R)A2
465
EWAT350B-SS(L)(R)A2
400
EWAT370B-XS(L)(R)A2
600
EWAT420B-SS(L)(R)A2
498
EWAT430B-XS(L)(R)A2
502
EWAT420B-SS(L)(R)A2
600
EWAT430B-XS(L)(R)A2
600
EWAT460B-SS(L)(R)A2
543
EWAT470B-XS(L)(R)A2
539
EWAT460B-SS(L)(R)A2
600
EWAT470B-XS(L)(R)A2
600
EWAT510B-SS(L)(R)A2
579
EWAT540B-XS(L)(R)A2
587
EWAT510B-SS(L)(R)A2
600
EWAT540B-XS(L)(R)A2
600
EWAT570B-SS(L)(R)A2
624
EWAT600B-XS(L)(R)A2
640
EWAT570B-SS(L)(R)A2
600
EWAT600B-XS(L)(R)A2
750
EWAT610B-SS(L)(R)A2
661
EWAT660B-XS(L)(R)A2
677
EWAT610B-SS(L)(R)A2
600
EWAT660B-XS(L)(R)A2
750
EWAT670B-SS(L)(R)A2
701
EWAT700B-XS(L)(R)A2
713
EWAT670B-SS(L)(R)A2
750
EWAT700B-XS(L)(R)A2
750
0
50
100
150
0 5 10 15 20 25 30 35 40
External pressure head [kPa]
Water flow [l/s]
Water filter pressure drops
2.5"
3"
4"
