INSTALLATIONS NOTES
Warning Installation and maintenance of the unit must be performed only by qualified personnel who have
knowledge with local codes and regulations and experience with this type of equipment. unit installation in places
that could be considered dangerous for maintenance operations must be avoided.
Location The units are produced for outdoor installation on roofs, floors or below ground level on condition that
the area is free from obstacles for the passage of the condenser air. The unit should be positioned on solid
foundations and perfectly leveled; in the case of installation on roofs or floors, it may be advisable to arrange
the use of suitable weight distribution beams. When the units are installed on the ground, a concrete base at
least 250 mm wider and longer than the unit’s footprint should be laid. Furthermore, this base should withstand
the unit weight mentioned in the technical data table.
Space requirements The units are air-cooled, then it is important to respect the minimum distances
which guarantee the best ventilation of the condenser coils. Limitations of space reducing the air flow could
cause significant reductions in cooling capacity and an increase in electricity consumption.
To determinate unit placement, careful consideration must be given to assure a sufficient air flow across the
condenser heat transfer surface. Two conditions must be avoided to achieve the best performance: warm air
recirculation and coil starvation. Both these conditions cause an increase of condensing pressures that results in
reductions in unit efficiency and capacity. Moreover, the unique microprocessor can evaluate the operating
environment of the air-cooled chiller and is capable to optimize performances staying on-line during abnormal
conditions.

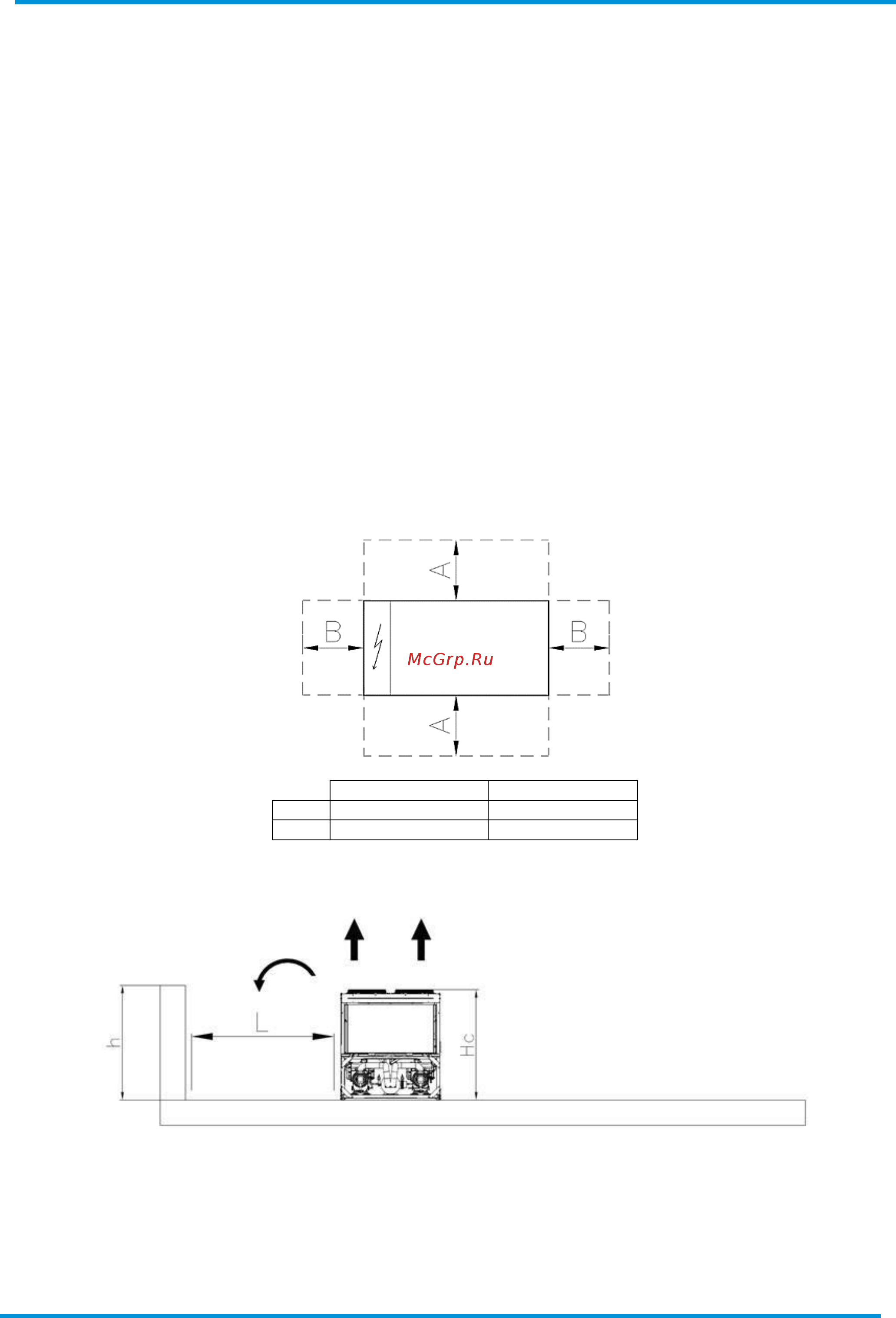

Each side of the unit must be accessible after installation for periodic service. The following pictures shows you
minimum recommended clearance requirements.
Single V
Multi V
A
1100 mm
2200 mm
B
1100 mm
1500 mm
For single chiller installation in proximity of a wall the following indications are recommended:
-
if h < Hc → L must at least 3 m for multi-V layout units or 1.8m for single-V layout units
-
if h ≥ Hc or L lower than recommended contact Daikin representative to evaluate possible arrangements
In case two chillers installed side by side in free filed, the minimum distance recommended between the chillers
is indicated in the below picture
