- 105 - BIOS Setup

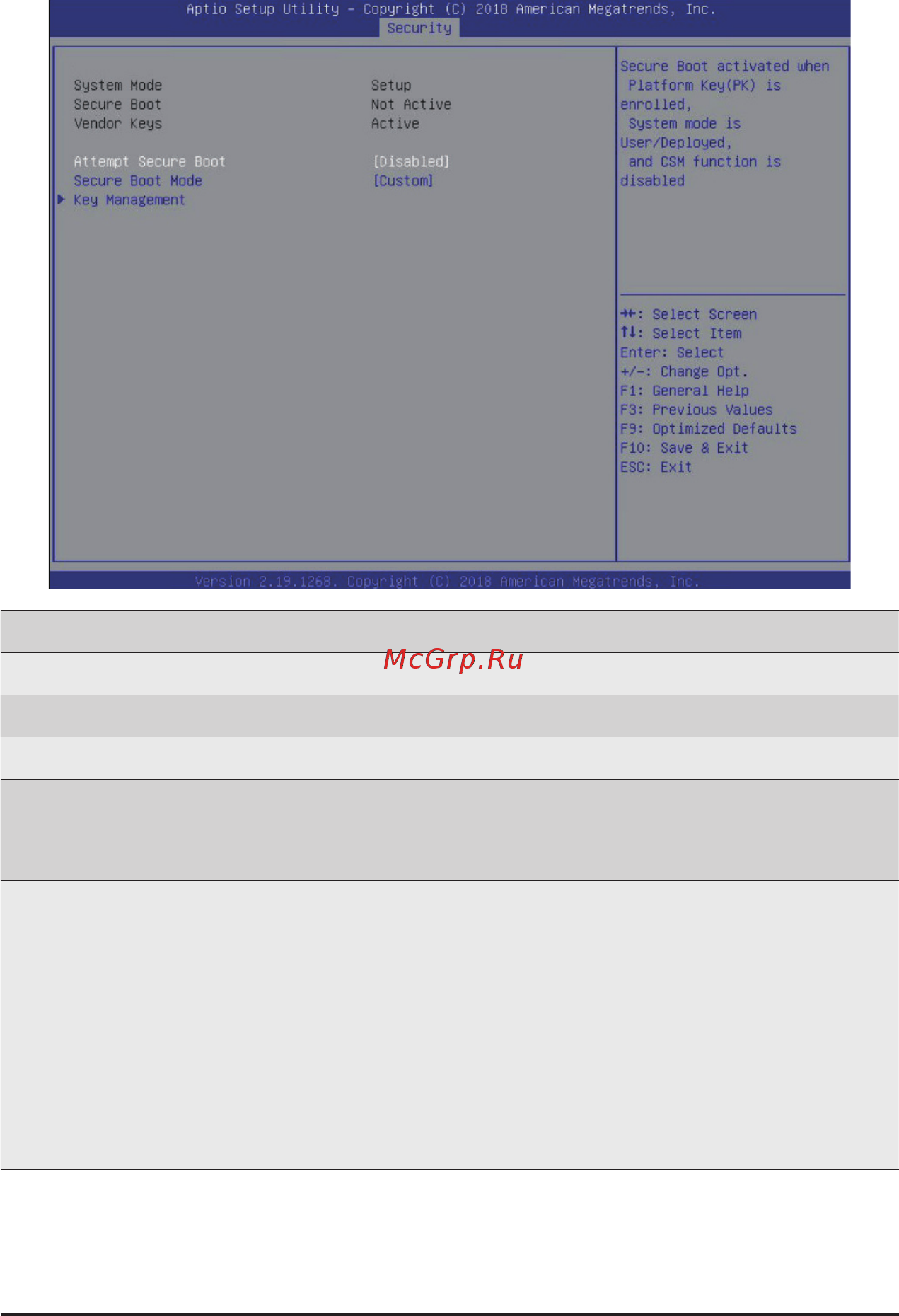

5-5-1 Secure Boot
The Secure Boot submenu is applicable when your device is installed the Windows
®
8 (or above) operating
system.
(Note) Advanced items prompt when this item is set to Custom.
Parameter
Description
System Mode
Displays the system is in User mode or Setup mode.
Secure Boot
Displays the Secure Boot function is active or not active.
Vendor Keys
Displays the Vendor Keys function is active or not active.
Attempt Secure Boot
Secure Boot activated when Platform Key (PK) is enrolled, System mode
is User/Deployed, and CSM function is disabled.
Options available: Enabled/Disabled. Default setting is Disabled.
Secure Boot Mode
(Note)
Secure Boot requires all the applications that are running during the
booting process to be pre-signed with valid digital certicates. This way,
the system knows all the les being loaded before Windows loads and
gets to the login screen have not been tampered with.
When set to Standard, it will automatically load the Secure Boot keys
form the BIOS databases.
When set to Custom, you can customize the Secure Boot settings and
manually load its keys from the BIOS database.
Options available: Standard/Custom. Default setting is Custom.
