Gigabyte G481-H81 (rev. 100) [18/120] 2 rear view

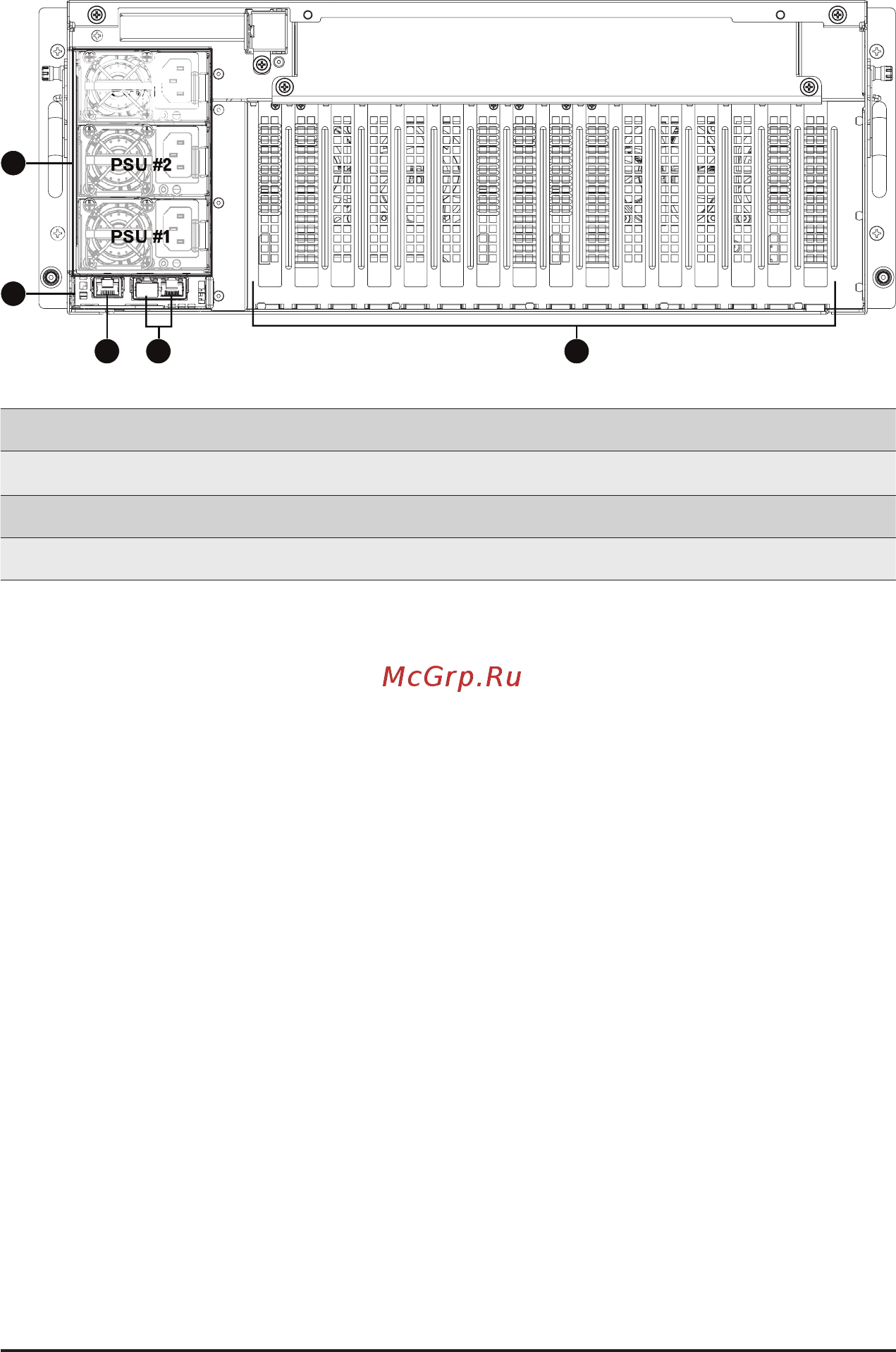

System Appearance - 18 -

2-2 Rear View

PSU #1

PSU #2

PSU #3

123

No.

Description

No.

Description

PCIe x16 Slot x 8

LAN Module

10GbE LAN Port x 2 (optional)

Power Supply Unit x 3 (PSU #1 to #3)

10/100/1000 Server Management LAN Port

-- --
