System Hardware Installation - 41 -

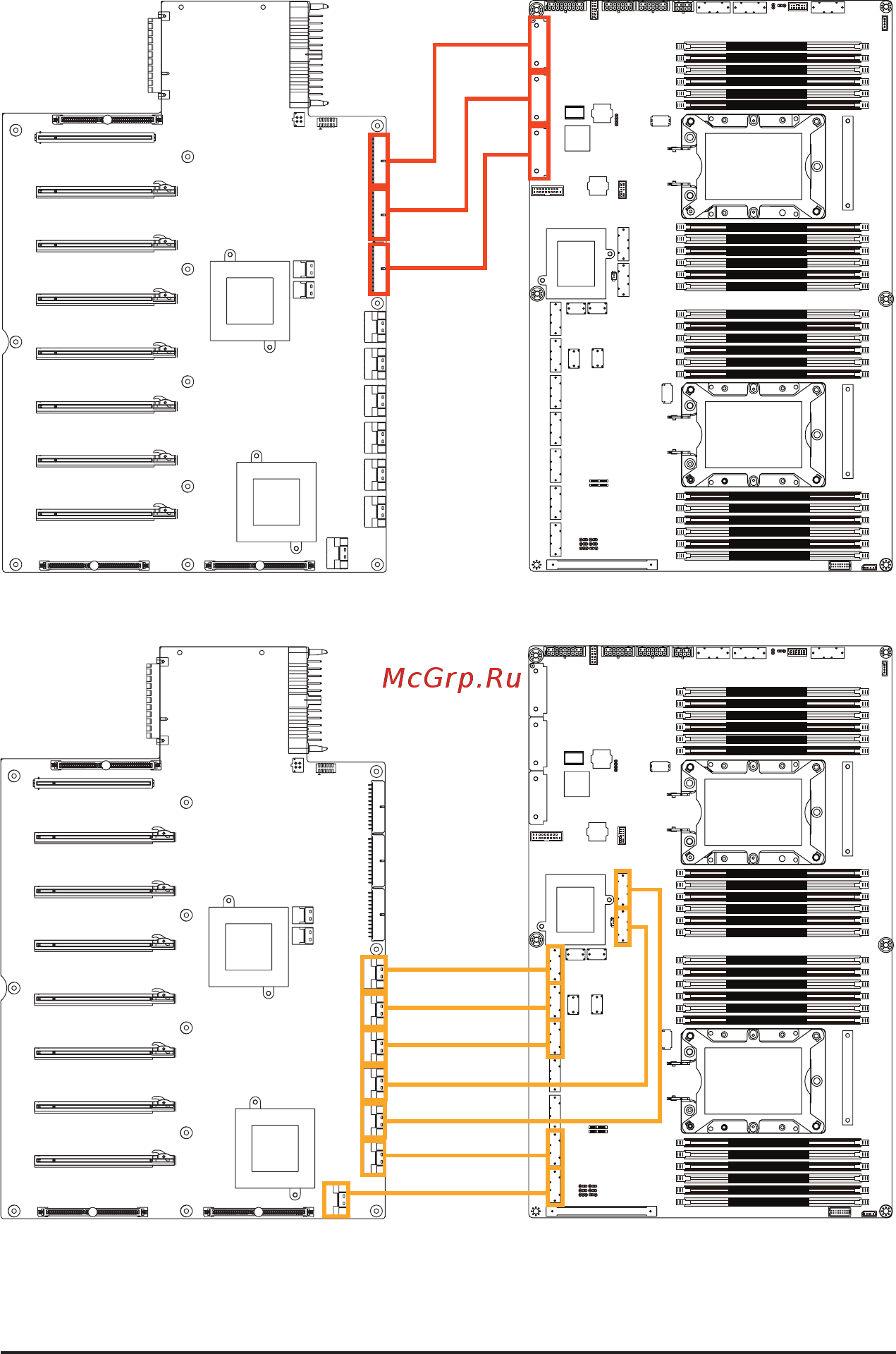

3-12 Cable Connections
3-12-1 Motherboard CPU & System Power to PCIe Board
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_E0
DIMM_P0_E1
DIMM_P0_F0
DIMM_P0_F1
DIMM_P0_C1
DIMM_P0_C0
DIMM_P1_L0
DIMM_P1_L1
DIMM_P1_K0
DIMM_P1_K1
DIMM_P1_J0
DIMM_P1_J1
DIMM_P1_G1
DIMM_P1_G0
DIMM_P1_H1
DIMM_P1_H0
DIMM_P1_I1
DIMM_P1_I0
DIMM_P0_B1
DIMM_P0_B0
DIMM_P0_A1
DIMM_P0_A0
&38
3ULPDU\
&38
6HFRQGDU\
3-12-2 Motherboard Slimline 8i to PCIe Board
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_E0
DIMM_P0_E1
DIMM_P0_F0
DIMM_P0_F1
DIMM_P0_C1
DIMM_P0_C0
DIMM_P1_L0
DIMM_P1_L1
DIMM_P1_K0
DIMM_P1_K1
DIMM_P1_J0
DIMM_P1_J1
DIMM_P1_G1
DIMM_P1_G0
DIMM_P1_H1
DIMM_P1_H0
DIMM_P1_I1
DIMM_P1_I0
DIMM_P0_B1
DIMM_P0_B0
DIMM_P0_A1
DIMM_P0_A0
&38
3ULPDU\
&38
6HFRQGDU\
