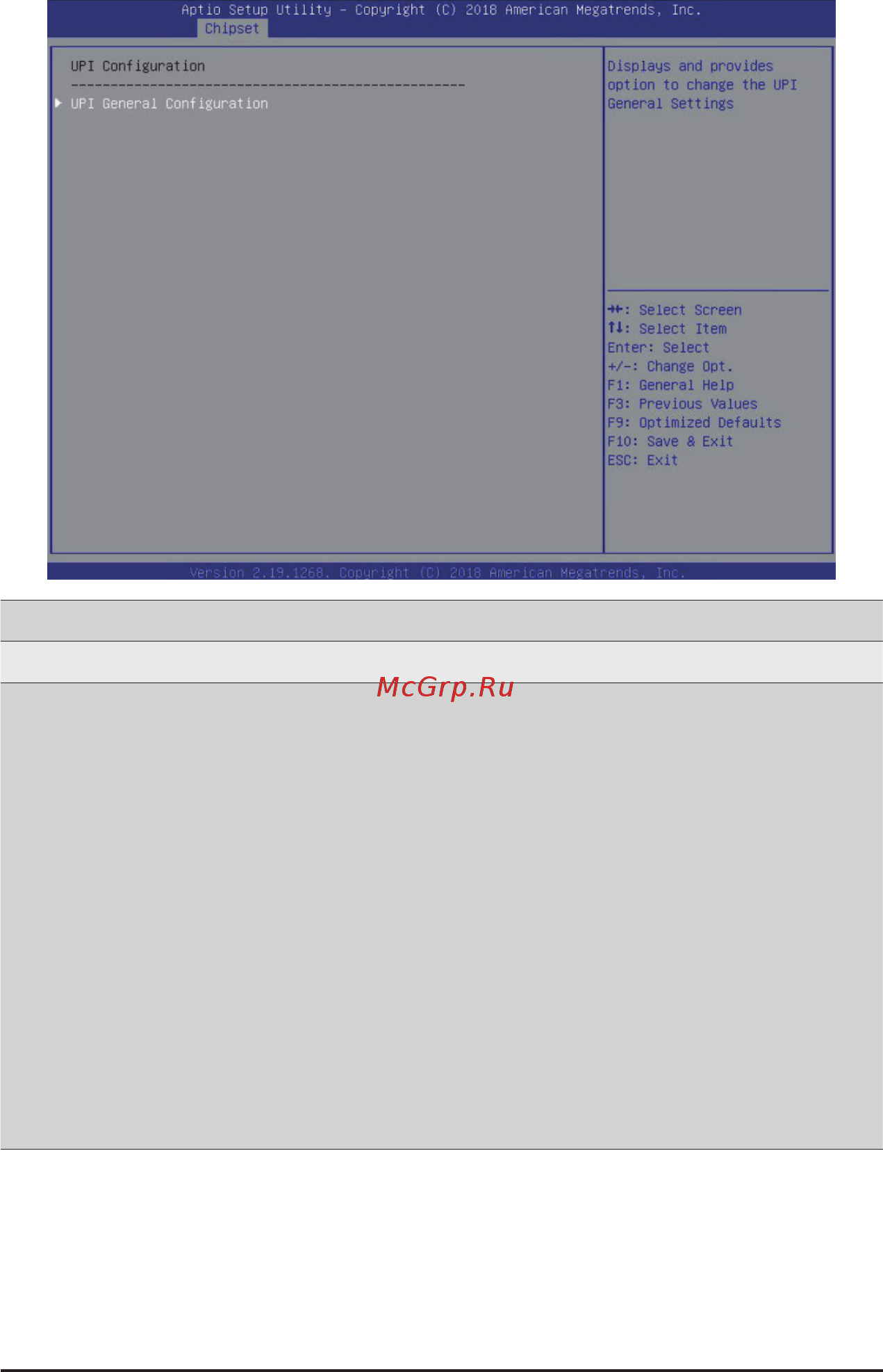

5-3-3 UPI Conguration

Parameter

Description

UPI Conguration

UPI General Conguration

Press [Enter] to congure advanced items.



UPI Status

– Press [Enter] to view the UPI status.



Link Frequency Select

– Selects the UPI link frequency.

– Options available: 9.6GB/10.4GB/Auto. Default setting is Auto.



SNC

– Enable/Disable SNC.

– Options available: Disable/Enable/Auto. Default setting is Disable.



Stale AtoS

– Enable/Disable Stale A to S Dir optimization.

– Options available: Disable/Enable/Auto. Default setting is Disable.



LLC dead line alloc

– Enable/Disable LLC dead line alloc.

– Options available: Disable/Enable/Auto. Default setting is Auto.
