- 17 - System Appearance
Chapter 2 System Appearance

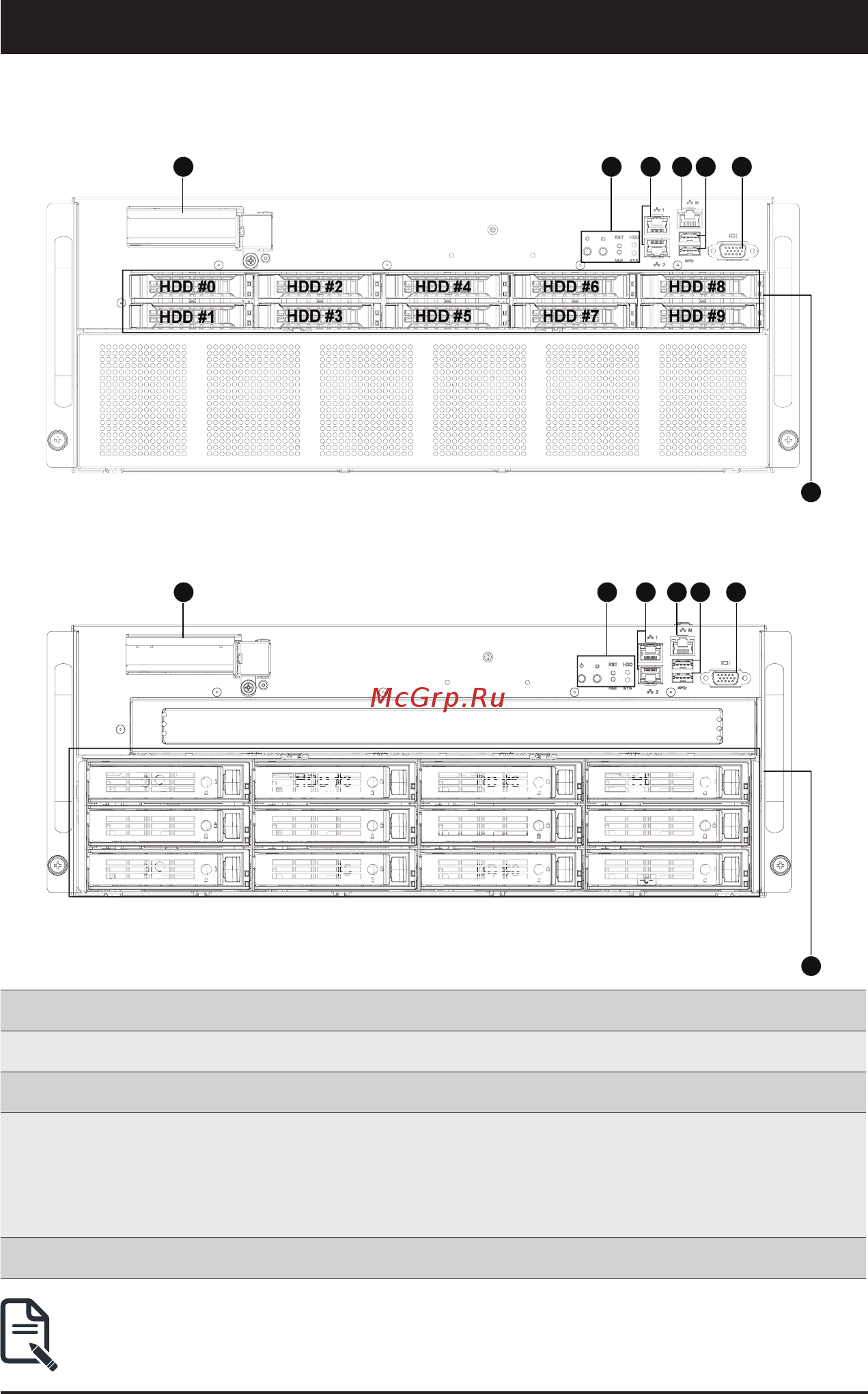

2-1 Front View
G481-H80
HDD #0
HDD #1
HDD #2
HDD #3
HDD #4
HDD #5
HDD #6
HDD #7
HDD #8
HDD #9
7
1 2 3 4 5 6
• Go to the section 2-3 Front Panel Buttons and LEDs for detail description of function
LEDs.
No.
Description
No.
Description
1.
PCIe Card Slot
5.
USB 3.0 Port x 2
2.
Front Panel LEDs and Buttons
6.
VGA Port
3.
1 GbE LAN Port x 2
7.
2.5-inch HDD Bay x 10 (#0 to #9)
*SATA supported only: #0 to #5
*Both SATA and NVMe supported: #6 to #7
*NVMe supported only: #8 to #9
4.
10/100/1000 Server Management LAN Port
G481-H80
HDD #0
HDD #1
HDD #2
HDD #3
HDD #4
HDD #5
HDD #6
HDD #7
HDD #8
HDD #9
HDD #10
HDD #11
7
1 2 3 4 5 6
