Gigabyte G481-H81 (rev. 100) [52/120] 2 advanced menu

BIOS Setup - 52 -

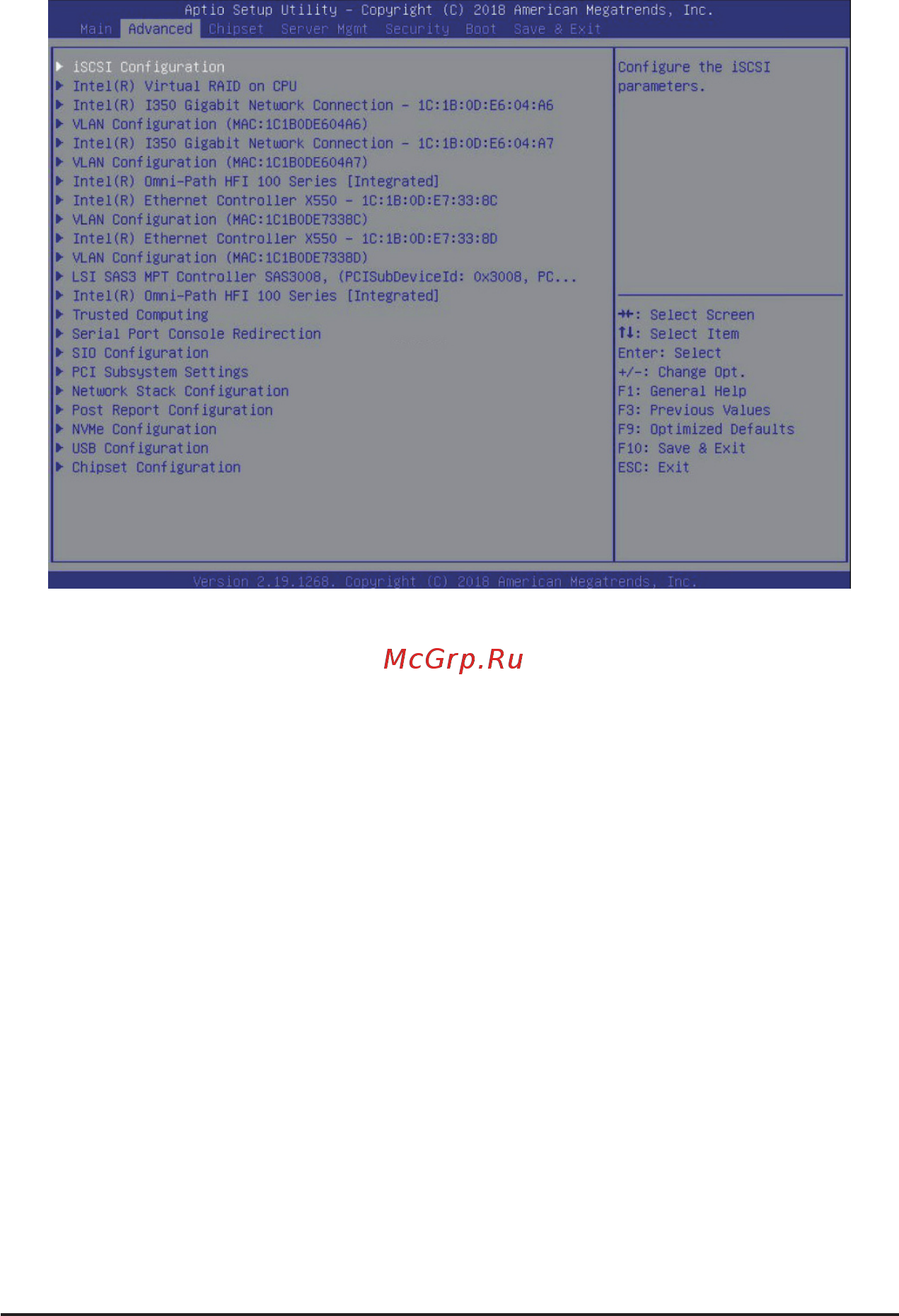

5-2 Advanced Menu

The Advanced menu display submenu options for conguring the function of various hardware components.

Select a submenu item, then press <Enter> to access the related submenu screen.
