Gigabyte G481-H81 (rev. 100) [54/120] 2 2 intel r virtual raid on cpu

BIOS Setup - 54 -

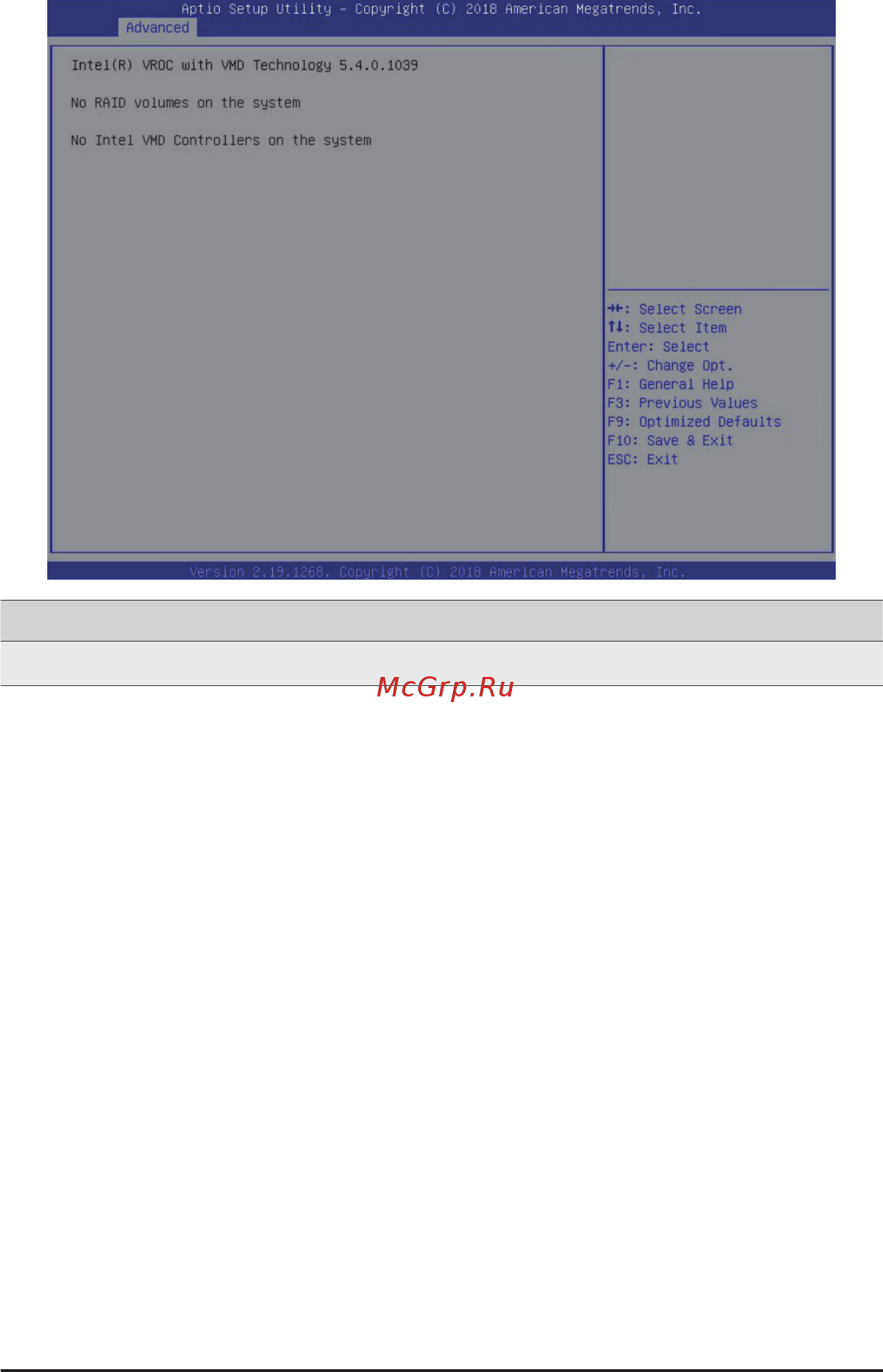

5-2-2 Intel(R) Virtual RAID on CPU

Parameter

Description

Intel(R) Virtual RAID on CPU

Press [Enter] to manage Intel® Virtual RAID on the CPU.
