System Hardware Installation - 32 -
3-4-5 Intel Optane DCPMM DIMM Population Rule
Thermal conditions for DCPMM DIMM support:
• The ambient temperature must be at or below 35°C
• The Cascade Lake CPU used must have a maximum TDP of 205W
• A maximum of 12 pcs 256G DCPMM may be installed
• RDIMM / DCPMM must be installed into CPU0 memory rst
• You must install one RDIMM into any slot #0 of CPU0 before installing the DCPMM.
(e.g. A0/B0/C0/D0/E0/F0)
• The DCPMM must be installed into the DIMM slot #1 next to the corresponding RDIMM
in slot #0 (e.g. if RDIMM is installed into DIMM slot A0, the DCPMM must be installed into
DIMM slot A1)

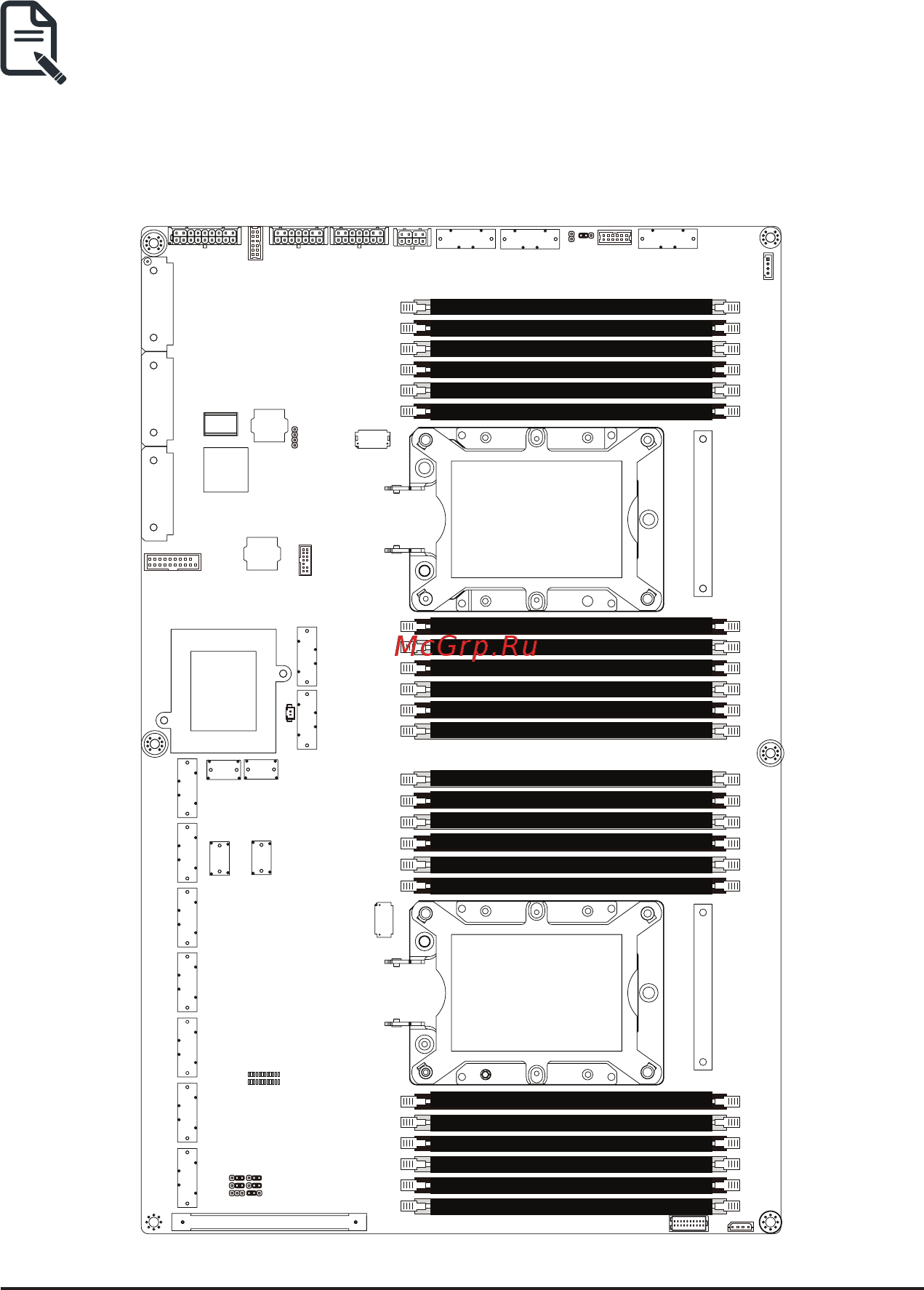

DIMM_P0_D0/RDIMM Slot
DIMM_P0_D1/Intel Optane DCPMM Slot
DIMM_P0_E0/RDIMM Slot
DIMM_P0_E1/Intel Optane DCPMM Slot
DIMM_P0_F0/RDIMM Slot
DIMM_P0_F1/Intel Optane DCPMM Slot
DIMM_P1_L0/RDIMM Slot
DIMM_P1_L1/Intel Optane DCPMM Slot
DIMM_P1_K0/RDIMM Slot
DIMM_P1_K1/Intel Optane DCPMM Slot
DIMM_P1_J0/RDIMM Slot
DIMM_P1_J1/Intel Optane DCPMM Slot
DIMM_P1_G1/Intel Optane DCPMM Slot
DIMM_P1_G0/RDIMM Slot
DIMM_P1_H1/Intel Optane DCPMM Slot
DIMM_P1_H0/RDIMM Slot
DIMM_P1_I1/Intel Optane DCPMM Slot
DIMM_P1_I0/RDIMM Slot
DIMM_P0_C1/Intel Optane DCPMM Slot
DIMM_P0_C0/RDIMM Slot
DIMM_P0_B1/Intel Optane DCPMM Slot
DIMM_P0_B0/RDIMM Slot
DIMM_P0_A1/Intel Optane DCPMM Slot
DIMM_P0_A0/RDIMM Slot
&38
3ULPDU\
&38
6HFRQGDU\
