Gigabyte H270-F4G (rev. 100) [105/125] 3 10 2 memory error enabling

- 105 - BIOS Setup

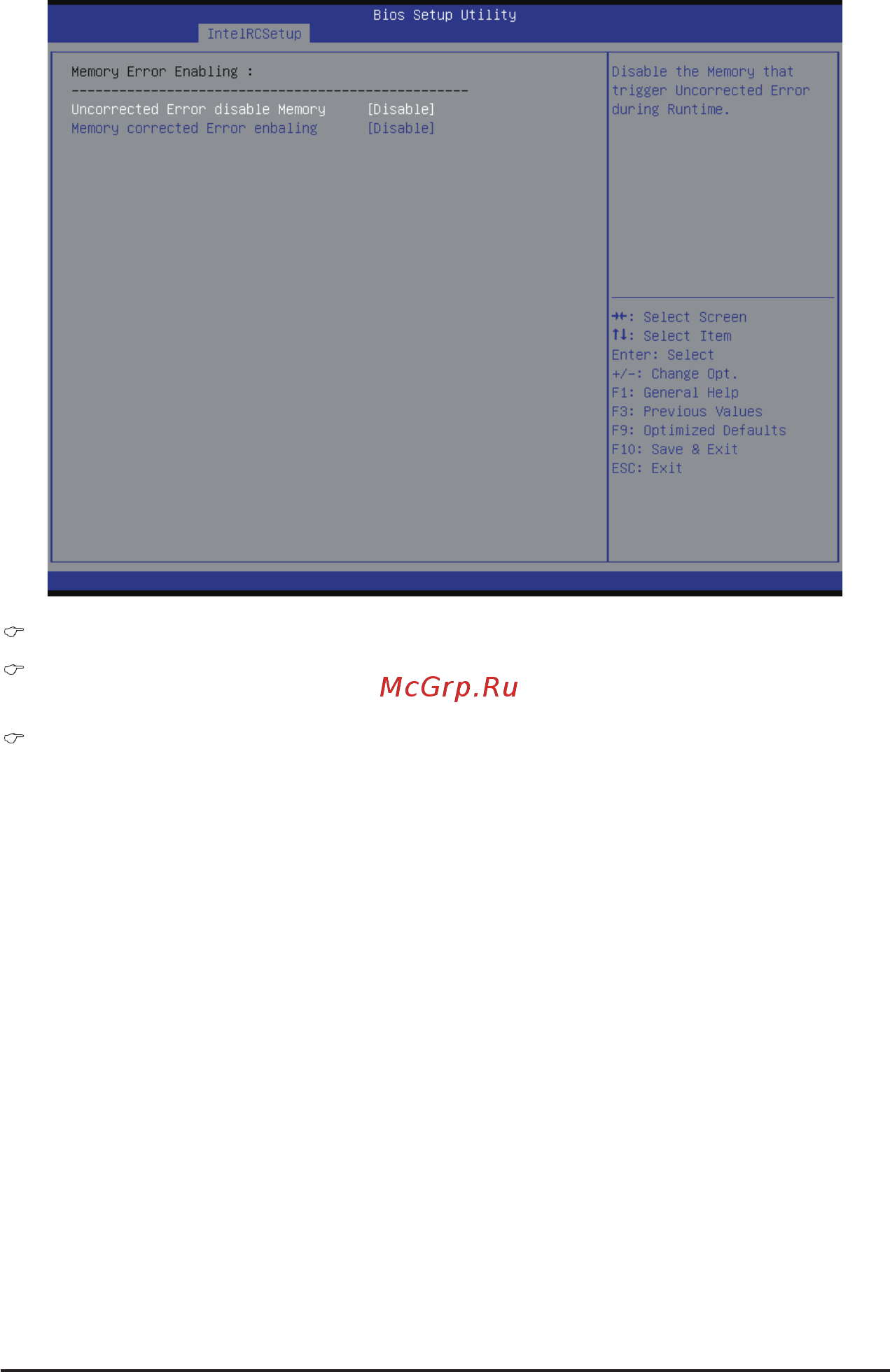

5-3-10-2 Memory Error Enabling

Memory Error Enabling

Un-Correctable Errors disable Memory

Options available: Enabled/Disabled. Default setting is Disabled.

Memory corrected Errors enabling

Options available: Enabled/Disabled. Default setting is Disabled.
