Gigabyte H270-F4G (rev. 100) [110/125] 4 2 view fru information

BIOS Setup - 110 -

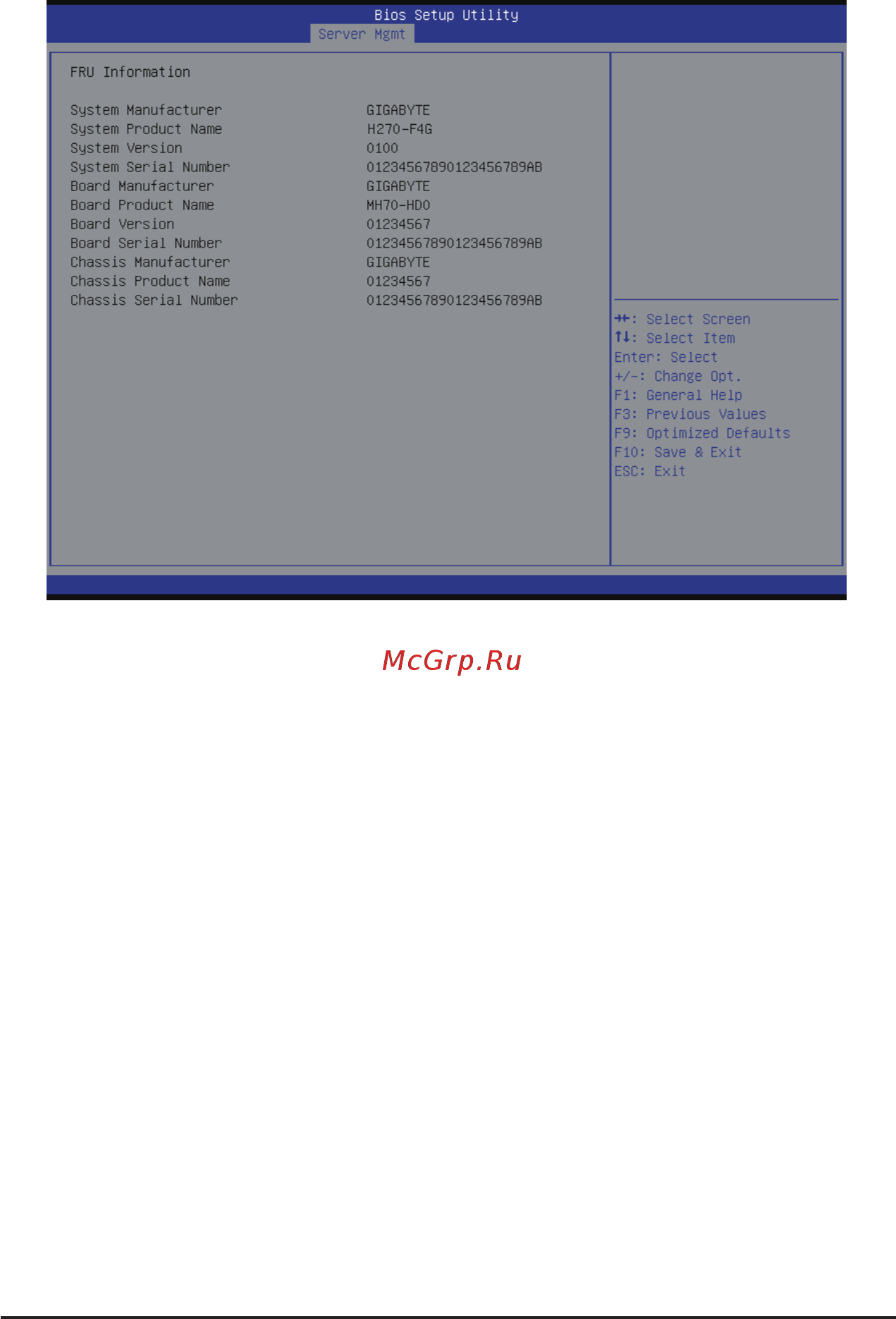

5-4-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product

information. Items on this window are non-congurable.
