Gigabyte H270-F4G (rev. 100) [51/125] 2 advanced menu

- 51 - BIOS Setup

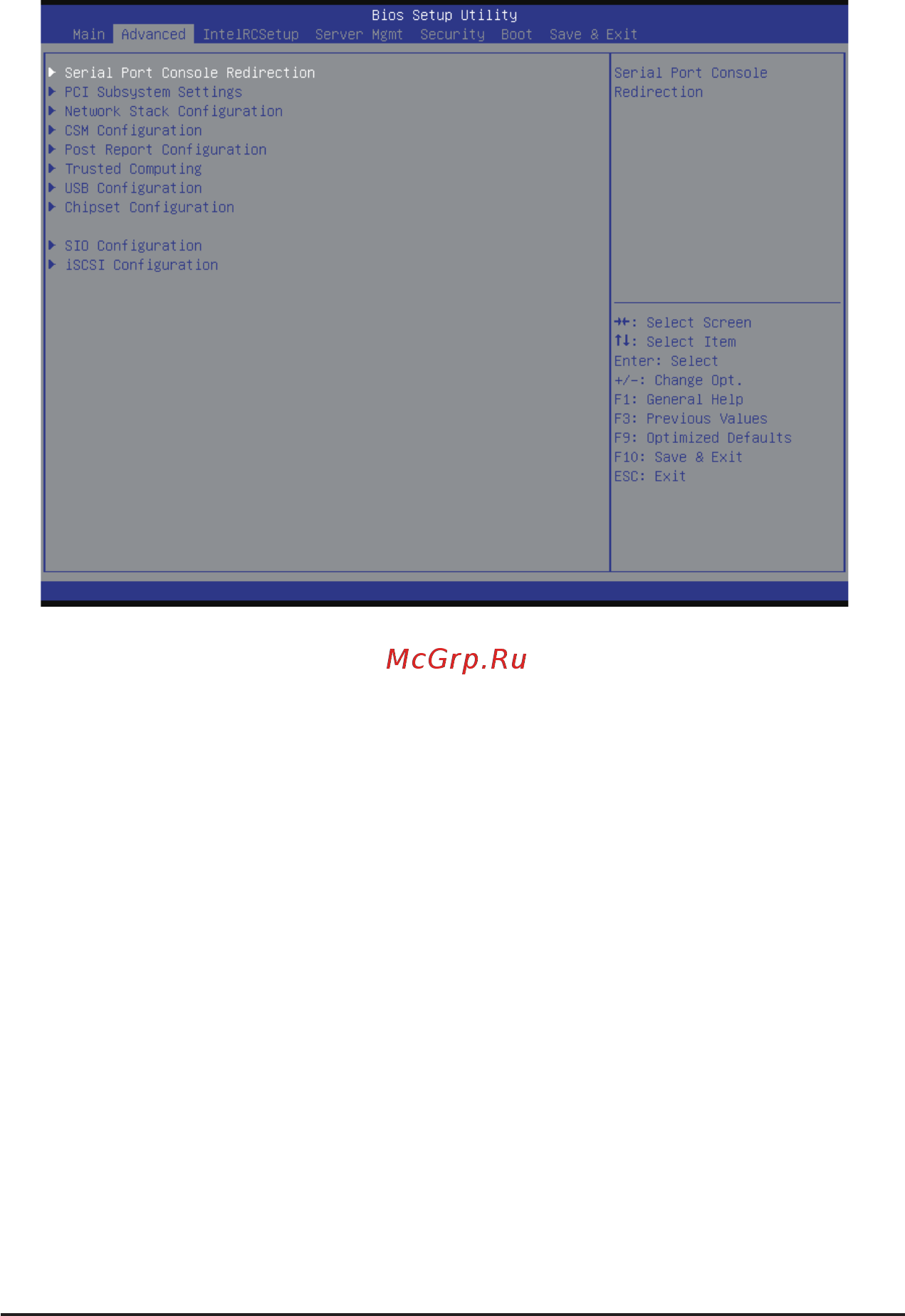

5-2 Advanced Menu

The Advanced menu display submenu options for conguring the function of various hardware components.

Select a submenu item, then press Enter to access the related submenu screen.
