Gigabyte H270-F4G (rev. 100) [20/125] 4 removing and installing the fan duct

- 20 - Hardware Installation

2-4 Removing and Installing the Fan Duct

Follow these instructions to remove/install the fan duct:

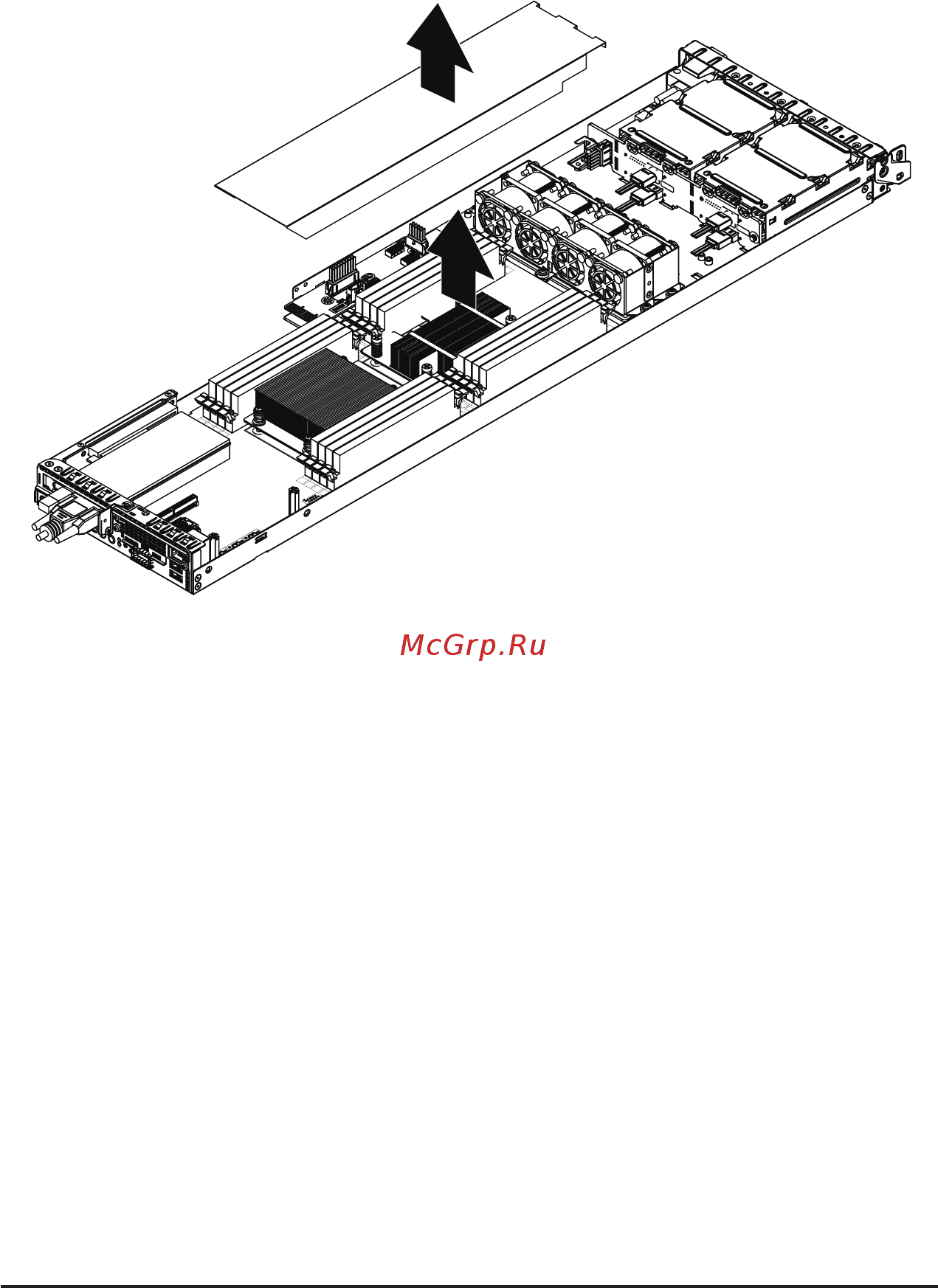

1. Lift up to remove the fan duct

2. To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into

chassis until its rmly seats
