ASRock N68-S3 UCC [14/117] English english english english english

1414

ASRock N68-GS3 UCC / N68-S3 UCC Motherboard

EnglishEnglish

English

OpenShort

Clear CMOSDefault

2.62.6

2.6

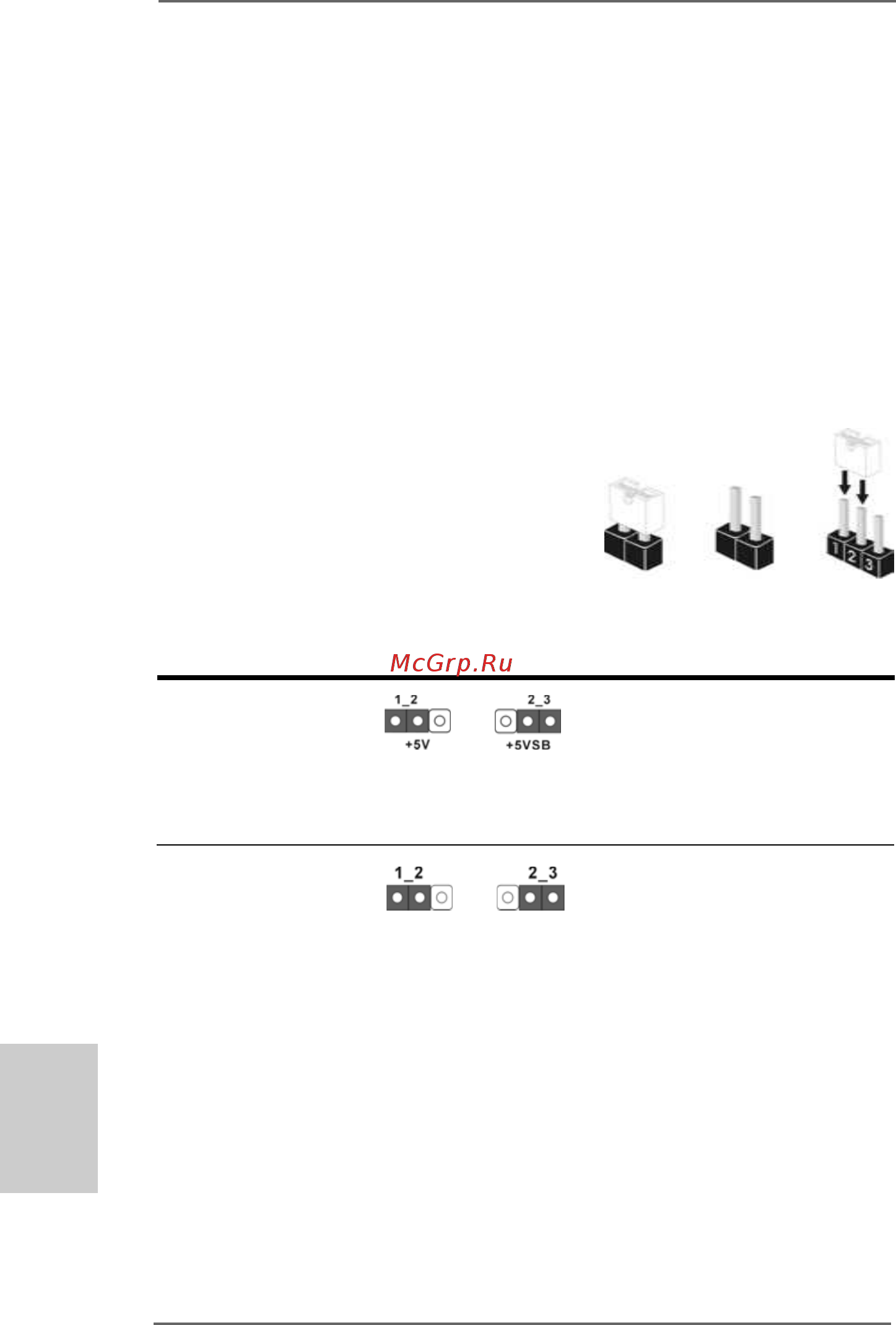

Jumpers SetupJumpers Setup

Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose pin1

and pin2 are “Short” when jumper cap is

placed on these 2 pins.

Jumper Setting

PS2_USB_PW1 Short pin2, pin3 to enable

(see p.2, No. 1) +5VSB (standby) for PS/2 or

USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 13)

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system

setup parameters. To clear and reset the system parameters to default setup,

please turn off the computer and unplug the power cord from the power

supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3

on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right

after you update the BIOS. If you need to clear the CMOS when you just finish

updating the BIOS, you must boot up the system first, and then shut it down

before you do the clear-CMOS action.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icon identified by the number

one, two and three.

6. Use Multi Monitor feature. Click and drag the display icons to positions

representing the physical setup of your monitors that you would like to use. The

placement of display icons determines how you move items from one monitor to

another.
