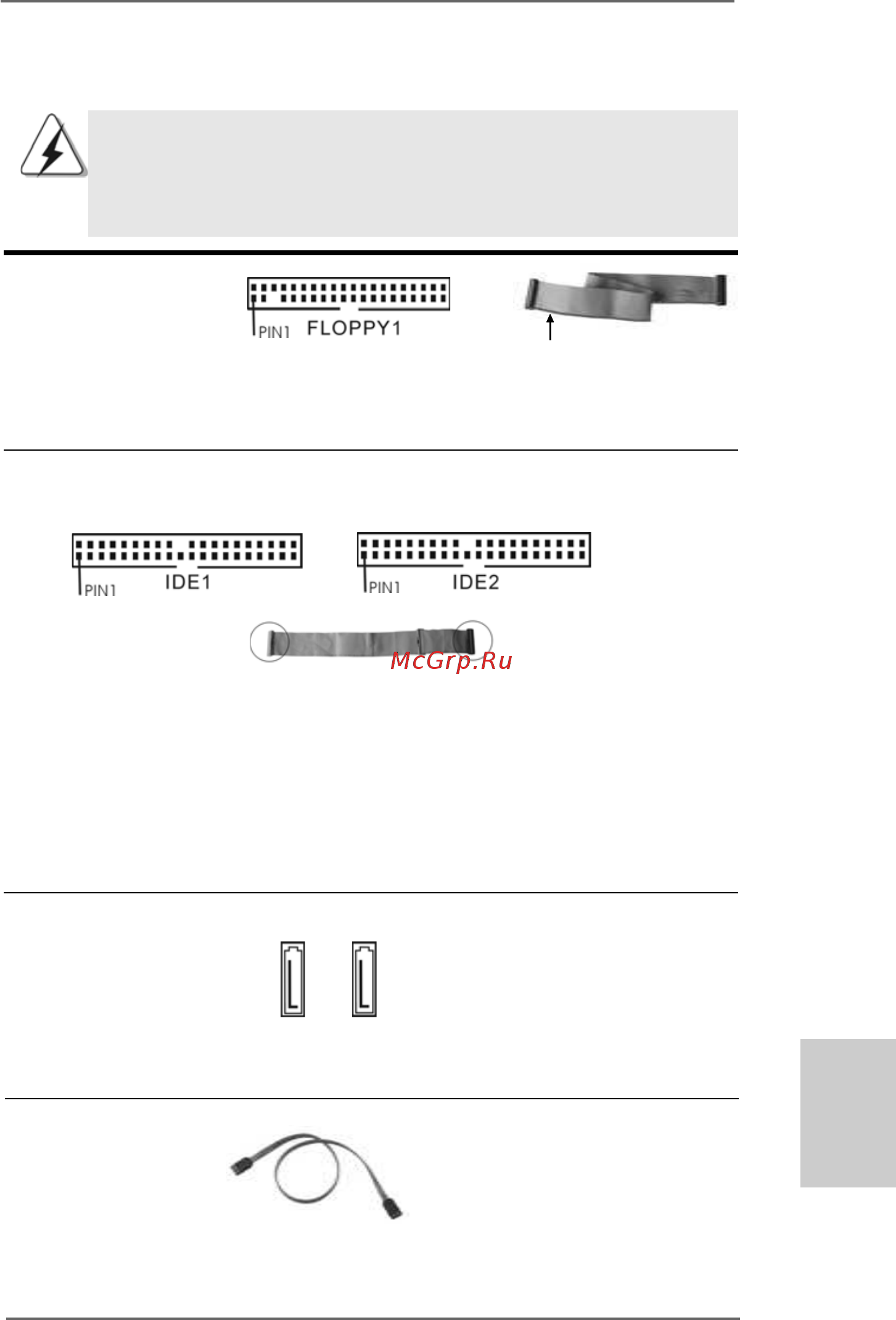

2.6 Onboard Headers and Connectors2.6 Onboard Headers and Connectors

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

•

Floppy Connector

(33-pin FLOPPY1)

(see p.2 No. 22)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE Connector (Blue) Secondary IDE Connector (Black)

(39-pin IDE1, see p.2 No. 11) (39-pin IDE2, see p.2 No. 8)

Note: If you use only one IDE device on this motherboard, please set the IDE

device as “Master”. Please refer to the instruction of your IDE device vendor

for the details. Besides, to optimize compatibility and performance, please

connect your hard disk drive to the primary IDE connector (IDE1, blue) and

CD-ROM to the secondary IDE connector (IDE2, black).

Serial ATAII Connectors These Serial ATAII (SATAII)

(SATAII_1: see p.2, No. 9) connectors support SATAII

(SATAII_2: see p.2, No. 10) or SATA hard disk for internal

storage devices. The current

SATAII interface allows up to

3.0 Gb/s data transfer rate.

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on the motherboard.

the red-striped side to Pin1

connect the black end

to the IDE devices

connect the blue end

to the motherboard

80-conductor ATA 66/100/133 cable
