ASRock ALiveNF4G-DVI Motherboard

EnglishEnglish

English

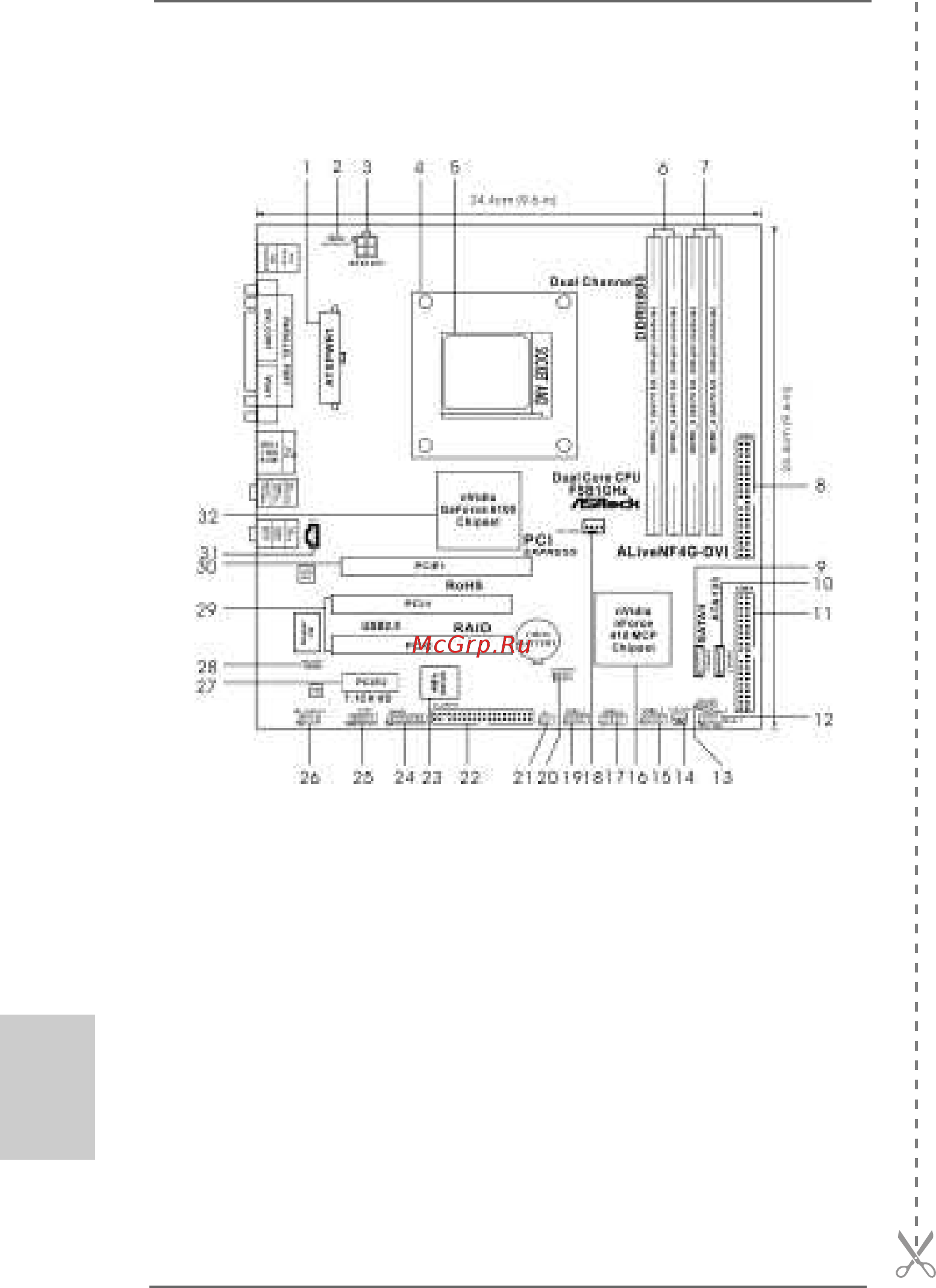

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 ATX Power Connector (ATXPWR1) 16 South Bridge Controller

2 PS2_USB_PW1 Jumper 17 USB 2.0 Header (USB4_5, Blue)

3 ATX 12V Power Connector (ATX12V1) 18 CPU Fan Connector (CPU_FAN1)

4 CPU Heatsink Retention Module 19 USB 2.0 Header (USB2_3, Blue)

5 AM2 940-Pin CPU Socket 20 Clear CMOS Jumper (CLRCMOS1)

6 2 x 240-pin DDRII DIMM Slots 21 Infrared Module Header (IR1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 22 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDRII DIMM Slots 23 Flash Memory

(Dual Channel B: DDRII_3, DDRII_4; Orange) 24 Game Port Header (GAME1)

8 Secondary IDE Connector (IDE2, Black) 25 Serial Port Connector (COM1)

9 Primary Serial ATAII Connector (SATAII_1, Red) 26 Front Panel Audio Header (HD_AUDIO1)

10 Secondary Serial ATAII Connector (SATAII_2, Red)27 PCI Express x1 Slot (PCIE2)

11 Primary IDE Connector (IDE1, Blue) 28 HDMI_SPDIF Header (HDMI_SPDIF1)

12 System Panel Header (PANEL1) 29 PCI Slots (PCI1- 2)

13 Chassis Speaker Header (SPEAKER 1) 30 PCI Express x16 Slot (PCIE1)

14 Chassis Fan Connector (CHA_FAN1) 31 Internal Audio Connector: CD1 (Black)

15 USB 2.0 Header (USB6_7, Blue) 32 North Bridge Controller
