ASRock ALiveNF4G-DVI Motherboard

EnglishEnglish

English

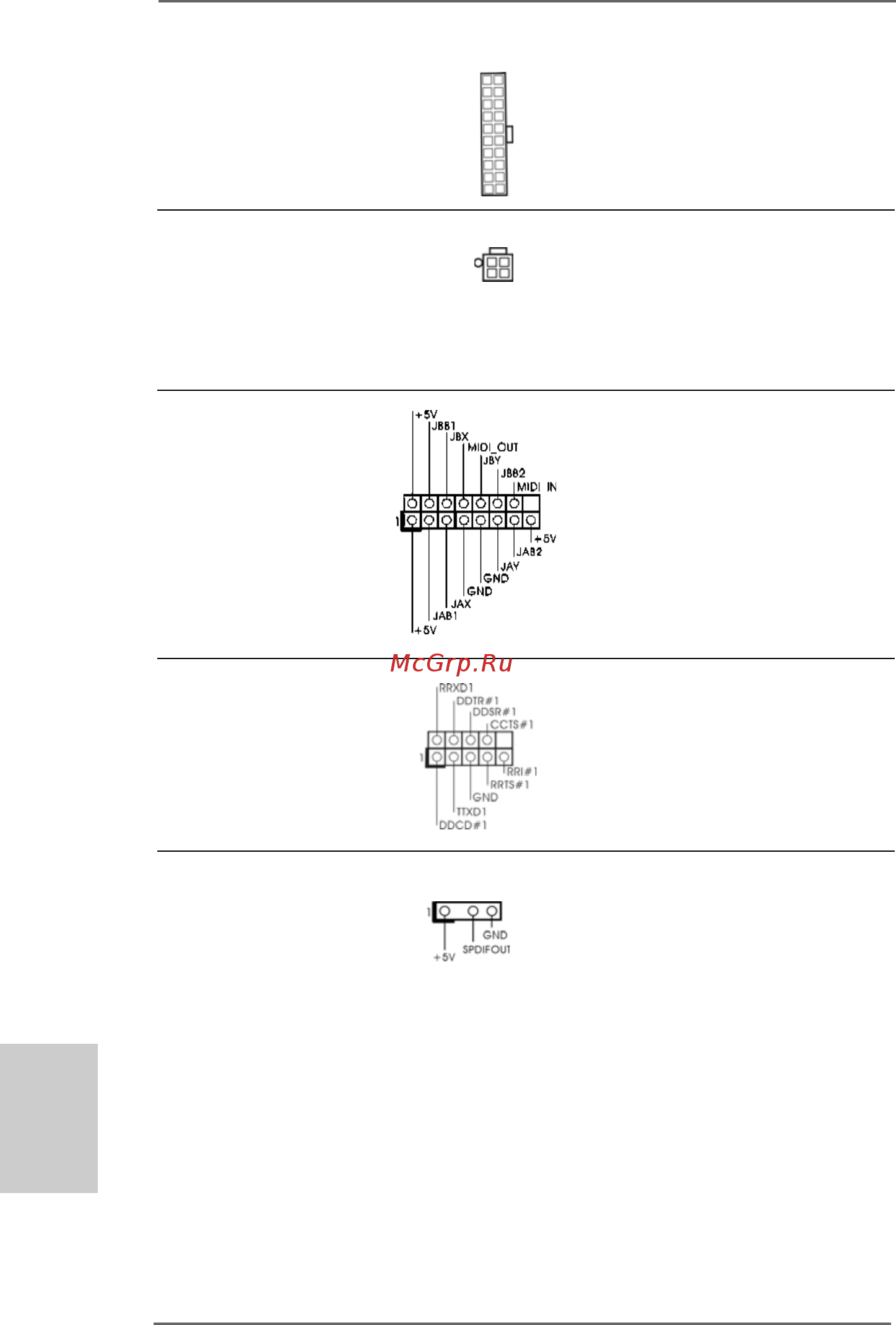

ATX Power Connector Please connect an ATX power

(20-pin ATXPWR1) supply to this connector.

(see p.2 No. 1)

ATX 12V Power Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with

(see p.2 No. 3) ATX 12V plug to this connector.

Failing to do so will cause power

up failure.

Game Port Header Connect a Game cable to this

(15-pin GAME1) header if the Game port bracket

(see p.2 No. 24) is installed.

Serial port Header This COM1 header

(9-pin COM1) supports a serial port module.

(see p.2 No.25)

HDMI_SPDIF Header HDMI_SPDIF header, providing

(3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.2 No. 28) card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.
