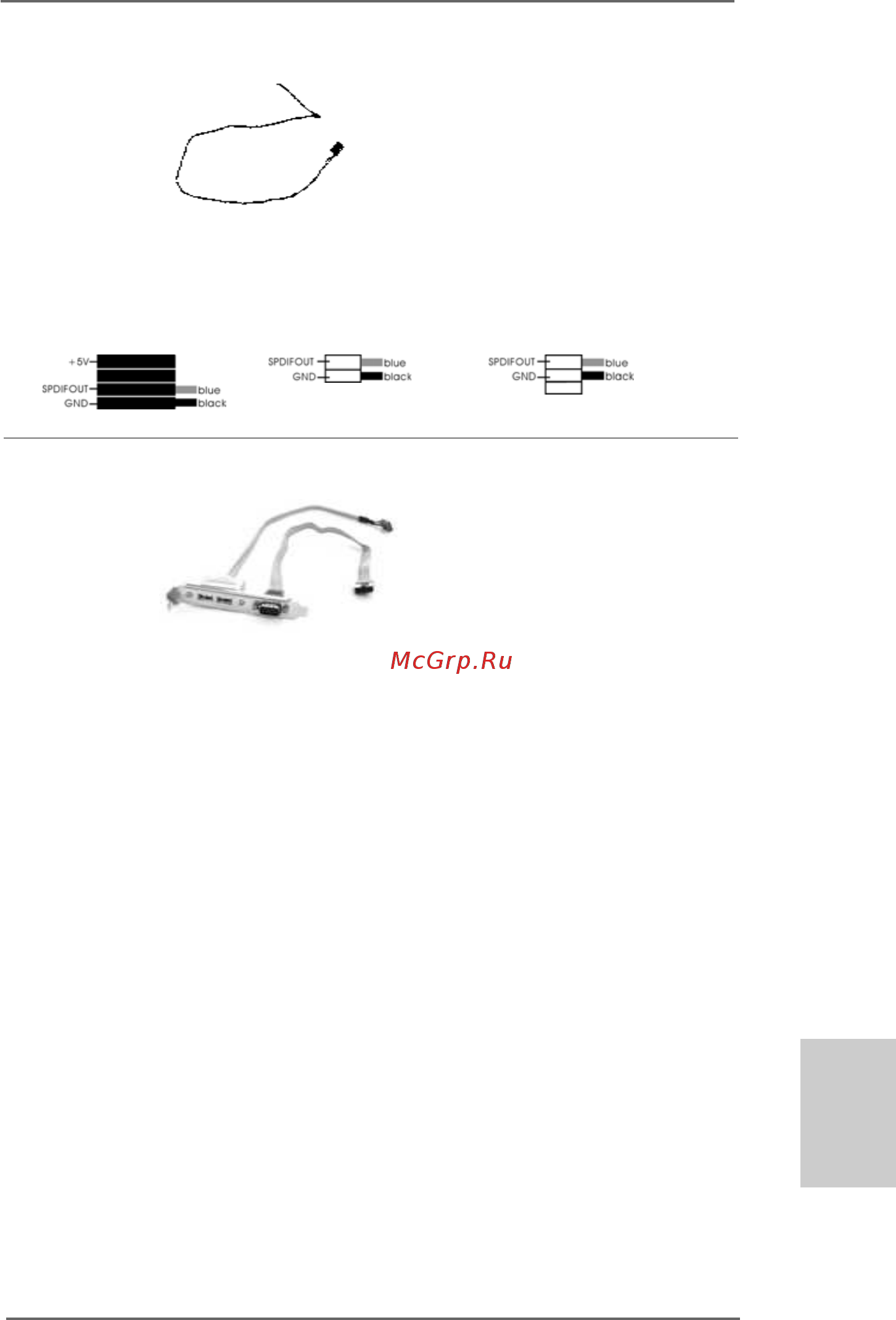

HDMI_SPDIF Cable Please connect the black end (A)

(Optional) of HDMI_SPDIF cable to the

HDMI_SPDIF header on the

motherboard. Then connect the

white end (B or C) of

HDMI_SPDIF cable to the

HDMI_SPDIF connector of HDMI

VGA card.

A. black end B. white end (2-pin) C. white end (3-pin)

USB+COM Port Bracket This USB+COM port bracket can

(Optional) support 2 additional USB 2.0

ports and 1 COM port.

Please connect the blue connec-

tor on the cable of this USB+COM

port bracket to the USB 2.0

header (USB2_3, USB4_5, or

USB6_7), and connect the black

connector on the cable of this

USB+COM port bracket to the

serial port header (COM1). Then

fasten the USB+COM port

bracket to the chassis with

screws.
