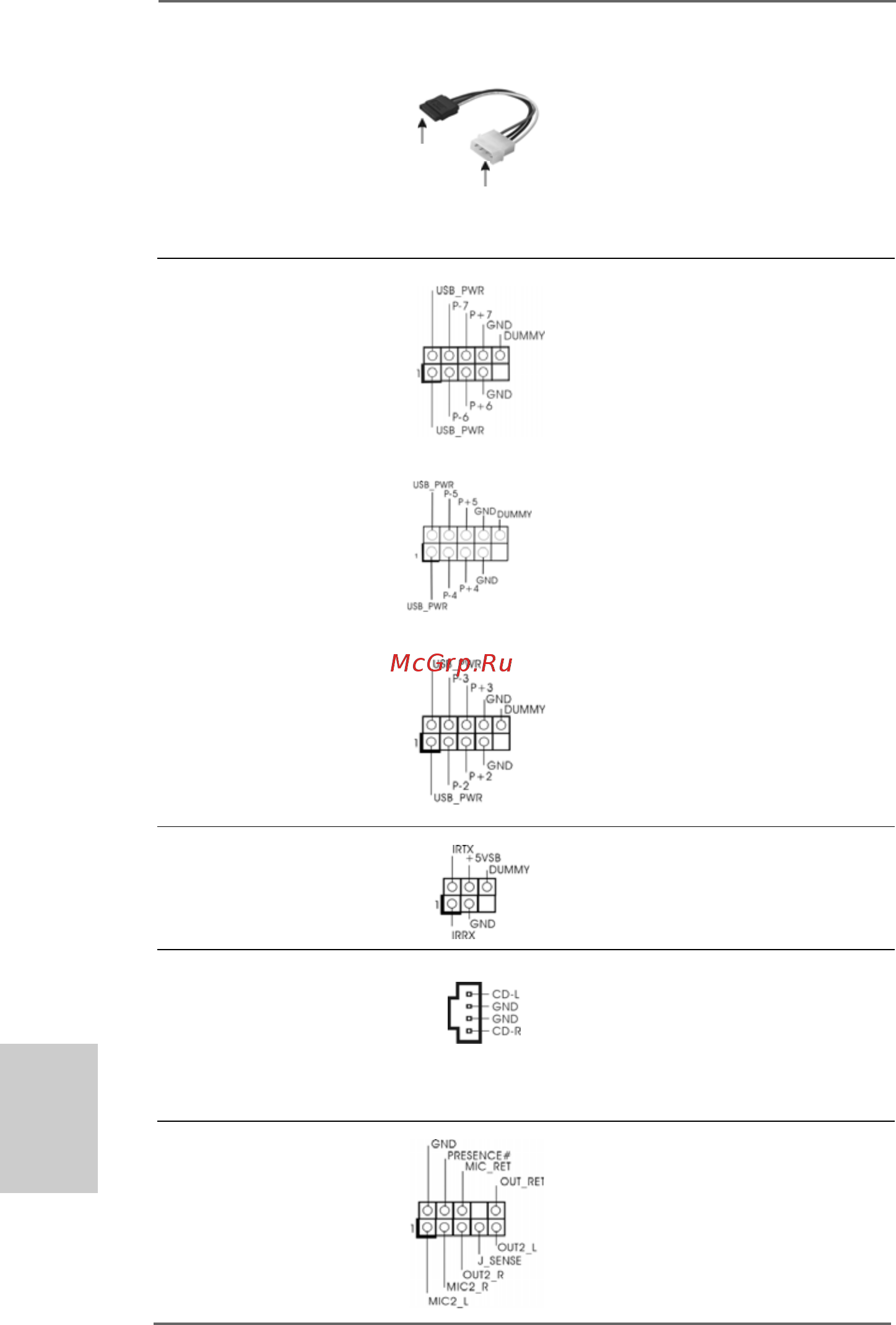

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect the white end of SATA

power cable to the power

connector of the power supply.

USB 2.0 Headers Besides two default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2 No. 15) three USB 2.0 headers on this

motherboard. Each USB 2.0

header cansupport two USB

2.0 ports.

(9-pin USB4_5)

(see p.2 No. 17)

(9-pin USB2_3)

(see p.2 No. 19)

Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.2 No. 21) and receiving infrared module.

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.2 No. 31) from sound sources such as

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

Front Panel Audio Header This is an interface for the front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2, No. 26) convenient connection and

control of audio devices.

connect to the

power supply

connect to the SATA

HDD power connector

CD1
