ASRock PV530 Motherboard

EnglishEnglish

English

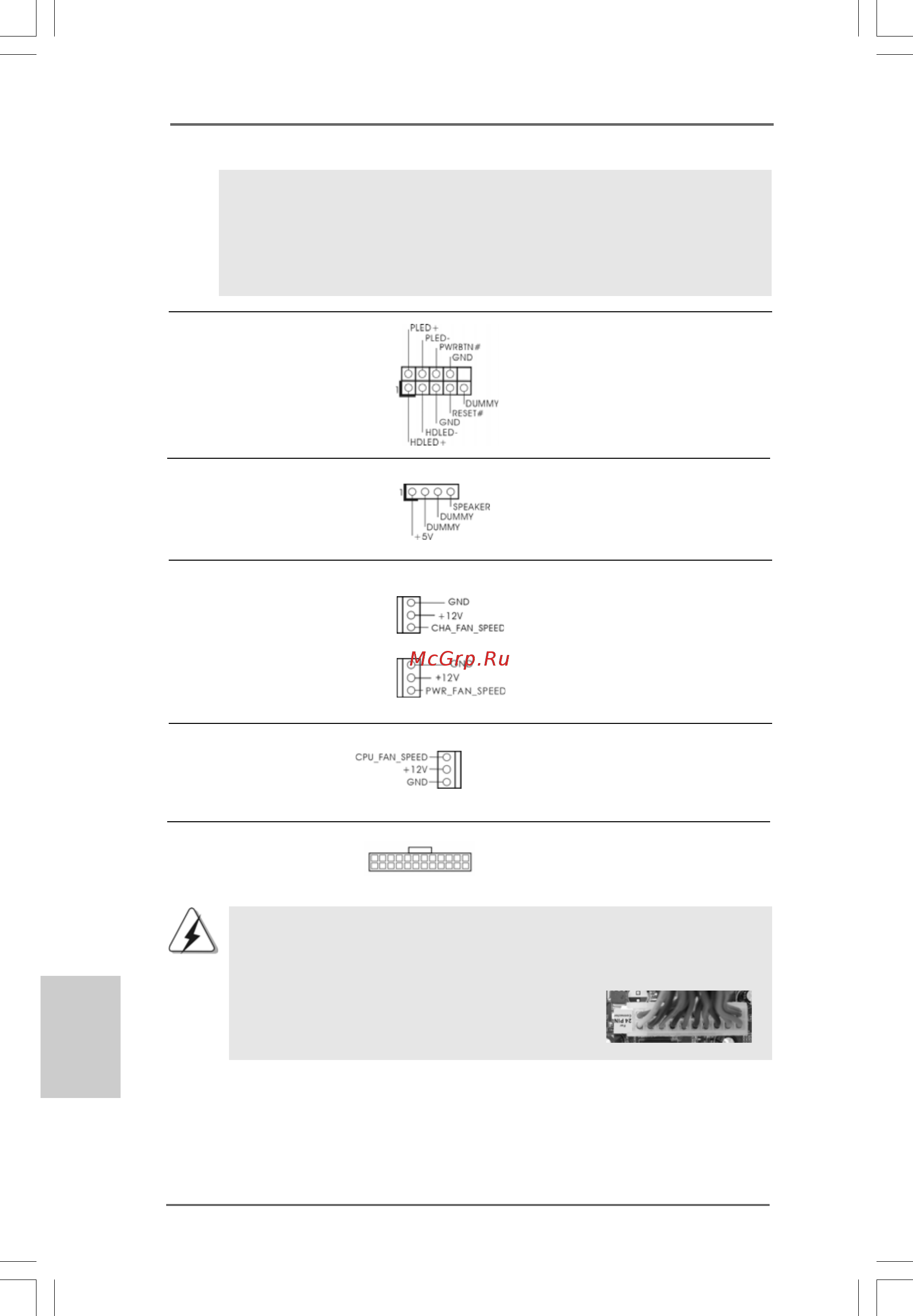

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.2 No. 12) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.2 No. 13)

Chassis and Power Fan Connectors Please connect the fan cables

(3-pin CHA_FAN1) to the fan connectors and

(see p.2 No. 11) match the black wire to the

ground pin.

(3-pin PWR_FAN1)

(see p.2 No. 1)

CPU Fan Connector Please connect a CPU fan cable

(3-pin CPU_FAN1) to this connector and match

(see p.2 No. 23) the black wire to the ground pin.

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1) supply to this connector.

(see p.2, No. 3)

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector, it can still work

if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 13.

24 13

12 1

24 13

12 1
