M8
108 109
English

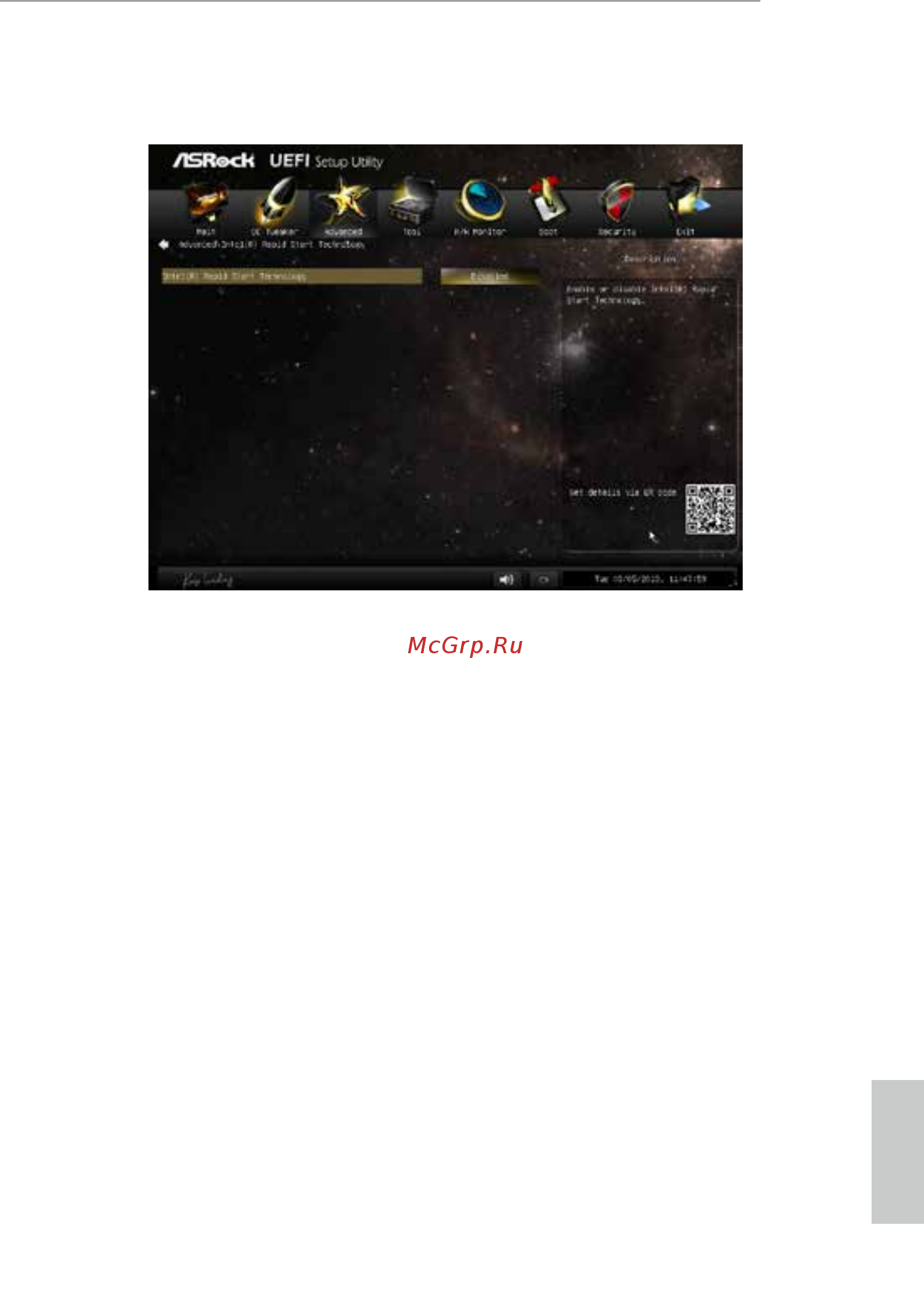

6.4.4 Intel® Rapid Start Technology
Intel
®
Rapid Start Technology
Intel® Rapid Start Technology is a new zero power hibernation mode which allows
users to resume in just 5-6 seconds.
