ASRock IMB-A182P [15/39] Atx at mode jumper
![ASRock IMB-A182P [15/39] Atx at mode jumper](/views2/1693524/page15/bgf.png)
15

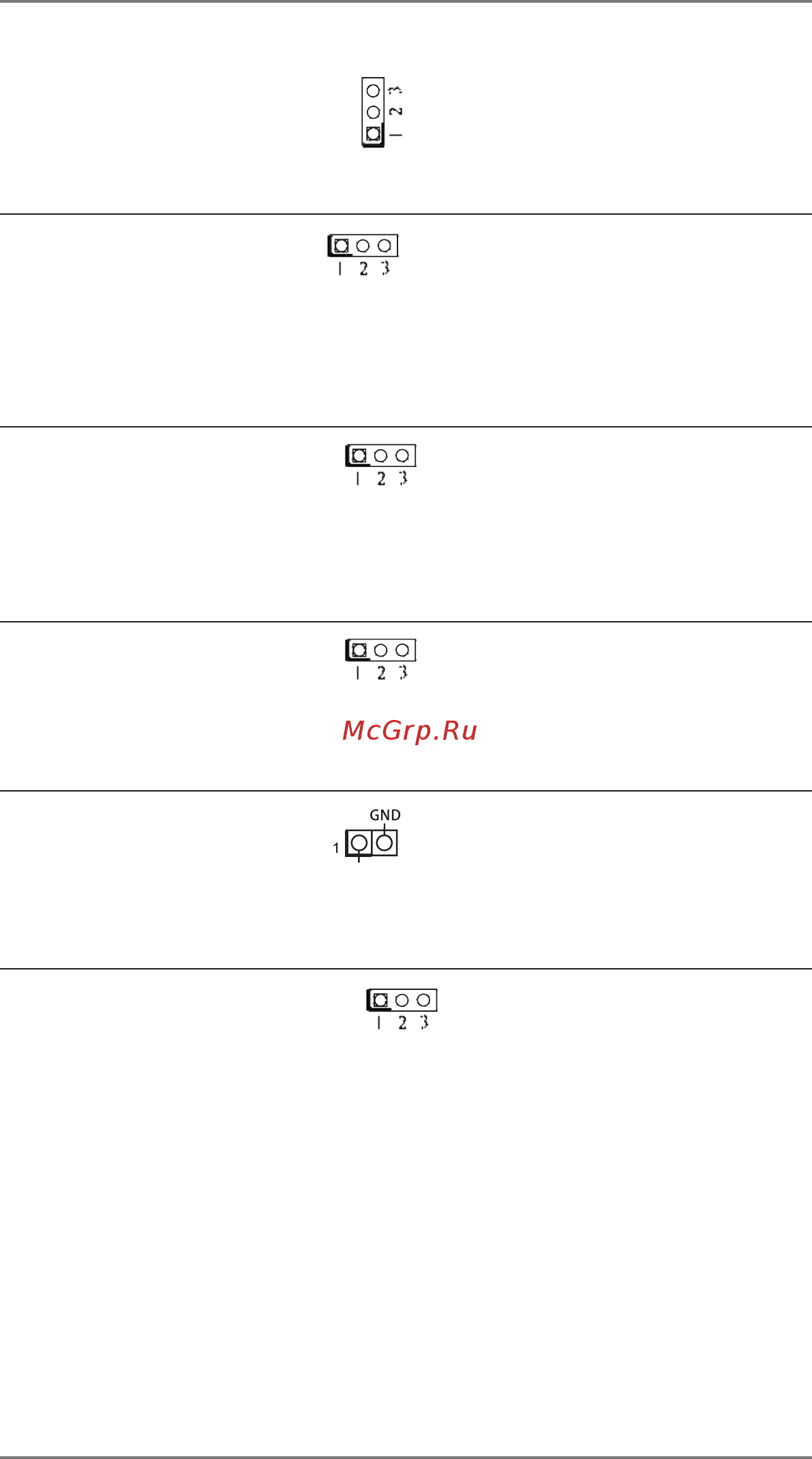

COM Port Pin9/Power
Setting Jumpers
(3-pin PWR_CM1)
(see p.8, No. 3)
(3-pin PWR_CM2)
(see p.8, No. 18)
(3-pin PWR_CM3)
(see p.8, No. 3)
(3-pin PWR_CM4)
(see p.8, No. 18)
ATX/AT Mode Jumper
1-2 : AT Mode
(3-pin PWR_JP1)
2-3 : ATX Mode
(see p.8, No. 16)
Digital Input / Output Power 1-2 : +12V
Select 2-3 : +5V
(3-pinJGPIO_PWR1)
(see p.8, No. 20)
Backlight Control Signal
Setting Jumper
(3-pin BKT_CTL1)
(see p.8, No. 4)
1-2 : +3V Level
2-3 : +5V Level
1-2 : +12V
2-3 : +5V
JGPIO_SET1
(3-pinJGPIO_SET1)
(see p.8, No. 15)
1-2 : +5V
2-3:GND
+5VSB_ATX
Power Loss Jumper
(2-pin PWR_LOSS1)
(see p.8, No. 25)
Open : Power Loss
Close : no Power Loss
