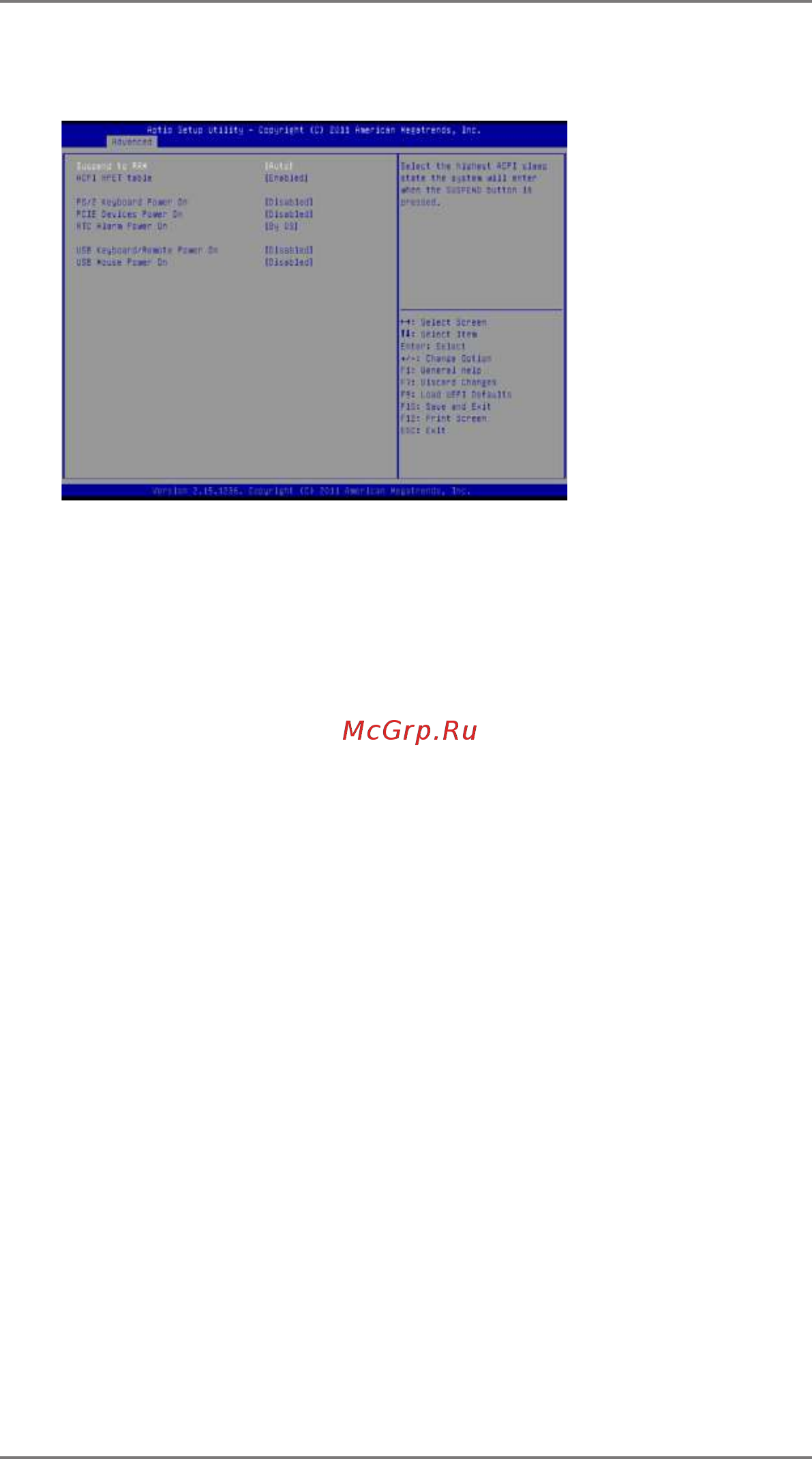

3.3.5 ACPI Conguration
Suspend to RAM
Select disable for ACPI suspend type S1. It is recommended to se-
lect auto for ACPI S3 power saving.
ACPI HPET Table
Enable the High Precision Event Timer for better performance.
PS/2 Keyboard Power On
Use this to enable or disable the PS/2 keyboard to turn on the sys-
tem from power-soft-off mode.
PCIE Devices Power On
Use this to enable or disable the PCIE devices to turn on the sys-
tem from power-soft-off mode.
RTC Alarm Power On
Use this to enable or disable the RTC (Real Time Clock) to power
on the system.
USB Keyboard/Remote Power On
Allow the system to be waked up by an USB keyboard or remote
controller.
USB Mouse Power On
Allow the system to be waked up by an USB mouse.
