ASRock IMB-A182P [16/39] Onboard headers and connectors

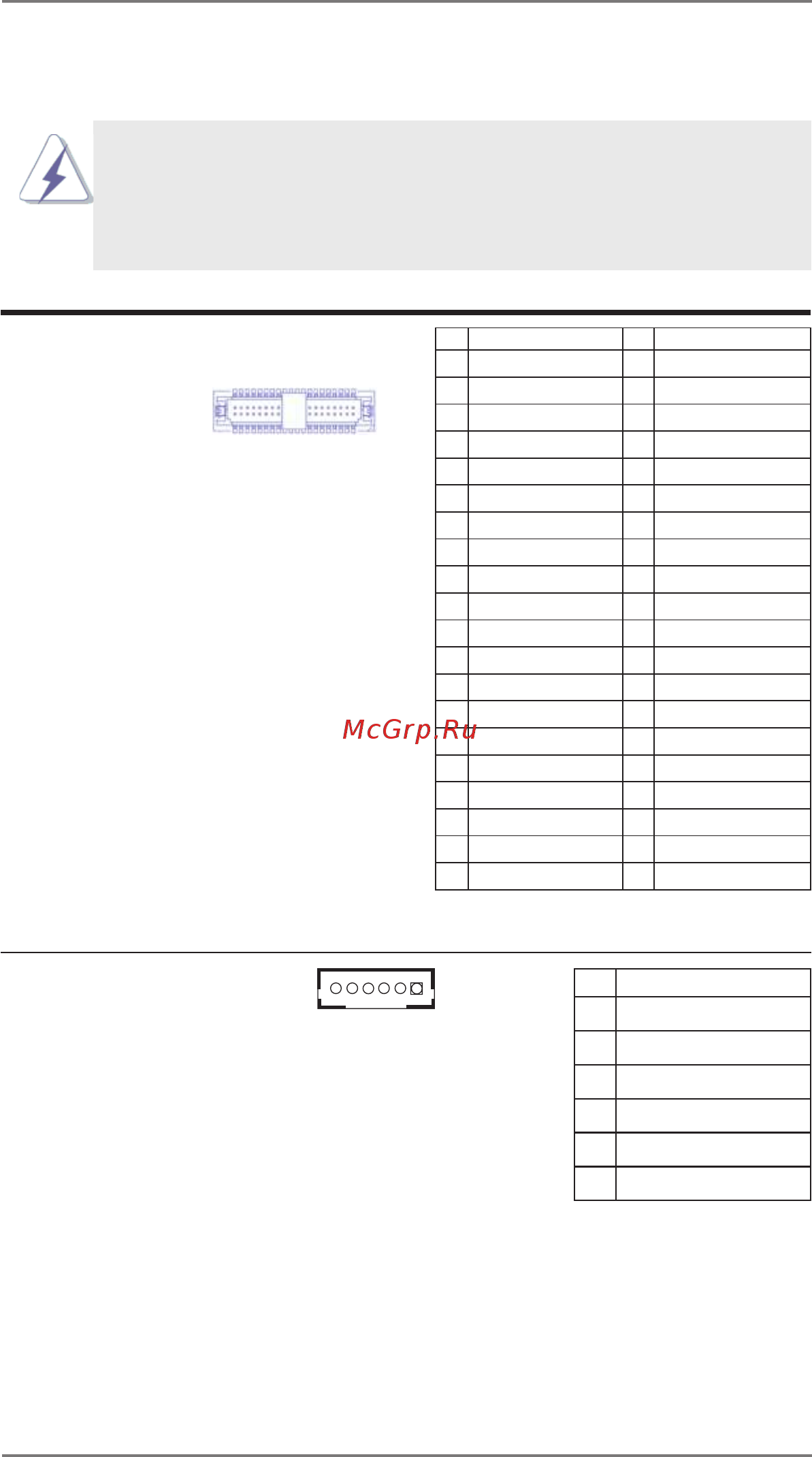

2.4 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT

place jumper caps over these headers and connectors. Plac-

ing jumper caps over the headers and connectors will cause

permanent damage to the motherboard!

LVDS Panel Connector

(40-pin LVDS1)

(see p.8, No. 29)

Inverter Power/Control

Header

(6-pin BLT_PWR1)

(see p.8, No. 5)

PIN Signal Name

1 GND

2 GND

3 B/L ADJUST

4 B/L ENABLE

5 LCD BLT VCC

6 LCD BLT VCC

PIN Signal Name PIN Signal Name

1 LVDS_PWR 2 LVDS_PWR

3 +3V 4 DDC CLK

5 DDC DATA 6 LVDS1 D0(-)

7 LVDS1 D0(+) 8 GND

9 LVDS1 D1(-) 10 LVDS1 D1(+)

11 GND 12 LVDS1 D2(-)

13 LVDS1 D2(+) 14 GND

15 LVDS1 D3(-) 16 LVDS1 D3(+)

17 GND 18 LVDS1 CLK(-)

19 LVDS1 CLK(+) 20 GND

21 LVDS2 D0(-) 22 LVDS2 D0(+)

23 GND 24 LVDS2 D1(-)

25 LVDS2 D1(+) 26 GND

27 LVDS2 D2(-) 28 LVDS2 D2(+)

29 LVDS PWR EN 30 LVDS2 D3(-)

31 LVDS2 D3(+) 32 GND

33 LVDS2 CLK(-) 34 LVDS2 CLK(+)

35 GND 36 B/L ENABLE

37 B/L ADJUST 38 BLT_PWR

39 BLT_PWR 40 BLT_PWR
