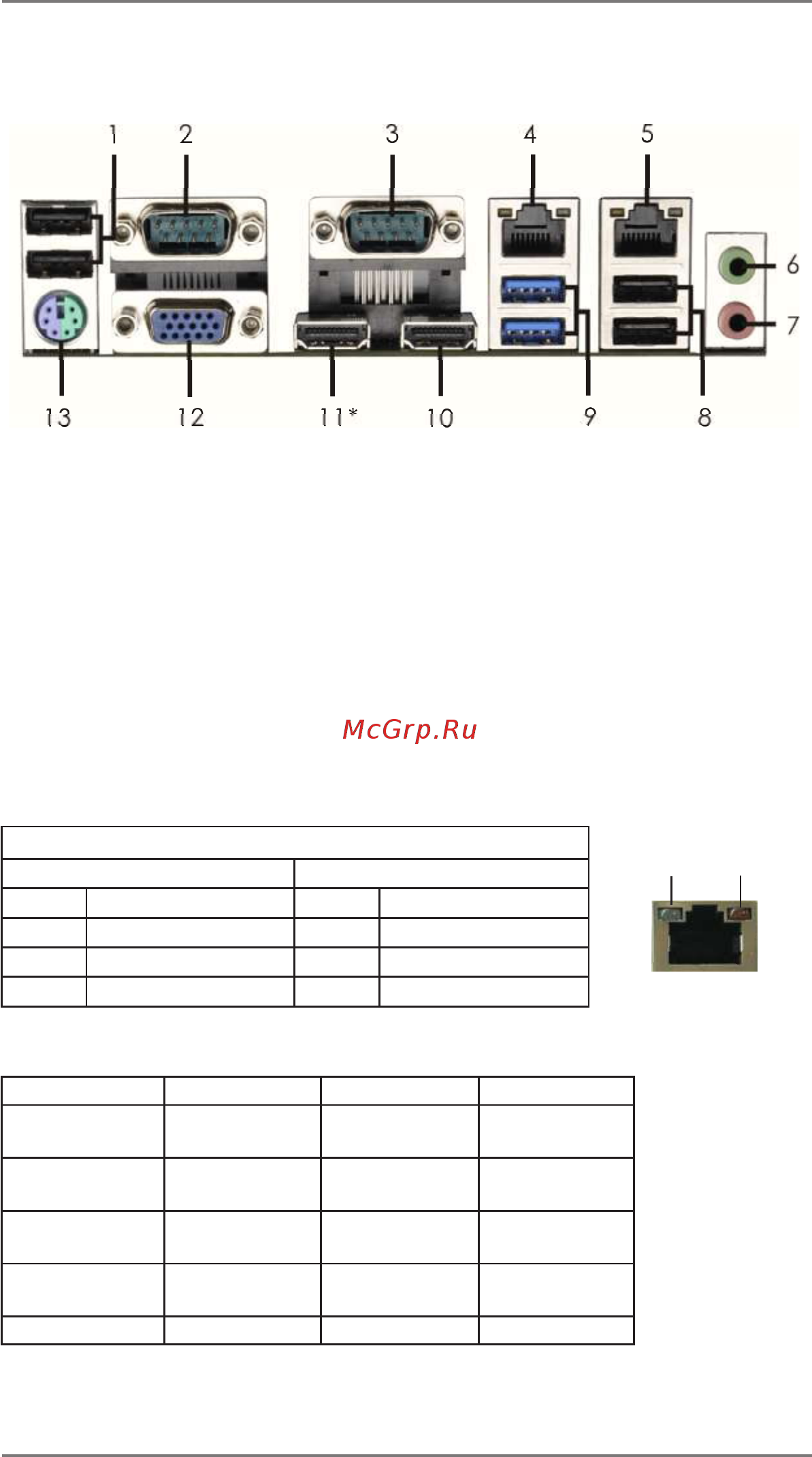

1.4 I/O Panel
1 USB 2.0 Ports (USB01)
2 Serial Port (COM1)
3 Serial Port (COM3)
4 LAN RJ-45 Port (LAN1)
5 LAN RJ-45 Port (LAN2)
6 Front Speaker (Lime)
7 Microphone (Pink)
8 USB 2.0 Ports (USB6_7)
9 USB 3.0 Ports (USB3_0_1)
10 HDMI Port (HDMI2)
11 HDMI Port (HDMI1) (Optional)*
12 D-Sub (VGA1)
13 PS/2 Keyboard/Mouse Port
There are two LEDs on each LAN port. Please refer to the table below for the LAN
port LED indications.
ACT/LINK
LED
SPEED
LED
LAN Port
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On 100Mbps connection Green 1Gbpsconnection
* HDMI1 port on the I/O panel is for IMB-A182-H only.
PIN RS232 RS422 RS485
1
DCD, Data
carrier detect
TX- RTX-
2
RXD, Receive
data
RX+ N/A
3
TXD, Transmit
data
TX+ RTX+
4
DTR, Data
terminal ready
RX- N/A
5 GND GND GND
COM1/COM3 RS232/422/485 Pin Mapping
