18
1.HighDenitionAudiosupportsJackSensing,butthepanelwireon
the chassis must support HDA to function correctly. Please follow
the instructions in our manual and chassis manual to install your
system.
2. If you use an AC’97 audio panel, please install it to the front panel
audio header by the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to
OUT2_L.
C.ConnectGround(GND)toGround(GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
For Windows
®
XP / XP 64-bit OS:
Select “Mixer”. Select “Recorder”. Then click “FrontMic”.
For Windows
®
8.1 / 8.1 64-bit / 8 / 8 64-bit / 7 / 7 64-bit /
Vista
TM
/ Vista
TM
64-bit OS:
Gotothe“FrontMic”TabintheRealtekControlpanel.Adjust
“Recording Volume”.

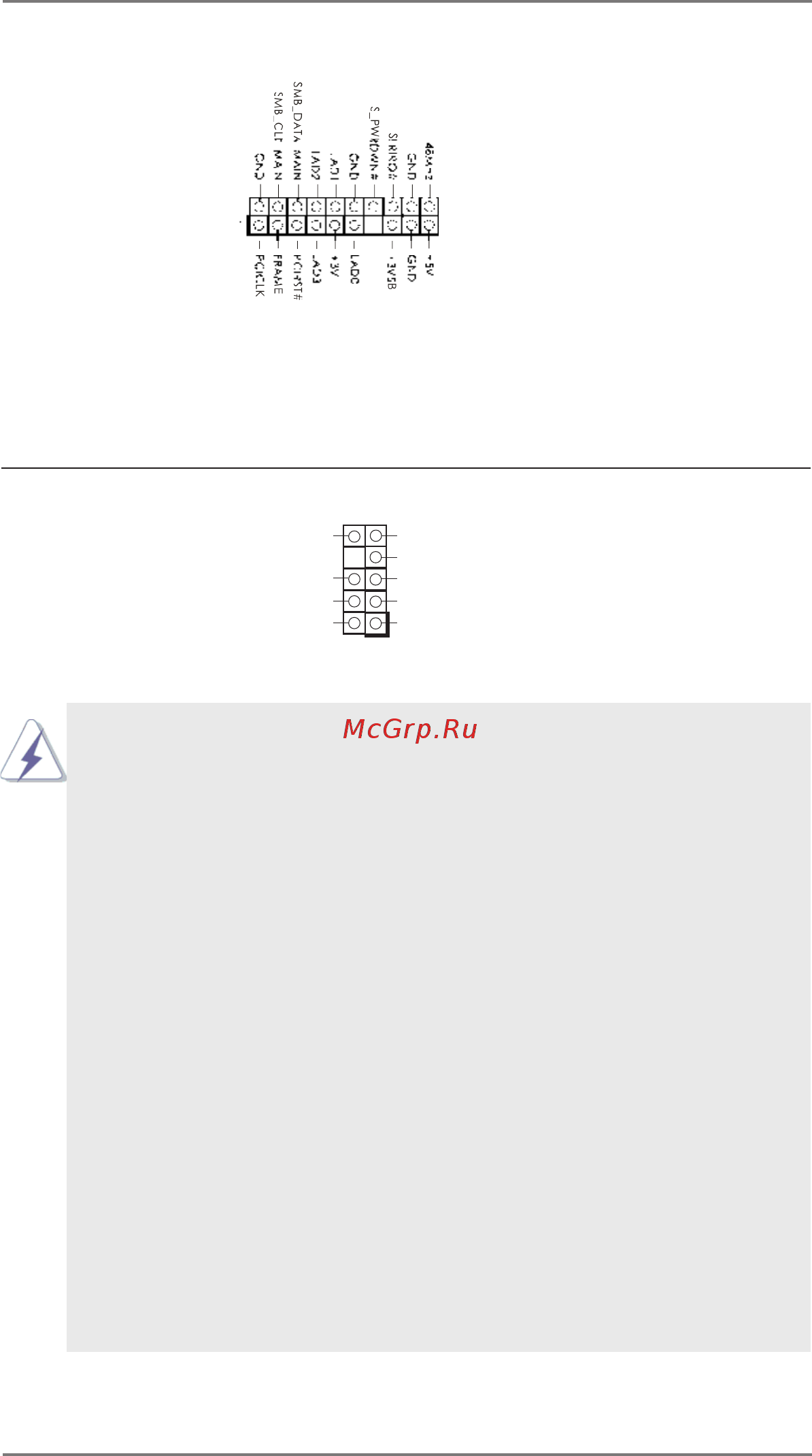

LPC Header
(19-pin LPC1)
(see p.8, No. 23)
This connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates,passwords,and
data. A TPM system also
helps enhance network se-
curity, protects digital identi-
ties, and ensures platform
integrity.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.8, No. 26)
This is an interface for the
front panel audio cable that
allows convenient connec-
tion and control of audio
devices.
J_SENSE
OUT2_L
MIC_RET
PRESENCE#
GN D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
