ASRock IMB-A182P [30/39] Super io configuration

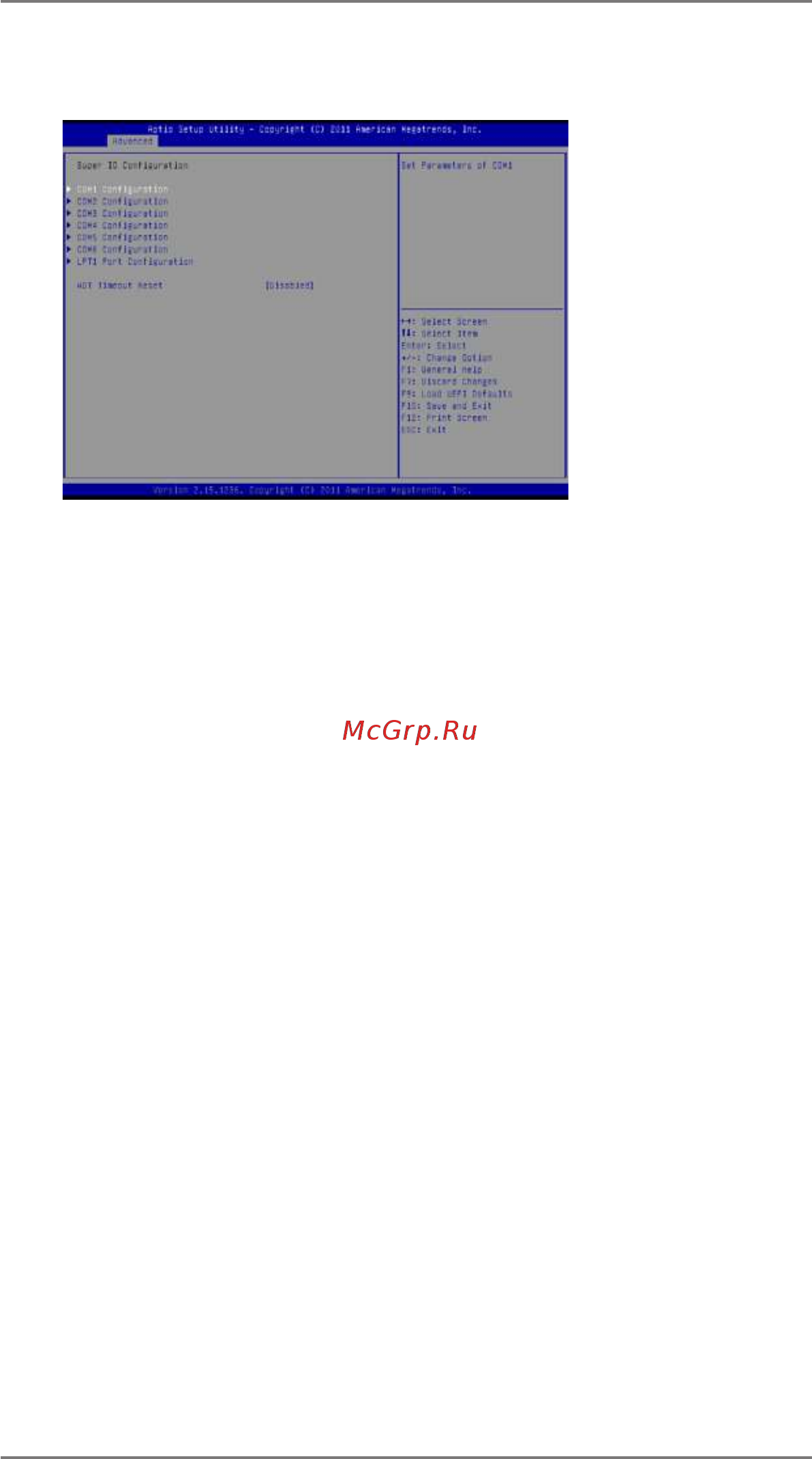

3.3.4 Super IO Conguration

COM1 Conguration

Use this to set the parameters of COM1. Select COM1 port type:

[RS232], [RS422] or [RS485].

COM2 Conguration

Use this to set the parameters of COM2.

COM3 Conguration

Use this to set the parameters of COM3. Select COM3 port type:

[RS232], [RS422] or [RS485].

COM4 Conguration

Use this to set the parameters of COM4.

COM5 Conguration

Use this to set the parameters of COM5.

COM6 Conguration

Use this to set the parameters of COM6.

LPT1 Port Conguration

Use this to set the parameters of the onboard parallel port.

WDT Timeout Reset

This allows users to enable/disable the Watch Dog Timer timeout to

reset the system. The default value is [Disabled].
